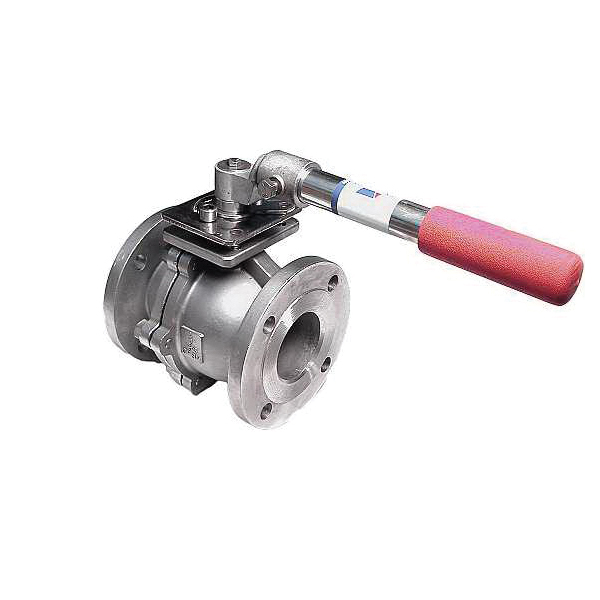

American Valve 4001 Flanged Ball Valves
Filter
The American 4001 series ball valves feature a CF8M cast 316 stainless steel body, flanged end connections, and reinforced PTFE seats. The stainless steel stem is blow-out proof. Face-to-face and flanged dimensions conform to ANSI Standard B16.10 which exactly match end to end dimensions of all cast iron gate valves and plug valves. American Valve 4001Ā ball valves have a full port opening and are available in sizes 1-1/2" though 6". The handle is lockable in both full open and full closed positions, and a mounting pad is available for easy actuation.
One unique feature is the corrosion-resistant PFA fused solid ball, which inhibits buildup of lime, calcium, sludge, preventing premature failure of valve seats. The American 4001Ā series valves can last up to 10x longer due to the PFA-coating, which is actually impregnated into the solid metal, meaning it won't chip, wear or flake off. The lubricity of the PFA-fused ball allows for lower torque ratings in any application, eliminating ball pitting and stopping premature valve failure.
Looking for other body types? The American 4000 series is also available with a ductile iron body with the 4000D SeriesĀ and a ductile iron body with the 4000 Series.
CBPN:
277175
MPN:
4001 1 1/2"
CBPN:
277177
MPN:
4001 2 1/2"
CBPN:
277176
MPN:
4001 2"
CBPN:
277178
MPN:
4001 3"
CBPN:
277179
MPN:
4001 4"
CBPN:
277180
MPN:
4001 6"
