American Valve 4001 Series 1-1/2" Ball Valve

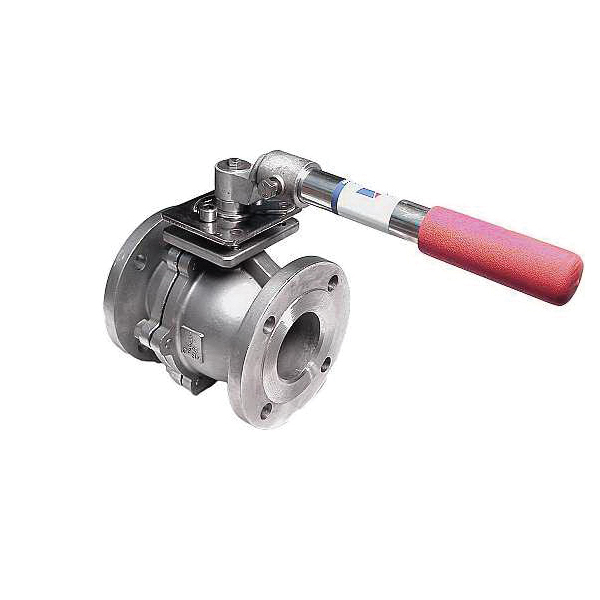

American Valve® 4001 1 1/2" Ball Valve, 1-1/2 in Nominal, Flanged End Style, Stainless Steel Body, Full Port, PTFE Softgoods, Import

CBPN:277175

UPC:611918015316

MPN:4001 1 1/2"

Price:
$830.90 / EA

DESCRIPTION

American Valve® Ball Valve, Series: 4001, 1-1/2 in Nominal, Flanged End Style, 300 psi WOG/150 psi WSP Pressure, 366 deg F, Full Port, Media: Gas, 1-1/2 in Orifice, Handle Actuator, Stainless Steel Ball, 6-1/2 in Inlet to Outlet Length, 6 in Top to Inlet Center, Stainless Steel Body, PTFE/Stainless Steel Trim, PTFE Softgoods, Import

Investment cast 316 stainless steel with all stainless steel top works even the handle. Other 4001 features such as full port, low torque and the corrosion-resistance of our PFA fused stainless steel ball make this valve a winner.

American Valve® 4001 1 1/2" Ball Valve, 1-1/2 in Nominal, Flanged End Style, Stainless Steel Body, Full Port, PTFE Softgoods, Import

CBPN:277175

MPN:4001 1 1/2"

UPC:611918015316

Price:
$830.90 / EA

American Valve Logo

DESCRIPTION

American Valve® Ball Valve, Series: 4001, 1-1/2 in Nominal, Flanged End Style, 300 psi WOG/150 psi WSP Pressure, 366 deg F, Full Port, Media: Gas, 1-1/2 in Orifice, Handle Actuator, Stainless Steel Ball, 6-1/2 in Inlet to Outlet Length, 6 in Top to Inlet Center, Stainless Steel Body, PTFE/Stainless Steel Trim, PTFE Softgoods, Import

Investment cast 316 stainless steel with all stainless steel top works even the handle. Other 4001 features such as full port, low torque and the corrosion-resistance of our PFA fused stainless steel ball make this valve a winner.

Specifications

BrandAmerican Valve®
Weight18.1 lbs
Nominal Size1-1/2 in
End StyleFlanged
Pressure Rating300 psi WOG/150 psi WSP
Body MaterialStainless Steel
Port TypeFull
Softgoods MaterialPTFE
Actuator TypeHandle
Ball MaterialStainless Steel
Inlet to Outlet Length6-1/2 in
Manufacturer NameAmerican Valve
MediaGas
Orifice Size1-1/2 in
Series4001
Temperature Rating366 deg F
Top to Inlet Center6 in
Trim MaterialPTFE/Stainless Steel
ApplicationGas, HVAC, Industrial, Irrigation, Plumbing, Wastewater Plants and Water Treatment
Warranty1 year
Domestic/ImportImport
Country of OriginIN
Standards and ApprovalsANSI B16.5 | API 607 | ASTM A351 Grade CF8M/A276 316/D3294 | AWWA C507-99 | Federal Specification WW-V-35 | MSS SP-72 | NSF/ANSI 372/61

Item Features

  • PFA fused solid ball
  • Blow-out proof stainless steel stem
  • Reinforced PTFE seat
  • Full opening for unrestricted flow
  • Lockable in full open or closed positions
  • API 607 fire safe design
  • Mounting pad for easy actuation
  • Adjustable length/removable handles to fit into areas of limited space
  • PTFE packing/gasket
