American Valve 4000 Flanged Ball Valves
Filter

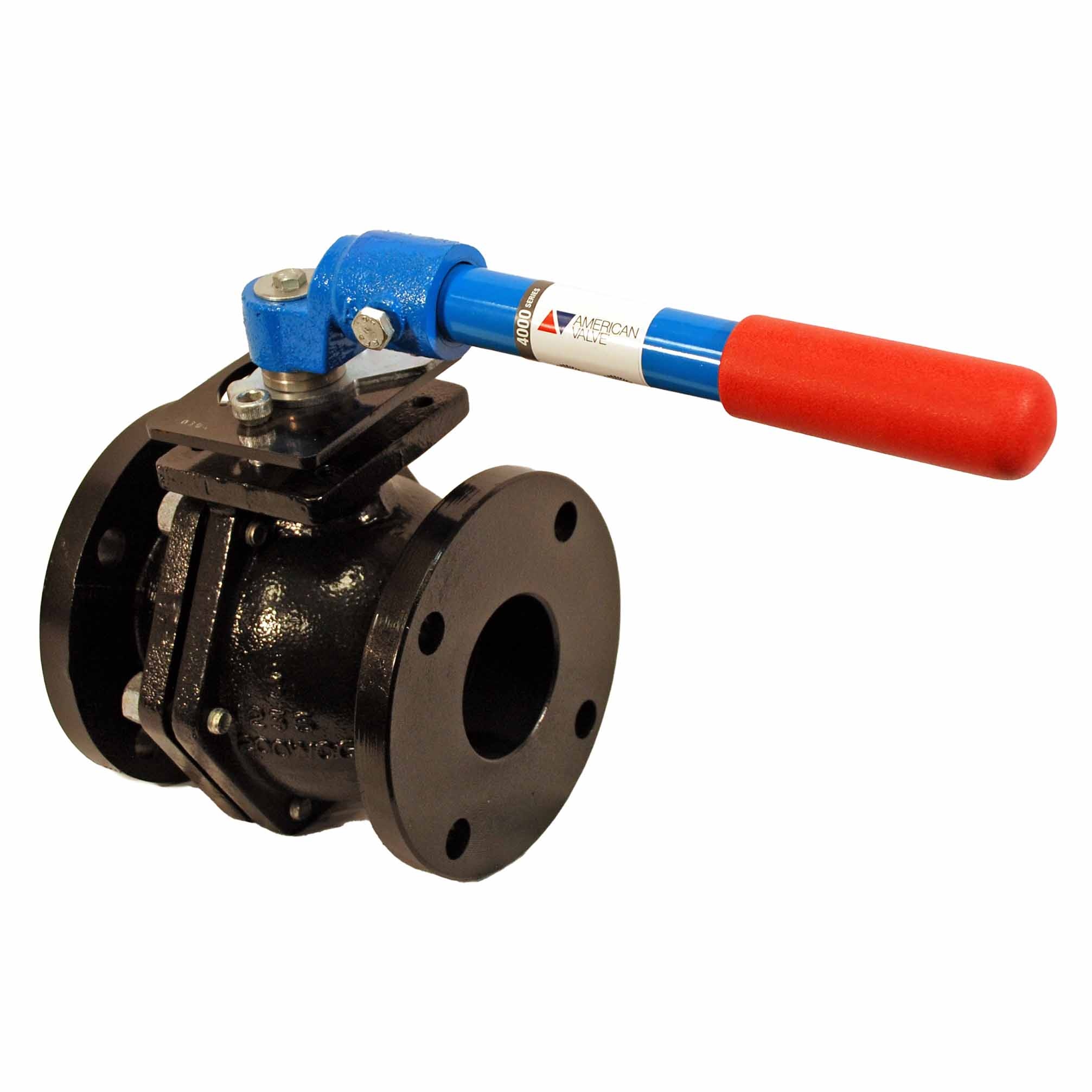

The American 4000 series ball valves feature an A126 Class B cast iron body, flanged end connections, and reinforced PTFE seats. The stainless steel stem is blow-out proof. Face-to-face and flanged dimensions conform to ANSI Standard B16.10 which exactly match end to end dimensions of all cast iron gate valves and plug valves. American Valve 4000 Ball Valves are available in sizes 1/2" though 10", however it is only full port up to 6". The handle is lockable in both full open and full closed positions, and an ISO mounting pad is available for easy actuation.
One unique feature is the corrosion-resistant PFA fused solid ball, which inhibits buildup of lime, calcium, sludge, preventing premature failure of valve seats. The American 4000 series valves can last up to 10x longer due to the PFA-coating, which is actually impregnated into the solid metal, meaning it won't chip, wear or flake off. The lubricity of the PFA-fused ball allows for lower torque ratings in any application, eliminating ball pitting and stopping premature valve failure.Ā
Looking for other body types? The American 4000 series is also available with a ductile iron body with the 4000D SeriesĀ and a stainless steel body with the 4001 Series.
CBPN:
277165
MPN:
4000 6"
CBPN:
277160
MPN:
4000 1 1/2"
CBPN:
277159
MPN:
4000 1"
CBPN:
277157
MPN:
4000 1/2"
CBPN:
277162
MPN:
4000 2 1/2"
CBPN:
277161
MPN:
4000 2"
CBPN:
277163
MPN:
4000 3"
CBPN:
277158
MPN:
4000 3/4"
CBPN:
277164
MPN:
4000 4"
CBPN:
277166
MPN:
4000 8"
