American 4000 Series 4" Ball Valve

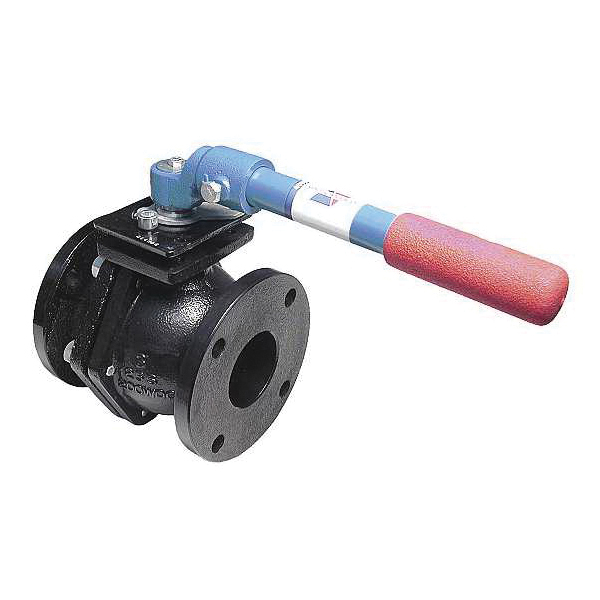

American Valve® 4000 4" Ball Valve, 4 in Nominal, Flanged End Style, Cast Iron Body, Full Port, PTFE Softgoods, Import

CBPN:277164

UPC:611918003542

MPN:4000 4"

Price:
$654.50 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

DESCRIPTION

American Valve® Ball Valve, Series: 4000, 4 in Nominal, Flanged End Style, 200 psi WOG/125 psi WSP Pressure, 353 deg F, Full Port, Media: Gas, 4 in Orifice, Handle Actuator, Cast Iron Ball, 9 in Inlet to Outlet Length, 9 in Top to Inlet Center, Cast Iron Body, PTFE/Stainless Steel Trim, PTFE Softgoods, Import

Replaces any gate valve or eccentric plug valve. Same end-to-end dimensions, but with the convenience of quarter-turn, dramatically lower torque and the corrosion-resistance of PFA fused 0.008 in into the solid iron ball. A revolution in ball valve technology.

American Valve® 4000 4" Ball Valve, 4 in Nominal, Flanged End Style, Cast Iron Body, Full Port, PTFE Softgoods, Import

CBPN:277164

MPN:4000 4"

UPC:611918003542

Price:
$654.50 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

American Valve Logo

DESCRIPTION

American Valve® Ball Valve, Series: 4000, 4 in Nominal, Flanged End Style, 200 psi WOG/125 psi WSP Pressure, 353 deg F, Full Port, Media: Gas, 4 in Orifice, Handle Actuator, Cast Iron Ball, 9 in Inlet to Outlet Length, 9 in Top to Inlet Center, Cast Iron Body, PTFE/Stainless Steel Trim, PTFE Softgoods, Import

Replaces any gate valve or eccentric plug valve. Same end-to-end dimensions, but with the convenience of quarter-turn, dramatically lower torque and the corrosion-resistance of PFA fused 0.008 in into the solid iron ball. A revolution in ball valve technology.

Specifications

BrandAmerican Valve®
Weight83 lbs
Nominal Size4 in
End StyleFlanged
Pressure Rating200 psi WOG/125 psi WSP
Body MaterialCast Iron
Port TypeFull
Softgoods MaterialPTFE
Actuator TypeHandle
Ball MaterialCast Iron
Inlet to Outlet Length9 in
Manufacturer NameAmerican Valve
MediaGas
Orifice Size4 in
Series4000
Temperature Rating353 deg F
Top to Inlet Center9 in
Trim MaterialPTFE/Stainless Steel
ApplicationGas, HVAC, Industrial, Irrigation, Plumbing, Wastewater Plants and Water Treatment
Warranty1 year
Domestic/ImportImport
Country of OriginIN
Standards and ApprovalsANSI B16.10 | ASTM A126 Class B/A48 Class 35/SA 479-10a/D4894/D3294 | AWWA C507-99 | cULus Listed | Federal Specification WW-V-35 | MSS SP-72 | NSF/ANSI 372/61

Item Features

  • PFA fused solid ball
  • Blow-out proof stainless steel stem
  • Reinforced PTFE seat
  • Face to face and flanged dimensions conform to ANSI B16.10 which exactly match end to end dimensions of all cast iron gate valves and plug valves
  • Lockable in full open or closed positions
  • Mounting pad for easy actuation
  • Adjustable length/removable handles to fit into areas of limited space
  • Full port through 6 in
  • PTFE packing/seat O-ring
