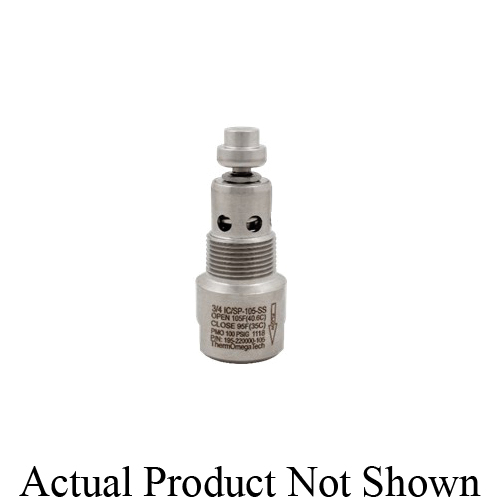

ThermOmegaTech® 195-220000-095 IC/SP Interchangeable Cartridge Scald Protection Valve, Activates at Temperature 95 deg F Open/85 deg F Close, 3/4 in Inlet, 1.4 in Dia x 3.53 in L, 300 Series Stainless Steel
CBPN:257945
MPN:195-220000-095
DESCRIPTION
ThermOmegaTech® Scald Protection Valve, Interchangeable Cartridge, Series: IC/SP, Activates at: 95 deg F Open/85 deg F Close, 3/4 in Inlet, 3.53 in Length, 1.4 in Diameter, 300 Series Stainless Steel, Model 3/4 IC/SP-095-SS
IC/SP interchangeable cartridge style thermostatic Scald Protection Valve protects facility personnel from excessively hot temperatures being released from safety showers, facewash and eyewash stations. The IC/SP valve should be installed within the heated system and is purely water temperature sensing. The valve will initiate flow when the thermostatic actuator senses water temperature above the valve's set point (typically 98 deg F [36.7 deg C]) and will remain open as long as the discharge water temperature is within 10 deg F of the open set point (typically above 95 deg F [35 deg C]). The thermal actuator is always wetted, making this valve preferable for heat traced lines where scald protection flow is not required unless heat tracing fails.
ThermOmegaTech® 195-220000-095 IC/SP Interchangeable Cartridge Scald Protection Valve, Activates at Temperature 95 deg F Open/85 deg F Close, 3/4 in Inlet, 1.4 in Dia x 3.53 in L, 300 Series Stainless Steel
CBPN:257945
MPN:195-220000-095
DESCRIPTION
ThermOmegaTech® Scald Protection Valve, Interchangeable Cartridge, Series: IC/SP, Activates at: 95 deg F Open/85 deg F Close, 3/4 in Inlet, 3.53 in Length, 1.4 in Diameter, 300 Series Stainless Steel, Model 3/4 IC/SP-095-SS
IC/SP interchangeable cartridge style thermostatic Scald Protection Valve protects facility personnel from excessively hot temperatures being released from safety showers, facewash and eyewash stations. The IC/SP valve should be installed within the heated system and is purely water temperature sensing. The valve will initiate flow when the thermostatic actuator senses water temperature above the valve's set point (typically 98 deg F [36.7 deg C]) and will remain open as long as the discharge water temperature is within 10 deg F of the open set point (typically above 95 deg F [35 deg C]). The thermal actuator is always wetted, making this valve preferable for heat traced lines where scald protection flow is not required unless heat tracing fails.
Specifications
Item Features
- Self-operating, no external power source required
- Protects safety showers from over-temperature conditions, keeping personnel safe
- Exclusive self-actuating Thermoloid® wax blend thermal actuator
- Stainless steel body, fittings and plugs
- Designed to be tee's into larger diameter pipe lines
