ThermOmegaTech IC/SP Valve, Brass

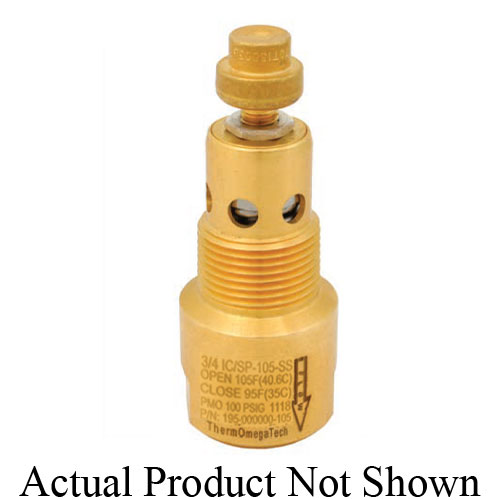

ThermOmegaTech® 195-000000-105 IC/SP Interchangeable Cartridge Scald Protection Valve, Activates at Temperature 105 deg F Open/95 deg F Close, 3/4 in Inlet, 1.4 in Dia x 3.53 in L, Brass

CBPN:257420

MPN:195-000000-105

Price:
$226.00 / EA
Prop 65:

DESCRIPTION

ThermOmegaTech® Scald Protection Valve, Interchangeable Cartridge, Series: IC/SP, Activates at: 105 deg F Open/95 deg F Close, 3/4 in Inlet, 3.53 in Length, 1.4 in Diameter, Brass, Model 3/4 IC/SP-105

IC/SP interchangeable cartridge style thermostatic Scald Protection Valve protects facility personnel from excessively hot temperatures being released from safety showers, facewash and eyewash stations. The IC/SP valve should be installed within the heated system and is purely water temperature sensing. The valve will initiate flow when the thermostatic actuator senses water temperature above the valve's set point (typically 98 deg F [36.7 deg C]) and will remain open as long as the discharge water temperature is within 10 deg F of the open set point (typically above 95 deg F [35 deg C]). The thermal actuator is always wetted, making this valve preferable for heat traced lines where scald protection flow is not required unless heat tracing fails.

ThermOmegaTech® 195-000000-105 IC/SP Interchangeable Cartridge Scald Protection Valve, Activates at Temperature 105 deg F Open/95 deg F Close, 3/4 in Inlet, 1.4 in Dia x 3.53 in L, Brass

CBPN:257420

MPN:195-000000-105

Price:
$226.00 / EA

Prop 65:
ThermOmegaTech

DESCRIPTION

ThermOmegaTech® Scald Protection Valve, Interchangeable Cartridge, Series: IC/SP, Activates at: 105 deg F Open/95 deg F Close, 3/4 in Inlet, 3.53 in Length, 1.4 in Diameter, Brass, Model 3/4 IC/SP-105

IC/SP interchangeable cartridge style thermostatic Scald Protection Valve protects facility personnel from excessively hot temperatures being released from safety showers, facewash and eyewash stations. The IC/SP valve should be installed within the heated system and is purely water temperature sensing. The valve will initiate flow when the thermostatic actuator senses water temperature above the valve's set point (typically 98 deg F [36.7 deg C]) and will remain open as long as the discharge water temperature is within 10 deg F of the open set point (typically above 95 deg F [35 deg C]). The thermal actuator is always wetted, making this valve preferable for heat traced lines where scald protection flow is not required unless heat tracing fails.

Specifications

BrandThermOmegaTech®
Weight0.5 lbs
Activates at Temperature105 deg F Open/95 deg F Close
Diameter1.4 in
Inlet Size3/4 in
Length3.53 in
MaterialBrass
SeriesIC/SP
TypeInterchangeable Cartridge
Manufacturer NameThermOmegaTech
IncludesPTFE Seal
ApplicationFor safety showers, facewash or eyewash stations, eyewash stations and other locations exposed to the same source of overheating as the system
Country of OriginUS
Standards and ApprovalsANSI Z358.1 | PROP65: This product can expose you to chemicals, for example lead, nickel, acrylonitrile, which are known to the State of CA to cause cancer, birth defects or reproductive harm. For more information, go to www.P65Warnings.ca.gov

Item Features

  • Self-operating, no external power source required
  • Protects safety showers from over-temperature conditions, keeping personnel safe
  • Exclusive self-actuating Thermoloid® wax blend thermal actuator
  • Brass body, fittings and plugs
  • Designed to be tee's into larger diameter pipe lines
