Spirax Sarco 1793290 FTS62-46 High Pressure Right to Left Flow Float and Thermostatic Steam Trap, 1/2 in Nominal, FNPT End Style, 0 to 425 deg C, 667 psig Pressure, Stainless Steel
CBPN:271666
MPN:1793290
DESCRIPTION
Spirax Sarco Ball Float and Thermostatic Steam Trap, High Pressure Right to Left Flow, Series: FTS62-46, 1/2 in Nominal, NPT End Style, 190 mm Length, 667 psig Pressure, Stainless Steel, 0 to 425 deg C, 287.5 mm W x 239 mm H Dimensions
The FTS62 is a stainless steel bodied Ball Float Steam Trap having stainless steel working internals and automatic air venting facility.

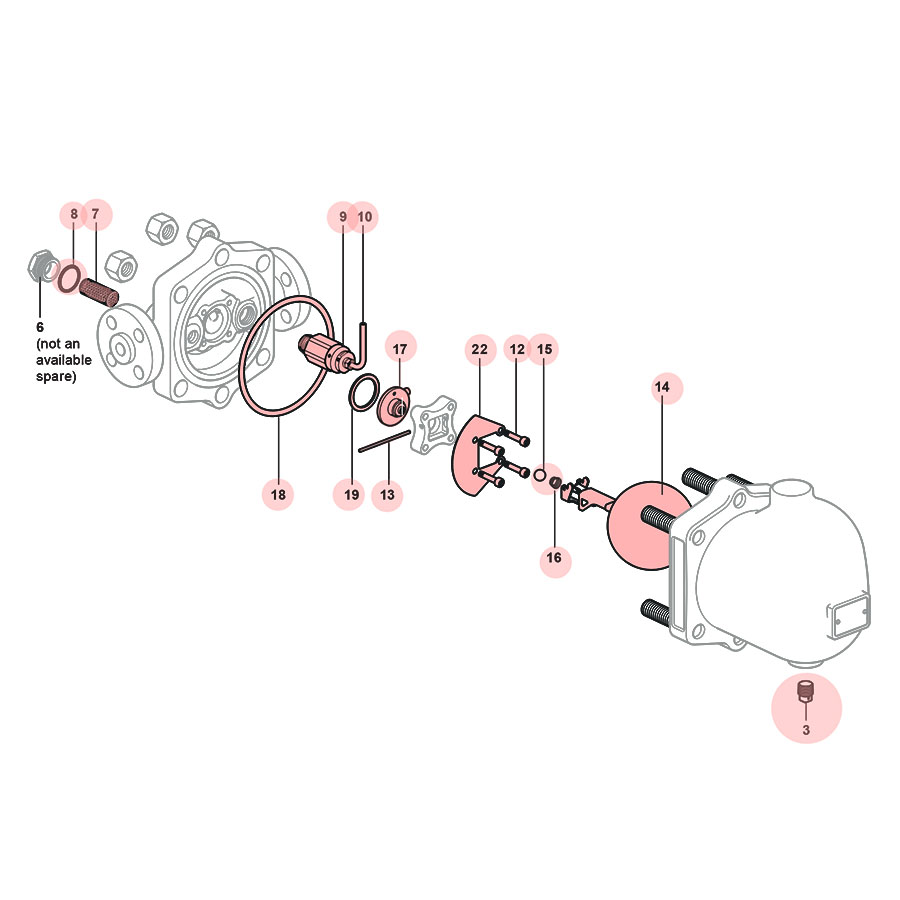

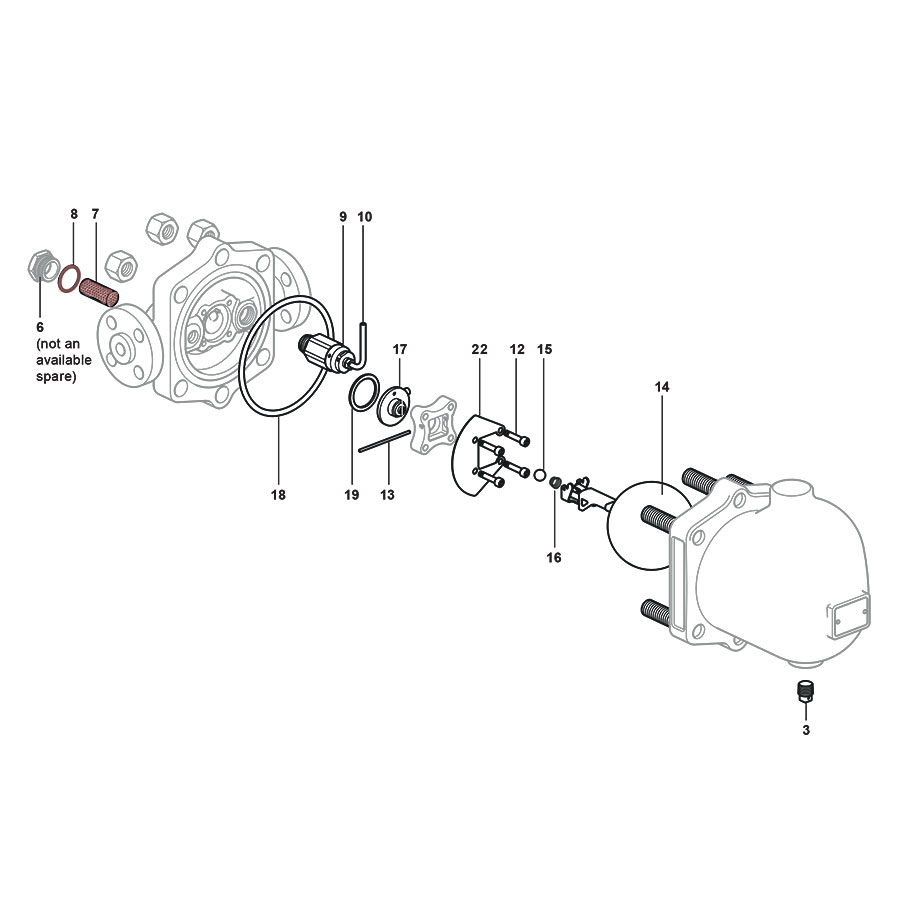

The Spirax FTS62 Steam Trap must be installed with the direction of flow as indicated on the body (left to right, or right to left), and with the float arm in a horizontal plane so that it rises and falls vertically. It is also recommended to install a strainer upstream of the trap. The system must undergo regular maintenance to ensure the steam quality is to industry standard. Spirax Sarco FTS62 Steam Traps can be serviced without disrupting piping connections as long as it is fully isolated from both the supply and return lines. Any worn or damaged components should be replaced. Spirax FTS62 spare parts include a Body/Cover Gasket Kit, Strainer Screen and Gasket, Maintenance Kit, Overhaul Kit, and Air Vent Assembly with Air Vent Tube.
Spirax Sarco 1793290 FTS62-46 High Pressure Right to Left Flow Float and Thermostatic Steam Trap, 1/2 in Nominal, FNPT End Style, 0 to 425 deg C, 667 psig Pressure, Stainless Steel
CBPN:271666
MPN:1793290
DESCRIPTION
Spirax Sarco Ball Float and Thermostatic Steam Trap, High Pressure Right to Left Flow, Series: FTS62-46, 1/2 in Nominal, NPT End Style, 190 mm Length, 667 psig Pressure, Stainless Steel, 0 to 425 deg C, 287.5 mm W x 239 mm H Dimensions
The FTS62 is a stainless steel bodied Ball Float Steam Trap having stainless steel working internals and automatic air venting facility.
The Spirax FTS62 Steam Trap must be installed with the direction of flow as indicated on the body (left to right, or right to left), and with the float arm in a horizontal plane so that it rises and falls vertically. It is also recommended to install a strainer upstream of the trap. The system must undergo regular maintenance to ensure the steam quality is to industry standard. Spirax Sarco FTS62 Steam Traps can be serviced without disrupting piping connections as long as it is fully isolated from both the supply and return lines. Any worn or damaged components should be replaced. Spirax FTS62 spare parts include a Body/Cover Gasket Kit, Strainer Screen and Gasket, Maintenance Kit, Overhaul Kit, and Air Vent Assembly with Air Vent Tube.
Specifications
Item Features
- Solutions to suit a range of applications
- Improve operational efficiency
