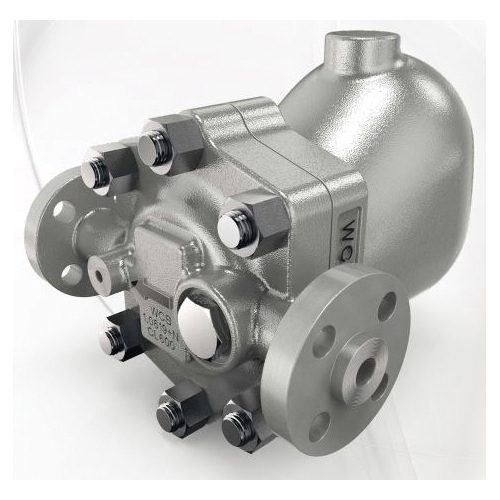

Spirax Sarco FTS62 F&T Steam Trap

Spirax Sarco 1792366 FTC62-62 High Pressure Right to Left Flow Float and Thermostatic Steam Trap, 1/2 in Nominal, Flanged End Style, 0 to 425 deg C, 900 psig Pressure, Carbon Steel

CBPN:271652

MPN:1792366

Price:
$6018.74 / EA

DESCRIPTION

Spirax Sarco Ball Float and Thermostatic Steam Trap, High Pressure Right to Left Flow, Series: FTC62-62, 1/2 in Nominal, Flanged End Style, 261 mm Length, 900 psig Pressure, Carbon Steel, 0 to 425 deg C, 299 mm W x 239 mm H Dimensions

The FTC62 is a carbon steel bodied Ball Float Steam Trap having stainless steel working internals and automatic air venting facility.

The Spirax FTC62 Steam Trap must be installed with the direction of flow as indicated on the body (left to right, or right to left), and with the float arm in a horizontal plane so that it rises and falls vertically. It is also recommended to install a strainer upstream of the trap. The system must undergo regular maintenance to ensure the steam quality is to industry standard. Spirax Sarco FTC62 Steam Traps can be serviced without disrupting piping connections as long as it is fully isolated from both the supply and return lines. Any worn or damaged components should be replaced. Spirax FTC62 spare parts include a Body/Cover Gasket Kit, Strainer Screen and Gasket, Maintenance Kit, Overhaul Kit, and Air Vent Assembly with Air Vent Tube.

Spirax Sarco 1792366 FTC62-62 High Pressure Right to Left Flow Float and Thermostatic Steam Trap, 1/2 in Nominal, Flanged End Style, 0 to 425 deg C, 900 psig Pressure, Carbon Steel

CBPN:271652

MPN:1792366

Price:
$6018.74 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Ball Float and Thermostatic Steam Trap, High Pressure Right to Left Flow, Series: FTC62-62, 1/2 in Nominal, Flanged End Style, 261 mm Length, 900 psig Pressure, Carbon Steel, 0 to 425 deg C, 299 mm W x 239 mm H Dimensions

The FTC62 is a carbon steel bodied Ball Float Steam Trap having stainless steel working internals and automatic air venting facility.

The Spirax FTC62 Steam Trap must be installed with the direction of flow as indicated on the body (left to right, or right to left), and with the float arm in a horizontal plane so that it rises and falls vertically. It is also recommended to install a strainer upstream of the trap. The system must undergo regular maintenance to ensure the steam quality is to industry standard. Spirax Sarco FTC62 Steam Traps can be serviced without disrupting piping connections as long as it is fully isolated from both the supply and return lines. Any worn or damaged components should be replaced. Spirax FTC62 spare parts include a Body/Cover Gasket Kit, Strainer Screen and Gasket, Maintenance Kit, Overhaul Kit, and Air Vent Assembly with Air Vent Tube.

Specifications

BrandSpirax Sarco
Weight53 lbs
Nominal Size1/2 in
End StyleANSI 600 Flange
Max Operating Pressure62 bar
Max Allowable Pressure102 barg/up to 38 deg C
Max Allowable Temperature425 deg C/up to 57.5 barg
MaterialCarbon Steel
Dimensions299 mm W x 239 mm H
Length261 mm
Manufacturer NameSpirax-Sarco Inc
SeriesFTC62-62
TypeHigh Pressure Right to Left Flow
ApplicationFor applications that require fast and efficient condensate removal
Standards and ApprovalsANSI Class 600 | ASME B16.5 | ASTM A216 Grade WCB | CE Certified | EN 10204 3.1 | European Pressure Equipment Directive

Item Features

  • Solutions to suit a range of applications
  • Improve operational efficiency
