Spears® 1621-010CSR Y-Check Valve, 1 in, Special Reinforced FNPT, CPVC Body, Domestic
CBPN:260230
UPC:054211450260
MPN:1621-010CSR
DESCRIPTION

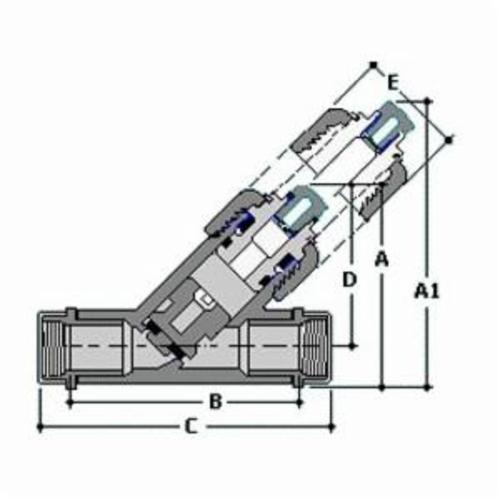

Spears® Y-Check Valve, 1 in Nominal, Special Reinforced FNPT, 150 psi, 200 deg F, 6-15/16 in Inlet to Outlet Length, 3-5/8 in Top to Inlet Center, CPVC Body, CPVC Trim, EPDM/FKM O-Ring, Seat, Gray, Domestic
Spears® Y-Check valves are an angle type check valve that automatically stops reverse flow by the dead weight of the disc plug. Y-checks are less affected by turbulent flow and typically have lower shutoff characteristics than ball checks. Valves are available in PVC gray, PVC clear, and CPVC materials in IPS sizes 1/2 in through 4 in with socket, SR threaded or flanged end connections, plus True Union styles with socket and SR threaded ends.
Spears® 1621-010CSR Y-Check Valve, 1 in, Special Reinforced FNPT, CPVC Body, Domestic
CBPN:260230
MPN:1621-010CSR
UPC:054211450260
DESCRIPTION
Spears® Y-Check Valve, 1 in Nominal, Special Reinforced FNPT, 150 psi, 200 deg F, 6-15/16 in Inlet to Outlet Length, 3-5/8 in Top to Inlet Center, CPVC Body, CPVC Trim, EPDM/FKM O-Ring, Seat, Gray, Domestic
Spears® Y-Check valves are an angle type check valve that automatically stops reverse flow by the dead weight of the disc plug. Y-checks are less affected by turbulent flow and typically have lower shutoff characteristics than ball checks. Valves are available in PVC gray, PVC clear, and CPVC materials in IPS sizes 1/2 in through 4 in with socket, SR threaded or flanged end connections, plus True Union styles with socket and SR threaded ends.
Specifications
Item Features
- Chemical and corrosion resistant PVC, PVC clear and CPVC construction
- Improved flow characteristics over ball checks, outperforms spring loaded designs
- Easy access cap for in-line clean out and servicing
- Optional true union design for easy valve service replacement
- Suitable for either horizontal or vertical up-flow installations
- Assembled with silicone free, water soluble lubricant
