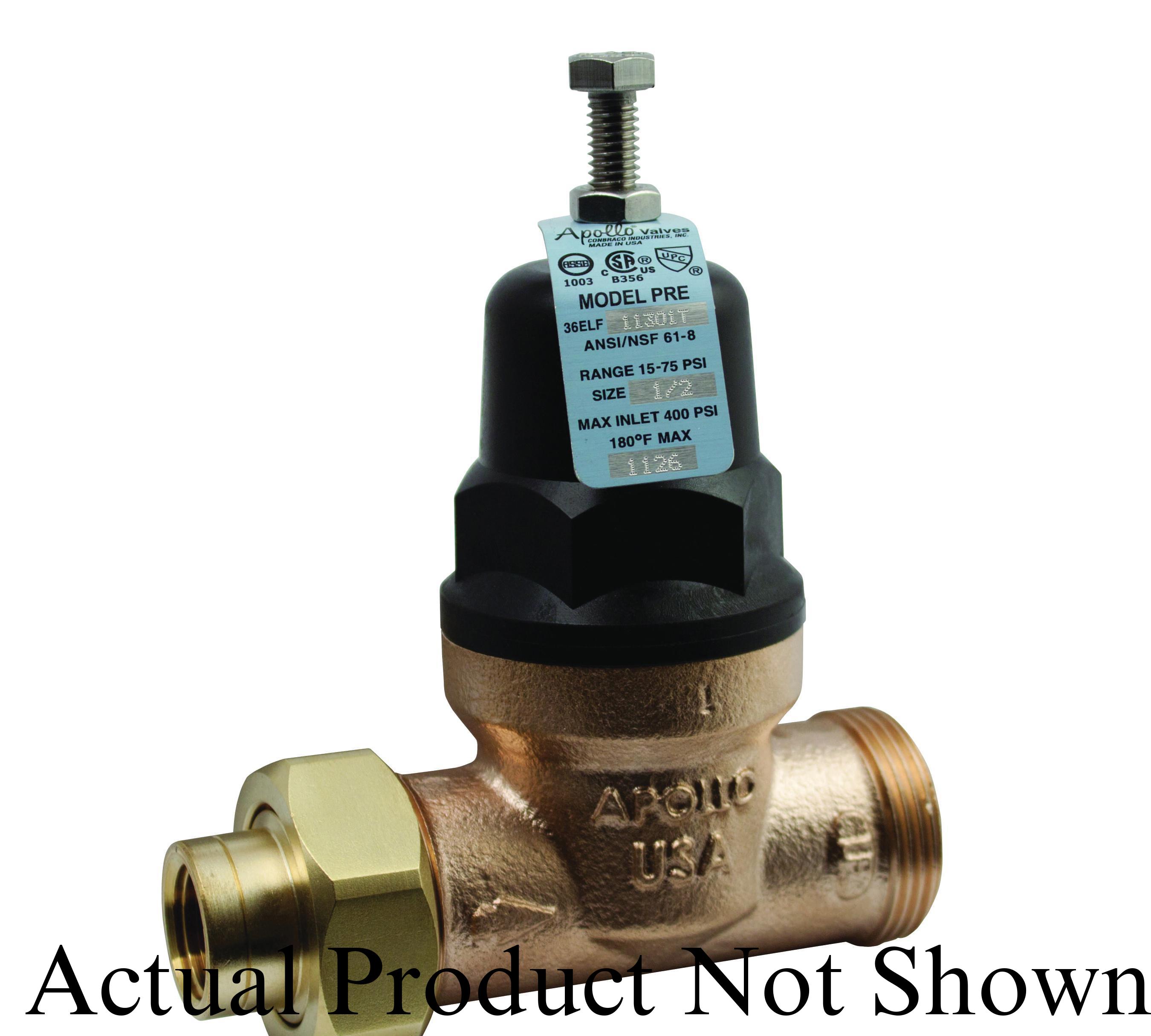

Apollo™ 36ELF11401T 36ELF Pressure Reducing Valve, 3/4 in Nominal, Single Union x FNPT End Style, 15 to 75 psi Pressure, Bronze Body, Domestic
CBPN:199764
UPC:670750511394
MPN:36ELF11401T
DESCRIPTION
Apollo™ 36ELF11401T, Pressure Reducing Valve, Series: 36ELF, 3/4 in Nominal, Single Union x FNPT End Style, 15 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 5-1/2 in Inlet to Outlet Length, Bronze Body, EPDM O-Ring Softgoods, 6 in H x 2-3/4 in D Dimensions, Domestic
The Apollo® Lead Free Pressure Reducing Valve Model PRE (36ELF Series) is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.
Apollo™ 36ELF11401T 36ELF Pressure Reducing Valve, 3/4 in Nominal, Single Union x FNPT End Style, 15 to 75 psi Pressure, Bronze Body, Domestic
CBPN:199764
MPN:36ELF11401T
UPC:670750511394
DESCRIPTION
Apollo™ 36ELF11401T, Pressure Reducing Valve, Series: 36ELF, 3/4 in Nominal, Single Union x FNPT End Style, 15 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 5-1/2 in Inlet to Outlet Length, Bronze Body, EPDM O-Ring Softgoods, 6 in H x 2-3/4 in D Dimensions, Domestic
The Apollo® Lead Free Pressure Reducing Valve Model PRE (36ELF Series) is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.
Specifications
Item Features
- Balanced piston design
- Stainless steel adjusting screw and nut
- Sealed cage for vault installation
- Built-In thermal expansion by-pass
- Large area integral stainless steel strainer
- Modular seat disc and strainer cartridge
- High flow/high efficiency design
- Factory tested and preset at 60 psi
- Noryl cap
- Stainless steel adjusting screw/nut/screen
- ASTM A228 spring steel spring
- UNS C27451 brass union nut/tailpiece
- Direct acting cartridge style regulator designed for maximum economy and efficiency
- NSF grade EPDM diaphragm and seat disc
