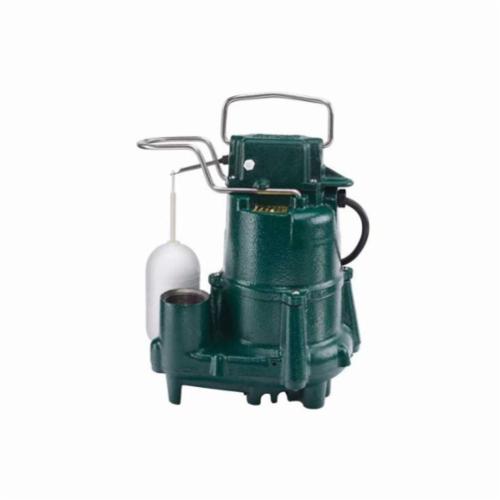

Zoeller® 98-0001 Flow-Mate M98 Automatic Effluent/Dewatering Submersible Pump, 73 gpm Flow Rate, 1-1/2 in Outlet, 1 ph, 1/2 hp, Cast Iron
CBPN:51059
UPC:053514029463
MPN:98-0001
DESCRIPTION
Zoeller® Effluent/Dewatering Submersible Pump, Automatic, Series: Flow-Mate M98, 73 gpm, 1-1/2 in Outlet, 23 ft Maximum Head, 1/2 hp, 115/230 VAC, 9.4 A, 60 Hz, 1 ph, 1725 rpm Motor, Non-Clogging Vortex Impeller, 130 deg F, Oil Fed Bearing, Cast Iron, 12-1/16 in H x 10-1/8 in W
This Flow-Mate model submersible pump is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. This durable cast iron pump includes a epoxy powder coated finish to prevent corrosion and is designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller® pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance. This attention to detail is an inherent feature of every pump, making it one of the most reliable in the industry.
Zoeller® 98-0001 Flow-Mate M98 Automatic Effluent/Dewatering Submersible Pump, 73 gpm Flow Rate, 1-1/2 in Outlet, 1 ph, 1/2 hp, Cast Iron
CBPN:51059
MPN:98-0001
UPC:053514029463
DESCRIPTION
Zoeller® Effluent/Dewatering Submersible Pump, Automatic, Series: Flow-Mate M98, 73 gpm, 1-1/2 in Outlet, 23 ft Maximum Head, 1/2 hp, 115/230 VAC, 9.4 A, 60 Hz, 1 ph, 1725 rpm Motor, Non-Clogging Vortex Impeller, 130 deg F, Oil Fed Bearing, Cast Iron, 12-1/16 in H x 10-1/8 in W
This Flow-Mate model submersible pump is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. This durable cast iron pump includes a epoxy powder coated finish to prevent corrosion and is designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller® pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance. This attention to detail is an inherent feature of every pump, making it one of the most reliable in the industry.
Specifications
Item Features
- Float operated 2-pole mechanical switch
- Corrosion-resistant, powder coated epoxy finish
- No sheet metal parts to rust or corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- No screens to clog, all castings are cast iron class 25 to 30 25000 tensile strength, watertight, neoprene square ring between motor and pump housing
- Permanent split capacitor motor, oil filled and hermetically-sealed, automatic reset thermal overload protection
- Watertight neoprene square ring between motor and pump housing
- Cast iron switch case, motor, pump housing and base, bearings, upper and lower oil fed cast iron, carbon and ceramic shaft seal
- Entire unit pressure-tested after assembly
- Class B insulation, 9-1/2 in/3 in auto On/Off points
- 1/2 in spherical solid handling, 15 ft cord, oil filled cooling
- Auto reset thermal overload motor protection
- Cast iron cap, motor and pump housing, base, carbon and ceramic mechanical seals, engineered plastic impeller, stainless steel hardware, neoprene gasket
- AISI 1215 cold roll steel motor shaft
- 1-1/2 in NPT discharge
