Wilkerson® by Dixon® R26-04R

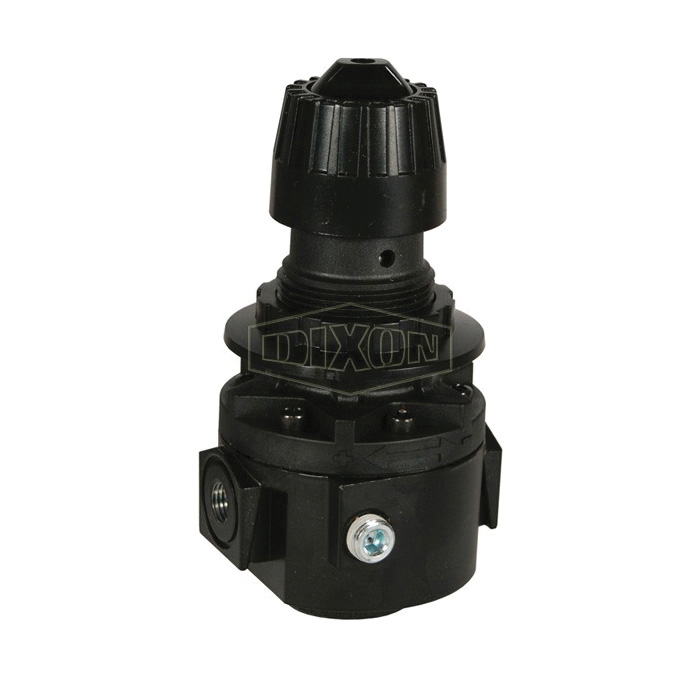

Wilkerson® by Dixon® R26-04R Relieving Standard Regulator Without Gauge, 1/2 in NPT/BSPP-G, 185 scfm Flow Rate, 0 to 125 psig Adjustable Pressure

CBPN:13158

MPN:R26-04R

Price:
$126.06 / EA

DESCRIPTION

Wilkerson® by Dixon® Regulator, Relieving Standard, Series: R26, 1/2 in NPT/BSPP-G, 185 scfm, 0 to 125 psig Adjustable, 32 to 150 deg F, Zinc

Wilkerson® by Dixon® R26-04R Relieving Standard Regulator Without Gauge, 1/2 in NPT/BSPP-G, 185 scfm Flow Rate, 0 to 125 psig Adjustable Pressure

CBPN:13158

MPN:R26-04R

Price:
$126.06 / EA

Dixon Logo

DESCRIPTION

Wilkerson® by Dixon® Regulator, Relieving Standard, Series: R26, 1/2 in NPT/BSPP-G, 185 scfm, 0 to 125 psig Adjustable, 32 to 150 deg F, Zinc

Specifications

BrandWilkerson® by Dixon®
Weight2.5 lbs
Port Size1/2 in NPT/BSPP-G
Flow Rate185 scfm
Pressure Range0 to 125 psig Adjustable
Manufacturer NameDixon Valve & Coupling
MaterialZinc
SeriesR26
Temperature Rating32 to 150 deg F
TypeRelieving Standard
IncludesPanel Mount Nut
ApplicationFor increase regulated pressure, pull adjusting knob up and turn clockwise and to reduce pressure, turn knob counter clockwise

Item Features

  • Non-rising push/pull locking adjustment knob
  • Excellent flow characteristics
  • (2) 1/4 in NPT gauge ports standard, can be used for additional outlet ports
  • For increase regulated pressure, pull adjusting knob up and turn clockwise and to reduce pressure, turn knob counter clockwise
