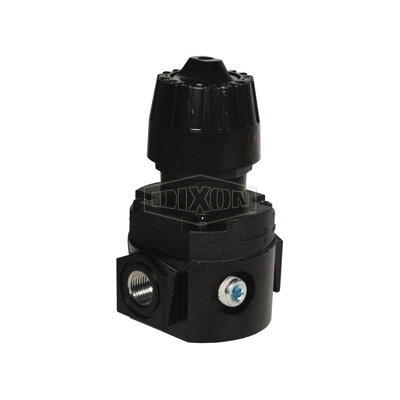

Wilkerson® by Dixon® R16-04R Self-Relieving Standard Compact Regulator Without Gauge, 1/2 in NPT/BSPP-G, 88 scfm Flow Rate, 0 to 125 psig Pressure
CBPN:96500
MPN:R16-04R
Price:
$82.75 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Regulator, Self-Relieving Standard, Series: R16, 1/2 in NPT/BSPP-G, 88 scfm, 0 to 125 psig, 32 to 150 deg F, Zinc
Wilkerson® by Dixon® R16-04R Self-Relieving Standard Compact Regulator Without Gauge, 1/2 in NPT/BSPP-G, 88 scfm Flow Rate, 0 to 125 psig Pressure
CBPN:96500
MPN:R16-04R
Price:
$82.75 / EA
Specifications
Brand: Wilkerson® by Dixon®
Weight: 1.59 lbs
Port Size: 1/2 in NPT/BSPP-G
Flow Rate: 88 scfm
Pressure Range: 0 to 125 psig
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: R16
Temperature Rating: 32 to 150 deg F
Type: Self-Relieving Standard
Application: For increase regulated pressure, pull adjusting knob up and turn clockwise and to reduce pressure, turn knob counter clockwise
Item Features
- (2) 1/4 in NPT gauge ports standard, can be used for additional outlet ports
