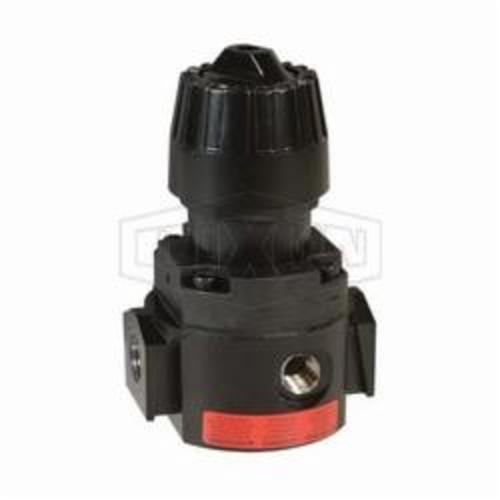

Wilkerson® by Dixon® R16-02RH High Pressure Self-Relieving Standard Compact Regulator Without Gauge, 1/4 in NPT/BSPP-G, 71.5 scfm Flow Rate, 0 to 250 psig Pressure
CBPN:252386
UPC:089109886968
MPN:R16-02RH
Price:
$82.75 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Regulator, High Pressure Self-Relieving Standard, Series: R16, 1/4 in NPT/BSPP-G, 71.5 scfm, 0 to 250 psig, 32 to 150 deg F, Zinc
Wilkerson® by Dixon® R16-02RH High Pressure Self-Relieving Standard Compact Regulator Without Gauge, 1/4 in NPT/BSPP-G, 71.5 scfm Flow Rate, 0 to 250 psig Pressure
CBPN:252386
MPN:R16-02RH
UPC:089109886968
Price:
$82.75 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Regulator, High Pressure Self-Relieving Standard, Series: R16, 1/4 in NPT/BSPP-G, 71.5 scfm, 0 to 250 psig, 32 to 150 deg F, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 1.7 lbs
Port Size: 1/4 in NPT/BSPP-G
Flow Rate: 71.5 scfm
Pressure Range: 0 to 250 psig
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: R16
Temperature Rating: 32 to 150 deg F
Type: High Pressure Self-Relieving Standard
Includes: Panel Mount Nut
Application: For increase regulated pressure, pull adjusting knob up and turn clockwise and to reduce pressure, turn knob counter clockwise
Warranty: Limited
Item Features
- Non-rising push/pull locking adjustment knob
- Excellent flow characteristics
- (2) 1/4 in NPT gauge ports standard, can be used for additional outlet ports
