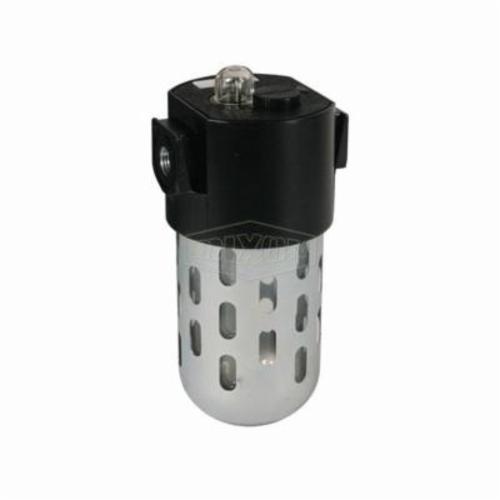

Wilkerson® by Dixon® EconOmist® L26-04A Standard Lubricator, 1/2 in NPT/BSPP-G Port, 128 scfm Flow Rate, 150 psi Pressure, Polycarbonate Bowl
CBPN:106993
MPN:L26-04A
Price:
$160.30 / EA
DESCRIPTION
Wilkerson® by Dixon® EconOmist® Standard Lubricator, Series: L26, 1/2 in NPT/BSPP-G, 128 scfm, 150 psi, Polycarbonate Bowl, 32 to 125 deg F, Zinc
Wilkerson® by Dixon® EconOmist® L26-04A Standard Lubricator, 1/2 in NPT/BSPP-G Port, 128 scfm Flow Rate, 150 psi Pressure, Polycarbonate Bowl
CBPN:106993
MPN:L26-04A
Price:
$160.30 / EA
DESCRIPTION
Wilkerson® by Dixon® EconOmist® Standard Lubricator, Series: L26, 1/2 in NPT/BSPP-G, 128 scfm, 150 psi, Polycarbonate Bowl, 32 to 125 deg F, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 2.27 lbs
Port Size: 1/2 in NPT/BSPP-G
Flow Rate: 128 scfm
Pressure Range: 150 psi
Bowl Material: Polycarbonate
Adjustment Range: 32 to 125 deg F
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: L26
Warranty: Limited
Item Features
- 10 oz bowl
- Adjustable oil feed
- Quick disconnect metal bowl guard with integral safety latch
- Siphon tube filter provides clean lubricant downstream
- The rate of oil delivery may be controlled by turning the adjusting screw counter clockwise for more and clockwise for less oil delivery
- If flow increases or decreases, the oil delivery rate will increase or decrease proportionally
- Can be filled under pressure
- For all Wilkerson® lubricators, use any petroleum-base, non-detergent light weight oil (SAE 10/150 SSU) which will readily break up into a mist, that is Mobil DTE light or comparable oil, do not use any synthetic oil or oils containing additives or solvents
