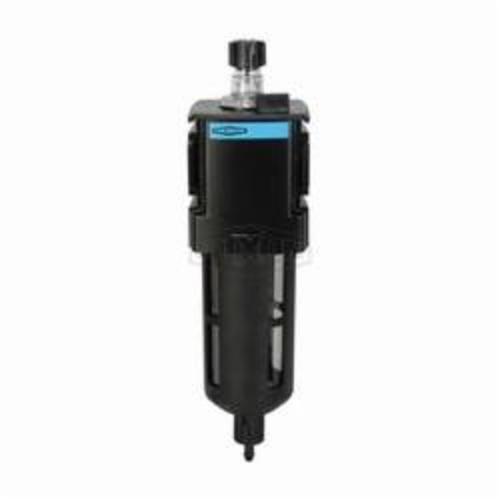

Wilkerson® by Dixon® EconOmist® L18-03A Compact Lubricator With Gauge, 3/8 in NPT/BSPP-G Port, 90 scfm Flow Rate, 150 psi Pressure, Polycarbonate Bowl
CBPN:252305
MPN:L18-03A
Price:
$90.44 / EA
DESCRIPTION
Wilkerson® by Dixon® EconOmist® Compact Lubricator, Series: L18, 3/8 in NPT/BSPP-G, 90 scfm, 150 psi, Polycarbonate Bowl, 32 to 125 deg F, Zinc
Wilkerson® by Dixon® EconOmist® L18-03A Compact Lubricator With Gauge, 3/8 in NPT/BSPP-G Port, 90 scfm Flow Rate, 150 psi Pressure, Polycarbonate Bowl
CBPN:252305
MPN:L18-03A
Price:
$90.44 / EA
DESCRIPTION
Wilkerson® by Dixon® EconOmist® Compact Lubricator, Series: L18, 3/8 in NPT/BSPP-G, 90 scfm, 150 psi, Polycarbonate Bowl, 32 to 125 deg F, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 1.73 lbs
Port Size: 3/8 in NPT/BSPP-G
Flow Rate: 90 scfm
Pressure Range: 150 psi
Bowl Material: Polycarbonate
Adjustment Range: 32 to 125 deg F
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: L18
Warranty: Limited
Item Features
- 4.09 oz bowl
- Manual drain
- High flow capacity
- To adjust and set oil delivery rate the unit must be pressurized and air must be flowing through the unit
- Turn the sight dome, located on the top of the unit, counter clockwise to initiate oil delivery
- If flow increases or decreases, the oil delivery rate will increase or decrease proportionally
- Turning the sight dome clockwise will stop oil delivery
- Can be filled under pressure
- For all Wilkerson® lubricators, use any petroleum-base, non-detergent light weight oil (SAE 10/150 SSU) which will readily break up into a mist, that is Mobil DTE light or comparable oil, do not use any synthetic oil or oils containing additives or solvents
