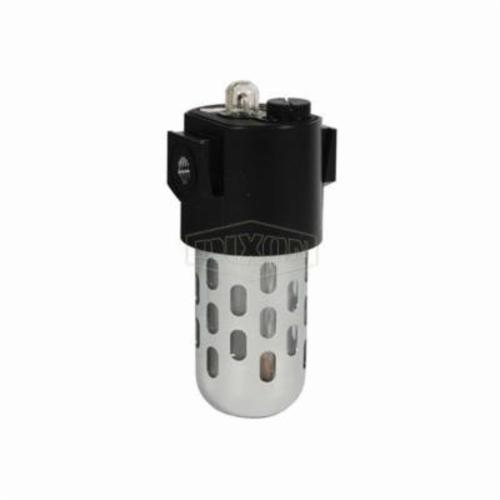

Wilkerson® by Dixon® EconOmist® L16-02A Compact Lubricator With Gauge, 1/4 in NPT/BSPP-G Port, 36.1 scfm Flow Rate, 150 psi Pressure, Polycarbonate Bowl
CBPN:252404
MPN:L16-02A
Price:
$130.80 / EA
DESCRIPTION
Wilkerson® by Dixon® EconOmist® Compact Lubricator, Series: L16, 1/4 in NPT/BSPP-G, 36.1 scfm, 150 psi, Polycarbonate Bowl, 32 to 125 deg F, Zinc
Wilkerson® by Dixon® EconOmist® L16-02A Compact Lubricator With Gauge, 1/4 in NPT/BSPP-G Port, 36.1 scfm Flow Rate, 150 psi Pressure, Polycarbonate Bowl
CBPN:252404
MPN:L16-02A
Price:
$130.80 / EA
DESCRIPTION
Wilkerson® by Dixon® EconOmist® Compact Lubricator, Series: L16, 1/4 in NPT/BSPP-G, 36.1 scfm, 150 psi, Polycarbonate Bowl, 32 to 125 deg F, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 1.84 lbs
Port Size: 1/4 in NPT/BSPP-G
Flow Rate: 36.1 scfm
Pressure Range: 150 psi
Bowl Material: Polycarbonate
Adjustment Range: 32 to 125 deg F
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: L16
Application: Designed so that all of the oil flow observed in the sight dome is broken into a mist and delivered via the airflow to the application
Warranty: Limited
Item Features
- 5 oz bowl
- Full view sight dome
- The oil in the bowl can be filled or replenished without interrupting airflow or bleeding pressure from the system
- Once the oil-fill cap is removed, the bowl is depressurized and isolated from line pressure and the bowl itself can then be removed for faster refill, if desired
- The bowl can be filled right to the top
- For all Wilkerson® lubricators, use any petroleum-base, non-detergent light weight oil (SAE 10/150 SSU) which will readily break up into a mist, that is Mobil DTE light or comparable oil, do not use any synthetic oil or oils containing additives or solvents
