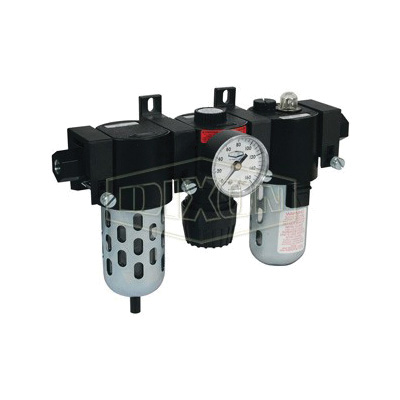

Wilkerson® by Dixon® C16-04A Compact Combination Unit With Guard, 1/2 in NPT Port, 64 scfm Flow Rate, Polycarbonate Bowl, 0 to 150 psig Pressure
CBPN:252369
UPC:089109886135
MPN:C16-04A
Price:
$489.20 / EA
DESCRIPTION
Wilkerson® by Dixon® Combination Unit, Compact, Series: C16, 1/2 in NPT, 64 scfm, 0 to 150 psig, Polycarbonate Bowl, 0 to 125 psig, Zinc
Wilkerson® by Dixon® C16-04A Compact Combination Unit With Guard, 1/2 in NPT Port, 64 scfm Flow Rate, Polycarbonate Bowl, 0 to 150 psig Pressure
CBPN:252369
MPN:C16-04A
UPC:089109886135
Price:
$489.20 / EA
DESCRIPTION
Wilkerson® by Dixon® Combination Unit, Compact, Series: C16, 1/2 in NPT, 64 scfm, 0 to 150 psig, Polycarbonate Bowl, 0 to 125 psig, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 6.3 lbs
Port Size: 1/2 in NPT
Flow Rate: 64 scfm
Bowl Material: Polycarbonate
Pressure Range: 0 to 150 psig
Adjustment Range: 0 to 125 psig
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: C16
Type: Compact
Includes: (2) Modular Sleeves, (2) Mounting Brackets (Sleeve and Bracket) and (2) End Blocks
Warranty: Limited
Item Features
- Automatic drain
- F16 series Filter has a 5 micron element and 5 oz bowl
- R16 series Regulator is self relieving, has a 0-125 PSI adjusting range and is supplied with a GC230 gauge
- L16 series Lubricator has a 5 oz bowl, an adjustable oil feed and a full view sight dome
