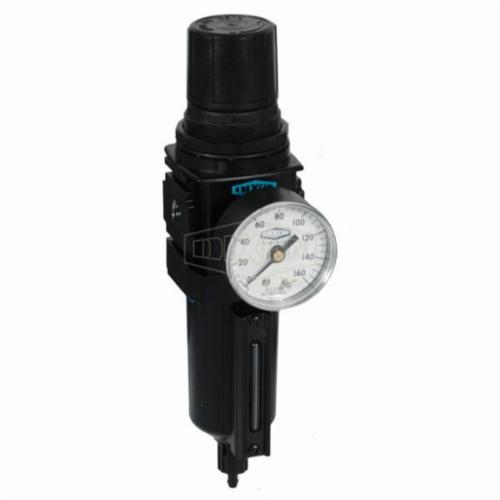

Wilkerson® by Dixon® B18-03AG Self-Relieving Compact Filter/Regulator With GC230 Gauge and Bowl Guard, 3/8 in NPT/BSPP-G Port, 117 scfm Flow Rate, 150 psig Pressure, Polycarbonate Bowl
CBPN:248710
UPC:089109886395
MPN:B18-03AG
Price:
$177.87 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Filter/Regulator, Self-Relieving, Series: B18, 3/8 in NPT/BSPP-G, 117 scfm, 150 psig, Polycarbonate Bowl, 5 to 125 psig, Zinc
Wilkerson® by Dixon® B18-03AG Self-Relieving Compact Filter/Regulator With GC230 Gauge and Bowl Guard, 3/8 in NPT/BSPP-G Port, 117 scfm Flow Rate, 150 psig Pressure, Polycarbonate Bowl
CBPN:248710
MPN:B18-03AG
UPC:089109886395
Price:
$177.87 / EA
DESCRIPTION
Wilkerson® by Dixon® Compact Filter/Regulator, Self-Relieving, Series: B18, 3/8 in NPT/BSPP-G, 117 scfm, 150 psig, Polycarbonate Bowl, 5 to 125 psig, Zinc
Specifications
Brand: Wilkerson® by Dixon®
Weight: 1.52 lbs
Port Size: 3/8 in NPT/BSPP-G
Flow Rate: 117 scfm
Pressure Range: 150 psig
Bowl Material: Polycarbonate
Adjustment Range: 5 to 125 psig
Manufacturer Name: Dixon Valve & Coupling
Material: Zinc
Series: B18
Type: Self-Relieving
Warranty: Limited
Item Features
- Automatic drain
- To increase regulated pressure, pull adjusting knob and turn clockwise
- To reduce pressure, turn knob counter clockwise
- To lock knob, push down
- Spring-loaded diaphragm
- Two 1/4 in gauge ports located on the front and rear faces of the body, these ports may be used as additional regulated ports or for pressure gauges and plugs unused ports
- 5 micron element
- 4 oz bowl
- Over-under units are space savers and provide for installation in tight areas
- One common inlet/outlet for both filter and regulator saves on piping costs
