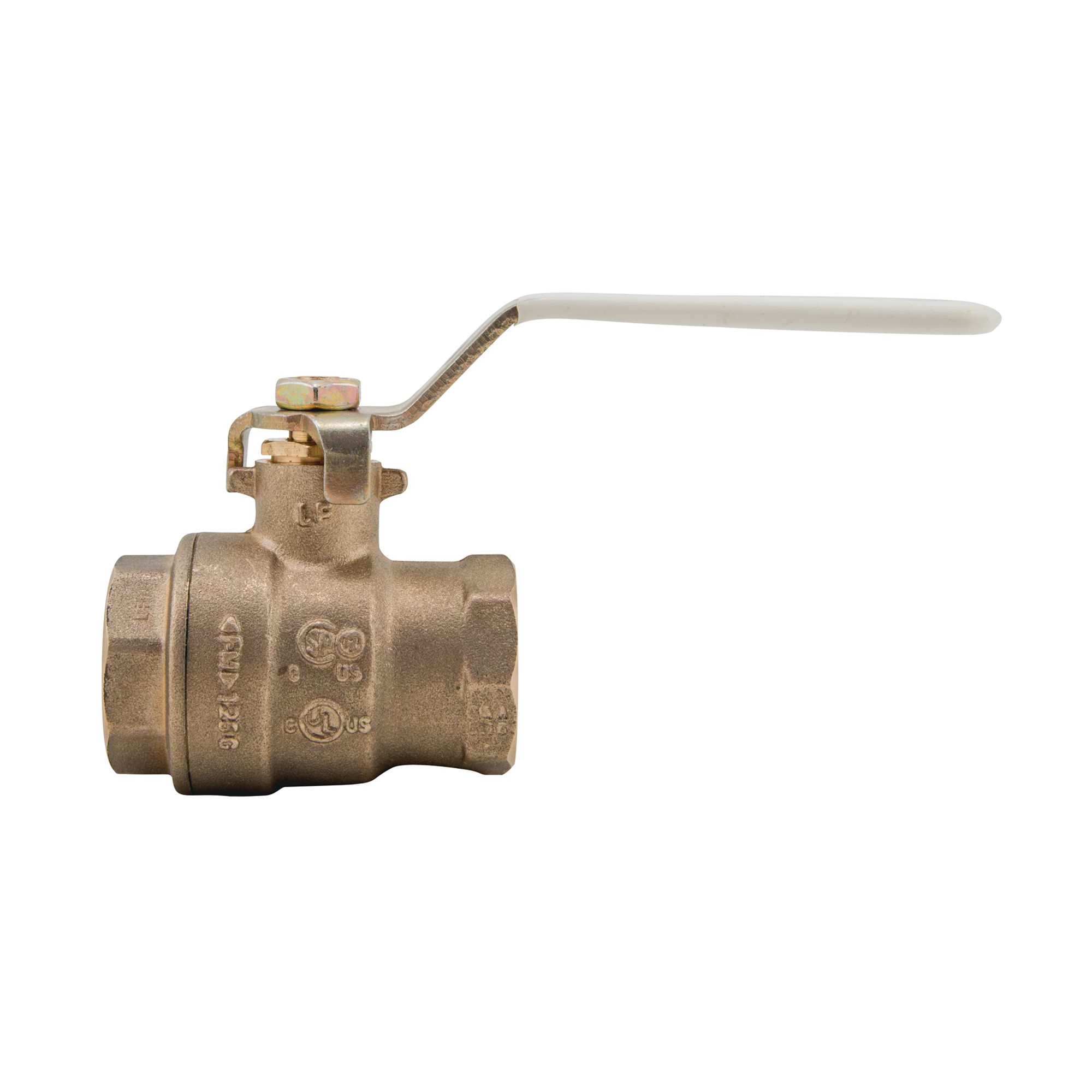

WATTS® 88005688 LFFBV-3C-M1 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Copper Silicon Alloy Body, Full Port, FKM/PTFE Softgoods, Import
CBPN:244737
UPC:098268163827
MPN:88005688
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV-3C-M1, 3/4 in Nominal, FNPT End Style, 150 psi WSP/600 psi WOG Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, 3/4 in Orifice, Lever Handle Actuator, Polished Chrome Brass Ball, 2-7/16 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Copper Silicon Alloy Body, Brass/PTFE Trim, FKM/PTFE Softgoods, Import
This 3/4 in 2-piece full port ball valve is used in residential and commercial potable water applications, suitable for a full range of liquids and gases. This valve features a lead free brass body and adapter, female threaded end connections, adjustable packing gland, Chrome Plated lead free brass ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem, and steel handle. The temperature range is -40 to 400 deg F (-40 to 204 deg C) and the pressure rating is 600 psi (41 bar) WOG non-shock and 150 psi (10.3 bar) WSP. Certified NSF-61/ANSI 8, UL listed, FM and CSA approved.
WATTS® 88005688 LFFBV-3C-M1 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Copper Silicon Alloy Body, Full Port, FKM/PTFE Softgoods, Import
CBPN:244737
MPN:88005688
UPC:098268163827
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV-3C-M1, 3/4 in Nominal, FNPT End Style, 150 psi WSP/600 psi WOG Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, 3/4 in Orifice, Lever Handle Actuator, Polished Chrome Brass Ball, 2-7/16 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Copper Silicon Alloy Body, Brass/PTFE Trim, FKM/PTFE Softgoods, Import
This 3/4 in 2-piece full port ball valve is used in residential and commercial potable water applications, suitable for a full range of liquids and gases. This valve features a lead free brass body and adapter, female threaded end connections, adjustable packing gland, Chrome Plated lead free brass ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem, and steel handle. The temperature range is -40 to 400 deg F (-40 to 204 deg C) and the pressure rating is 600 psi (41 bar) WOG non-shock and 150 psi (10.3 bar) WSP. Certified NSF-61/ANSI 8, UL listed, FM and CSA approved.
Specifications
Standards
ASME B16.33/B16.44|cCSAus Certified|CSA Certified|FM Approved|MSS-SP-110|NSF ANSI 61/8|UL Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Item Features
- Lead free brass body and adapter
- Machined Chrome Plated lead free brass ball
- Fluorocarbon elastomer stem O-ring prevents stem leaks
- Virgin PTFE seat/thrust washer/stem packing
- PTFE seal
- Brass stem
