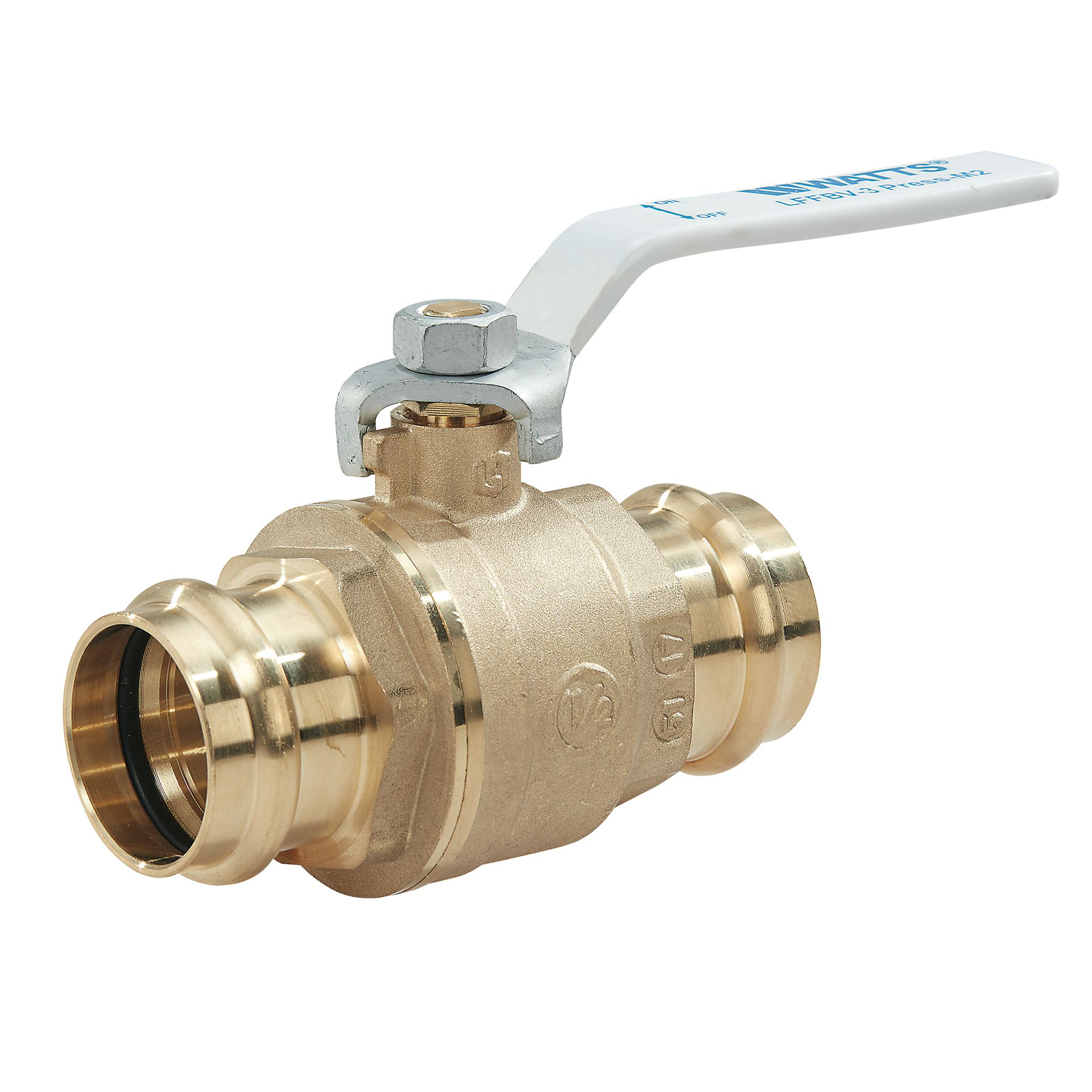

WATTS® 88005494 LFFBV-3 Press-M2 2-Piece Ball Valve, 3/4 in Nominal, Press End Style, Lead Free Brass Brass Body, Full Port, EPDM/PTFE Softgoods, Import
CBPN:223069
UPC:098268153125
MPN:88005494
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV-3 Press-M2, 3/4 in Nominal, Press, 250 psi WOG, 32 to 250 deg F, Full Port, Media: Water, 3/4 in Orifice, Lever Handle Actuator, Chrome Plated Brass Ball, 3-7/8 in Inlet to Outlet Length, 1-15/16 in Top to Inlet Center, Copper Silicon Alloy Brass Body, Brass/PTFE Trim, EPDM/PTFE, Import
This 3/4 in lead free 2-piece, full port, ball valve with integral press end fittings is designed for use in plumbing, heating, and potable water applications. It features a lead free brass body, adjustable packing gland, and bottom-loaded blowout proof stem. It is made with integral ASTM-B88 compliant press end connections that are designed for types K, L and M hard copper tubing. The press fitting is rated to 250 psi CWP up to 210 deg F.
WATTS® 88005494 LFFBV-3 Press-M2 2-Piece Ball Valve, 3/4 in Nominal, Press End Style, Lead Free Brass Brass Body, Full Port, EPDM/PTFE Softgoods, Import
CBPN:223069
MPN:88005494
UPC:098268153125
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV-3 Press-M2, 3/4 in Nominal, Press, 250 psi WOG, 32 to 250 deg F, Full Port, Media: Water, 3/4 in Orifice, Lever Handle Actuator, Chrome Plated Brass Ball, 3-7/8 in Inlet to Outlet Length, 1-15/16 in Top to Inlet Center, Copper Silicon Alloy Brass Body, Brass/PTFE Trim, EPDM/PTFE, Import
This 3/4 in lead free 2-piece, full port, ball valve with integral press end fittings is designed for use in plumbing, heating, and potable water applications. It features a lead free brass body, adjustable packing gland, and bottom-loaded blowout proof stem. It is made with integral ASTM-B88 compliant press end connections that are designed for types K, L and M hard copper tubing. The press fitting is rated to 250 psi CWP up to 210 deg F.
Specifications
Item Features
- Bottom loaded blowout proof stem with packing nut
- EPDM O-Ring/PTFE thrust washer/packing gland
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Brass stem shaft/PTFE seat
