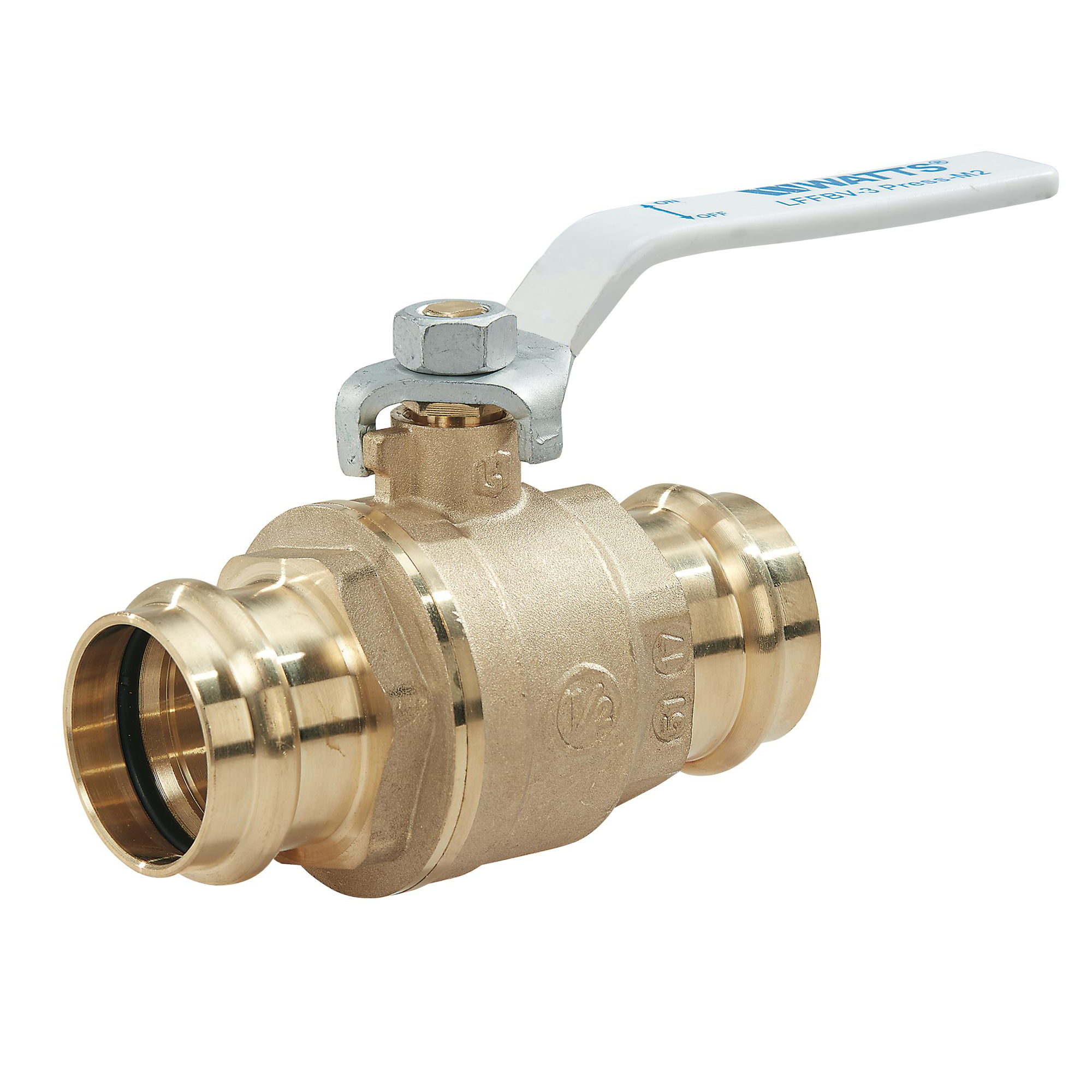

WATTS® 88005493 LFFBV-3-PRESS-M2 2-Piece Ball Valve, 1/2 in Nominal, Press End Style, Forged Lead Free Brass Body, Full Port, PTFE/EPDM Softgoods, Import
CBPN:220858
UPC:098268153118
MPN:88005493
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV-3-PRESS-M2, 1/2 in Nominal, Press, 250 psi WOG, 32 to 250 deg F, Full Port, Media: Water, 9/16 in Orifice, Lever Handle Actuator, Chrome Plated Brass Ball, 3-3/8 in Inlet to Outlet Length, 1-11/16 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE/EPDM, Import
This 1/2 in lead free two-piece, full port, ball valve with integral press end fittings is designed for use in plumbing, heating, and potable water applications. It features a lead free brass body, adjustable packing gland, and bottom-loaded blowout proof stem. It is made with integral ASTM-B88 compliant press end connections that are designed for types K, L and M hard copper tubing. The press fitting is rated to 250 psi CWP up to 210 deg F.
WATTS® 88005493 LFFBV-3-PRESS-M2 2-Piece Ball Valve, 1/2 in Nominal, Press End Style, Forged Lead Free Brass Body, Full Port, PTFE/EPDM Softgoods, Import
CBPN:220858
MPN:88005493
UPC:098268153118
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV-3-PRESS-M2, 1/2 in Nominal, Press, 250 psi WOG, 32 to 250 deg F, Full Port, Media: Water, 9/16 in Orifice, Lever Handle Actuator, Chrome Plated Brass Ball, 3-3/8 in Inlet to Outlet Length, 1-11/16 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE/EPDM, Import
This 1/2 in lead free two-piece, full port, ball valve with integral press end fittings is designed for use in plumbing, heating, and potable water applications. It features a lead free brass body, adjustable packing gland, and bottom-loaded blowout proof stem. It is made with integral ASTM-B88 compliant press end connections that are designed for types K, L and M hard copper tubing. The press fitting is rated to 250 psi CWP up to 210 deg F.
Specifications
Item Features
- Bottom loaded blowout proof stem with packing nut
- Designed for types K, L, and M hard copper tubing 1/2 to 4 in and soft copper tubing 1/2 to 1-1/4 in
- PTFE thrust washer/packing Gland/EPDM O-Ring
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Brass stem shaft/PTFE seat
