WATTS® 88004110

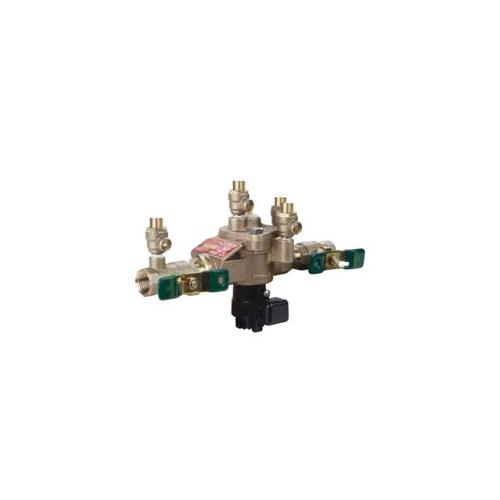

WATTS® 88004110 LF009-FS In-Line Backflow Preventer, 1/2 in Nominal, FNPT End Style, Quarter-Turn Ball Valve, Reduced Pressure Zone

CBPN:272353

UPC:098268349276

MPN:88004110

Price:
$518.30 / EA
Prop 65:

DESCRIPTION

WATTS®, 88004110, Backflow Preventer, In-Line, Series: LF009-FS, 1/2 in Nominal, FNPT End Style, 175 psi Pressure, 33 to 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Reduced Pressure Zone Backflow, Media: Water, Cast Copper Silicon Alloy, 10 in L x 5-7/8 in H Dimensions

This 1/2 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a lead free bronze body, NPT end connections, quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements. This backflow assembly contains an integrated flood sensor with SentryPlus(TM) Alert technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify the user of potential flooding. Add-on sensor connection kits are available for both BMS and cellular communications.

WATTS® 88004110 LF009-FS In-Line Backflow Preventer, 1/2 in Nominal, FNPT End Style, Quarter-Turn Ball Valve, Reduced Pressure Zone

CBPN:272353

MPN:88004110

UPC:098268349276

Price:
$518.30 / EA

Prop 65:

DESCRIPTION

WATTS®, 88004110, Backflow Preventer, In-Line, Series: LF009-FS, 1/2 in Nominal, FNPT End Style, 175 psi Pressure, 33 to 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Reduced Pressure Zone Backflow, Media: Water, Cast Copper Silicon Alloy, 10 in L x 5-7/8 in H Dimensions

This 1/2 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a lead free bronze body, NPT end connections, quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements. This backflow assembly contains an integrated flood sensor with SentryPlus(TM) Alert technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify the user of potential flooding. Add-on sensor connection kits are available for both BMS and cellular communications.

Specifications

Brand: WATTS®
Weight: 4.7 lbs
Nominal Size: 1/2 in
End Style: FNPT
Ball Valve/Gate Valve Type: Quarter-Turn Ball Valve
Body Material: Copper Silicon Alloy
Backflow Type: Reduced Pressure Zone
Dimensions: 10 in L x 5-7/8 in H
Finish: Cast Copper Silicon Alloy
Manufacturer Name: Watts Water Technologies
Media: Water
Pressure Rating: 175 psi
Series: LF009-FS
Temperature Rating: 33 to 180 deg F
Type: In-Line
Application: Ideal for protection in continuous pressure piping applications
Country of Origin: US
Standards and Approvals: 1-UL Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm

Item Features

  • Alert features available with add-on sensor connection kit
  • Features an integrated flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
  • Internal relief valve for reduced installation clearances
  • Lead free bronze body construction for durability
  • NPT inlet and outlet connections
  • Quarter turn full port resilient seated ball valve shutoffs
  • Replaceable seats for an economical repair
  • Single access cover and modular check construction for the ease of maintenance
  • Test cocks are screwdriver slotted
