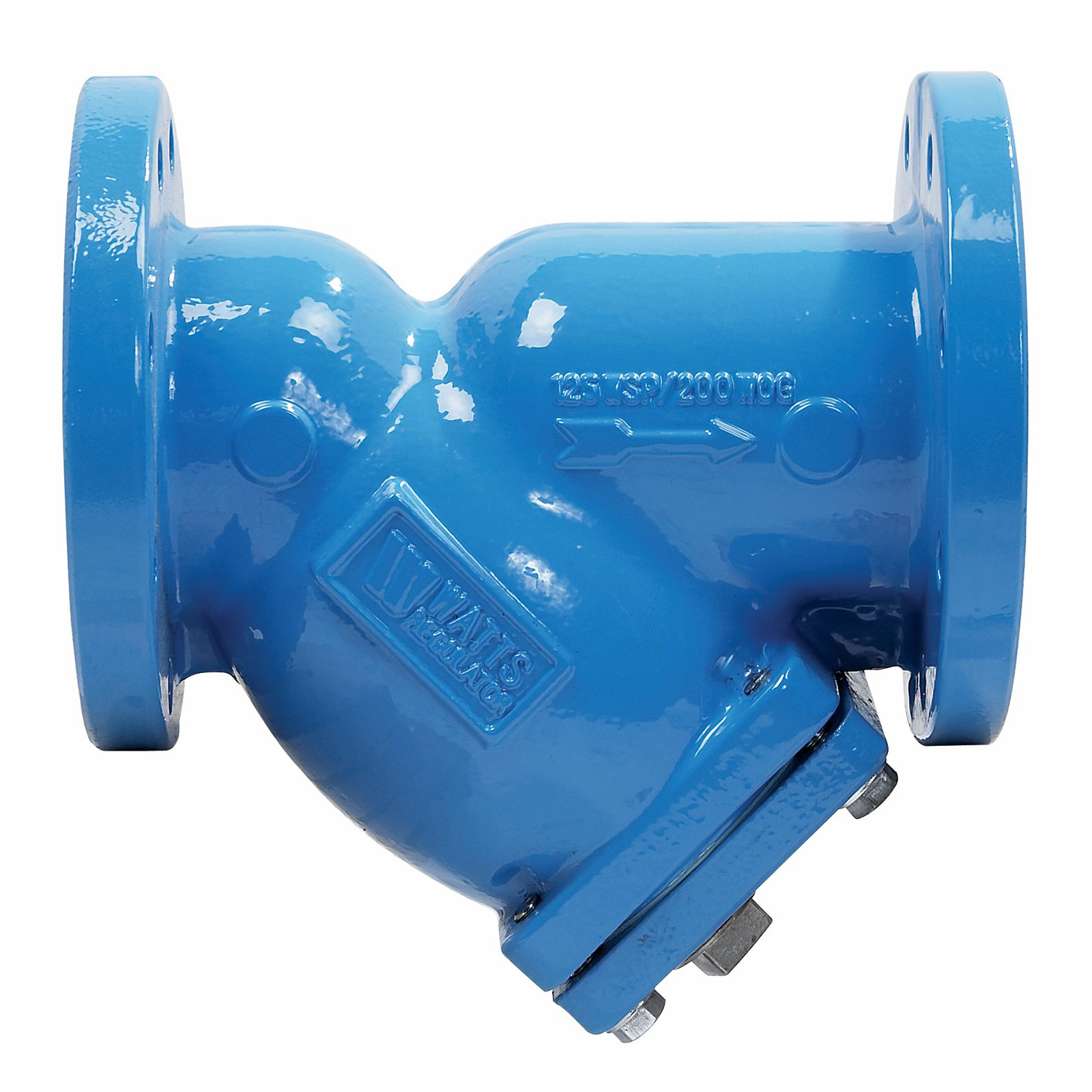

WATTS® 0825212 77F-DI-FDA-125 Wye Strainer, 4 in Nominal, 12-1/8 in OAL, Flanged Connection, Graphite Softgoods, Import
CBPN:19997
UPC:098268051872
MPN:0825212
DESCRIPTION
WATTS® Wye Strainer, Series: 77F-DI-FDA-125, 4 in Nominal, 12-1/8 in Overall Length, Flanged, 1-1/2 in NPT Blow-Off, Graphite, Cast Iron Body, Epoxy Coated, B Grade, Import
Series 77F-DI-FDA-125 Cast Iron, Flanged, Wye-Pattern Strainers feature an FDA approved epoxy coating inside and outside and is suitable for potable water and food contact applications. They feature a wye-pattern, Class B cast iron body with Class 125 flanged connections, stainless steel screen, bolted and tapped iron retainer cap with graphite gasket and iron blow-down plug. Maximum Pressure (non-shock): 200 psi at 140 deg F WOG.
WATTS® 0825212 77F-DI-FDA-125 Wye Strainer, 4 in Nominal, 12-1/8 in OAL, Flanged Connection, Graphite Softgoods, Import
CBPN:19997
MPN:0825212
UPC:098268051872
DESCRIPTION
WATTS® Wye Strainer, Series: 77F-DI-FDA-125, 4 in Nominal, 12-1/8 in Overall Length, Flanged, 1-1/2 in NPT Blow-Off, Graphite, Cast Iron Body, Epoxy Coated, B Grade, Import
Series 77F-DI-FDA-125 Cast Iron, Flanged, Wye-Pattern Strainers feature an FDA approved epoxy coating inside and outside and is suitable for potable water and food contact applications. They feature a wye-pattern, Class B cast iron body with Class 125 flanged connections, stainless steel screen, bolted and tapped iron retainer cap with graphite gasket and iron blow-down plug. Maximum Pressure (non-shock): 200 psi at 140 deg F WOG.
Specifications
Item Features
- Flanges conform to american national standards Institute, class 125 (ANSI B16.1) and WW-S-2739 type 2
- Drain/blow-off connection furnished with closure plug
- Series 77F-DI-FDA-125 comes with heat fused FDA approved epoxy coating (interior and exterior)
- Graphite gasket
