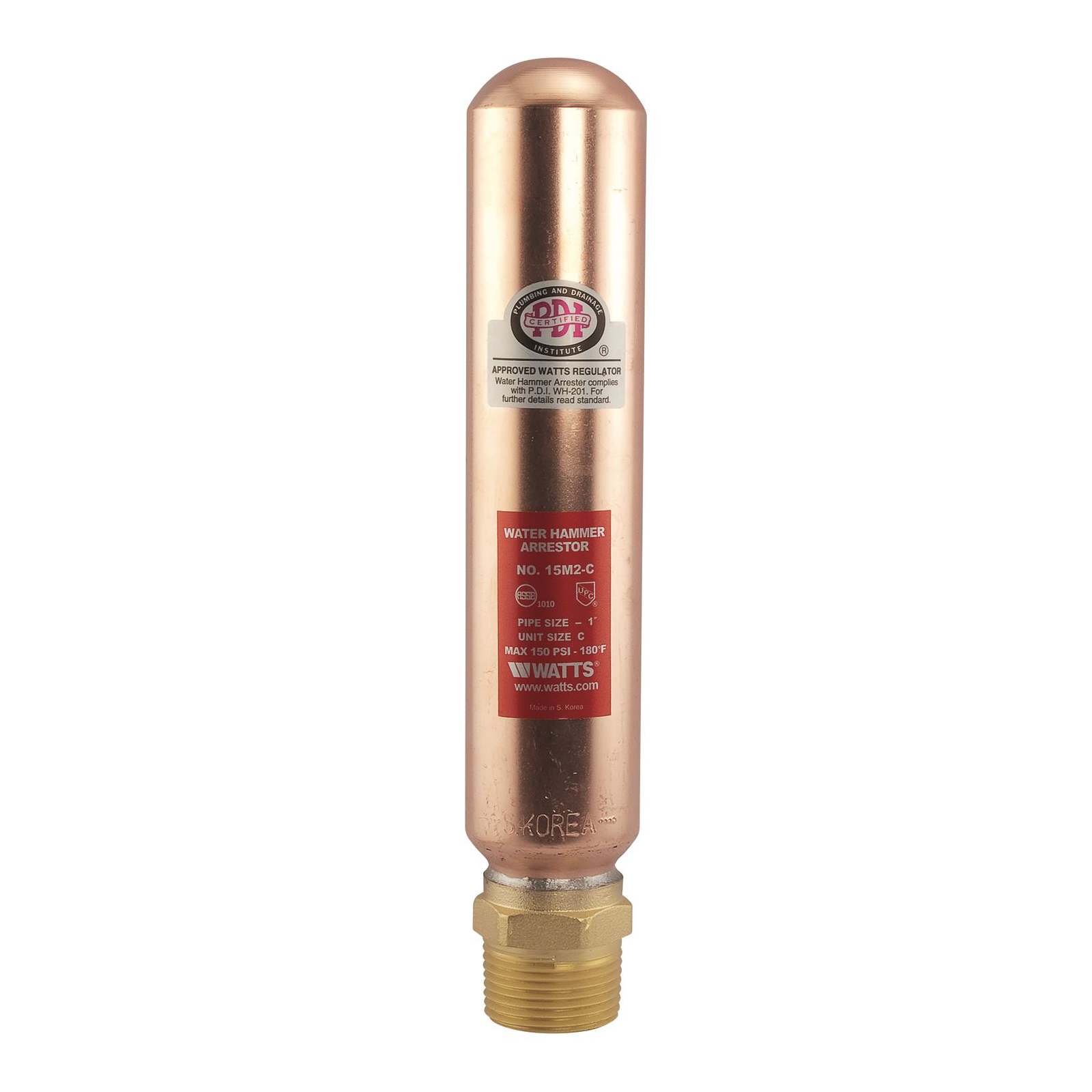

WATTS® 0750162 LF15M2 Water Hammer Arrester, 1 in Nominal, NPT End Style, 150 psi Pressure, 33 to 60 Fixture Unit, Import
CBPN:188536
UPC:098268526141
MPN:0750162
DESCRIPTION
WATTS® Water Hammer Arrester, Series: LF15M2, 1 in Nominal, NPT, 150 psi, 33 to 60 Fixture Unit Capacity, 33 to 180 deg F, Copper Body, EPDM O-Ring, 8-13/16 in L, Import
The noise from banging pipes is caused by shocks of high speed water flowing in the piping system when a fixture is suddenly closed. Sudden stoppage of the water (a non-compressible liquid) flowing at a given pressure and velocity causes a surge or spike of water and is called water hammer. When this occurs, a pressure wave travels back through the piping until it finds a point of relief. The LF15M2 and LF15M2S Water Hammer Arresters are designed to eliminate this effect. The LF15M2 and LF15M2S features Lead Free* construction to comply with Lead Free* requirements.
WATTS® 0750162 LF15M2 Water Hammer Arrester, 1 in Nominal, NPT End Style, 150 psi Pressure, 33 to 60 Fixture Unit, Import
CBPN:188536
MPN:0750162
UPC:098268526141
DESCRIPTION
WATTS® Water Hammer Arrester, Series: LF15M2, 1 in Nominal, NPT, 150 psi, 33 to 60 Fixture Unit Capacity, 33 to 180 deg F, Copper Body, EPDM O-Ring, 8-13/16 in L, Import
The noise from banging pipes is caused by shocks of high speed water flowing in the piping system when a fixture is suddenly closed. Sudden stoppage of the water (a non-compressible liquid) flowing at a given pressure and velocity causes a surge or spike of water and is called water hammer. When this occurs, a pressure wave travels back through the piping until it finds a point of relief. The LF15M2 and LF15M2S Water Hammer Arresters are designed to eliminate this effect. The LF15M2 and LF15M2S features Lead Free* construction to comply with Lead Free* requirements.
Specifications
Standards
ANSI A112.26.1M|ASSE 1010|cUPC Listed|IAPMO Listed|PDI WH-201|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.Item Features
- NPT solid hex brass adapter or solder end connection for easy installation
- Approved for installation with no access panel required
- May be installed in new or existing plumbing systems with a standard pipe tee vertically, horizontally or at any angle
- PDI Listed (PDI WH201)
- Maintenance free piston is the only moving part
- Factory air charged at 60 psi (4.2 bar)and is not rechargeable in the field and permanently sealed
- Polypropylene piston
- Lead free brass NPT hex adapter for easy installation
