WATTS® 0590715

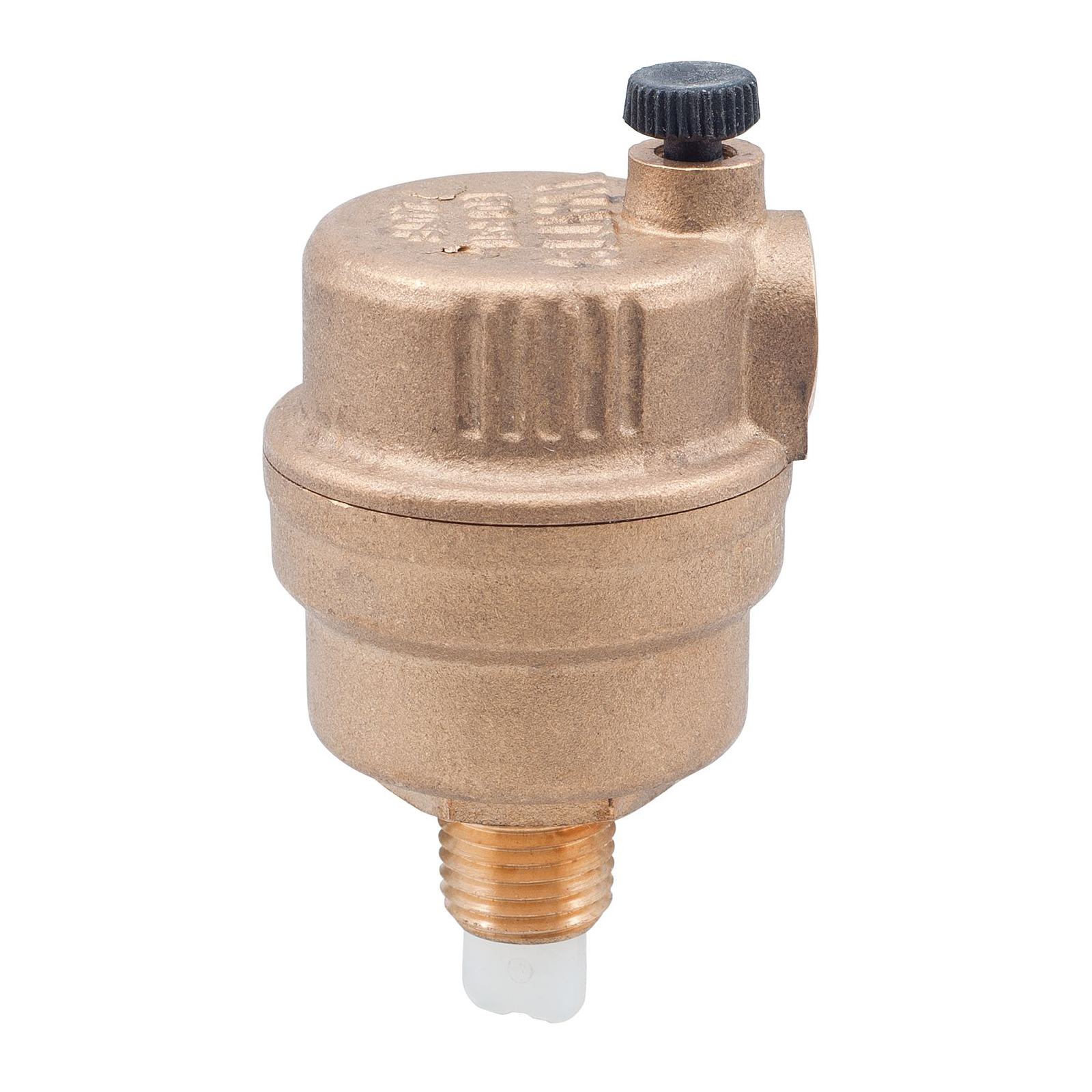

WATTS® 0590715 FV-4M1 Automatic Air Vent Valve, 1/8 in Nominal, 1.45 to 150 psi Pressure, Brass Body, Import

CBPN:39296

UPC:098268373622

MPN:0590715

Price:
$18.78 / EA
Prop 65:

DESCRIPTION

WATTS® Air Vent Valve, Automatic, Series: FV-4M1, 1/8 in Nominal, 1.45 to 150 psi, 33 to 240 deg F, Brass Body, Silicone Rubber Seal, 2-15/16 in H, Import

Series FV-4 Automatic Vent Valves are used in commercial and residential hydronic heating applications to provide automatic air venting for hot or cold water distribution systems. It consists of a brass body construction with male NPT connection, brass cover, air vent with silicone rubber seal, polyethylene float with valve plug, and automatic vent. Series FV-4M1 has a high temperature rating and is ideal for use with glycol systems or for use as an anti-vacuum device. It can also be installed to permit the separation and dispersal of air while fluid is circulating in the system. Can be disassembled for inspection and cleaning.

WATTS® 0590715 FV-4M1 Automatic Air Vent Valve, 1/8 in Nominal, 1.45 to 150 psi Pressure, Brass Body, Import

CBPN:39296

MPN:0590715

UPC:098268373622

Price:
$18.78 / EA

Prop 65:
Watts logo

DESCRIPTION

WATTS® Air Vent Valve, Automatic, Series: FV-4M1, 1/8 in Nominal, 1.45 to 150 psi, 33 to 240 deg F, Brass Body, Silicone Rubber Seal, 2-15/16 in H, Import

Series FV-4 Automatic Vent Valves are used in commercial and residential hydronic heating applications to provide automatic air venting for hot or cold water distribution systems. It consists of a brass body construction with male NPT connection, brass cover, air vent with silicone rubber seal, polyethylene float with valve plug, and automatic vent. Series FV-4M1 has a high temperature rating and is ideal for use with glycol systems or for use as an anti-vacuum device. It can also be installed to permit the separation and dispersal of air while fluid is circulating in the system. Can be disassembled for inspection and cleaning.

Specifications

BrandWATTS®
Weight0.28 lbs
Pressure Rating1.45 to 150 psi
Temperature Rating33 to 240 deg F
Body MaterialBrass
Dimensions2-15/16 in H
Manufacturer NameWatts Water Technologies
Nominal Size1/8 in
SeriesFV Series, FV-4M1
Softgoods MaterialSilicone Rubber Seal
TypeAutomatic
ApplicationHydronic Heating
WarrantyLimited
Domestic/ImportImport
Country of OriginIT
Standards and ApprovalsUS Green Building Council | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Standards

US Green Building Council|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Item Features

  • Body and cover are brass construction
  • Air vent with silicone rubber seal
  • Impurities do not usually affect function as maximum float line of water is always lower than the valve seal
  • Float is high temperature resistant polyethylene
  • Suitable for use with glycol systems
  • Can be disassembled for inspection and cleaning
