WATTS® 0556018

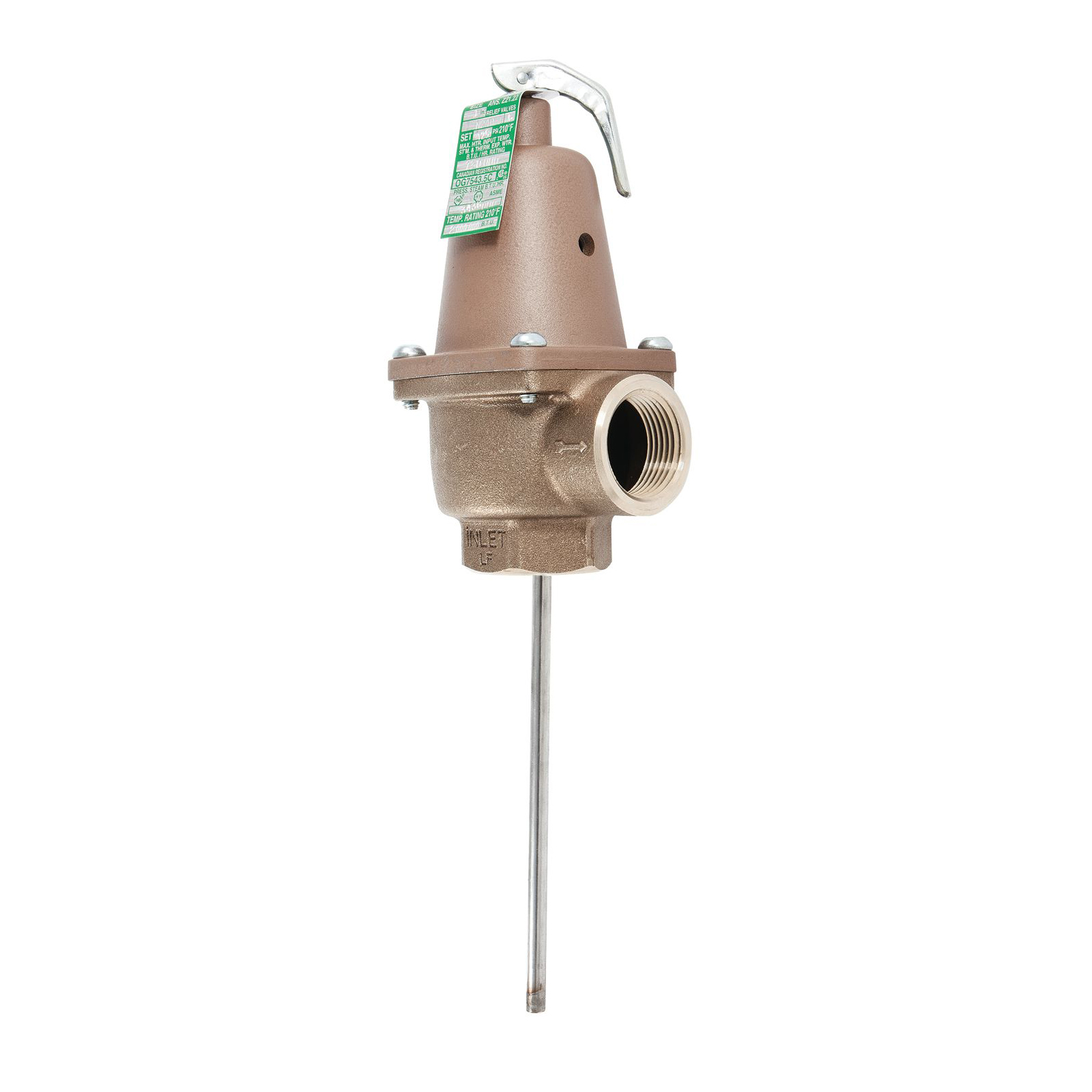

WATTS® 0556018 LFN240X Automatic Reseating Temperature/Pressure Relief Valve, 1 in Nominal, FNPT End Style, Domestic

CBPN:231881

UPC:098268432534

MPN:0556018

Price:
$2112.23 / EA
Prop 65:

DESCRIPTION

WATTS® Temperature/Pressure Relief Valve, Automatic Reseating, Series: LFN240X, 1 in Nominal, FNPT, 210 deg F, Media: Water, 3-1/4 in W x 6-1/4 in H, Domestic

This 1 in lead free automatic reseating temperature and pressure relief valve with a 6 in thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a lead free body with FNPT inlet and FNPT outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature and test lever. The temperature relief is 210 deg F and the pressure relief is 125 psi.

WATTS® 0556018 LFN240X Automatic Reseating Temperature/Pressure Relief Valve, 1 in Nominal, FNPT End Style, Domestic

CBPN:231881

MPN:0556018

UPC:098268432534

Price:
$2112.23 / EA

Prop 65:
Watts logo

DESCRIPTION

WATTS® Temperature/Pressure Relief Valve, Automatic Reseating, Series: LFN240X, 1 in Nominal, FNPT, 210 deg F, Media: Water, 3-1/4 in W x 6-1/4 in H, Domestic

This 1 in lead free automatic reseating temperature and pressure relief valve with a 6 in thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a lead free body with FNPT inlet and FNPT outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature and test lever. The temperature relief is 210 deg F and the pressure relief is 125 psi.

Specifications

BrandWATTS®
Nominal Size1 in
End StyleFNPT
Dimensions3-1/4 in W x 6-1/4 in H
Manufacturer NameWatts Water Technologies
MediaWater
SeriesLFN240, LFN240X
Temperature Rating210 deg F
TypeAutomatic Reseating
ApplicationCommercial Water Heater
Warranty1 year
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsANSI Z21.22 | ASME Specified | CSA Certified | FM Approved | HV Certified | MIL-V-136-12D Type I | NB Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Item Features

  • Lead free construction
  • Non-mechanical seat-to-disc alignment
  • Tamper resistant bonnet screws
  • 6 Inch thermostat length
  • Furnished with stainless steel thermostat
  • 730000 Btu/hr steam rating
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • 125 psi standard pressure settings

Standards

ANSI Z21.22|ASME Specified|CSA Certified|FM Approved|HV Certified|MIL-V-136-12D Type I|NB Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
