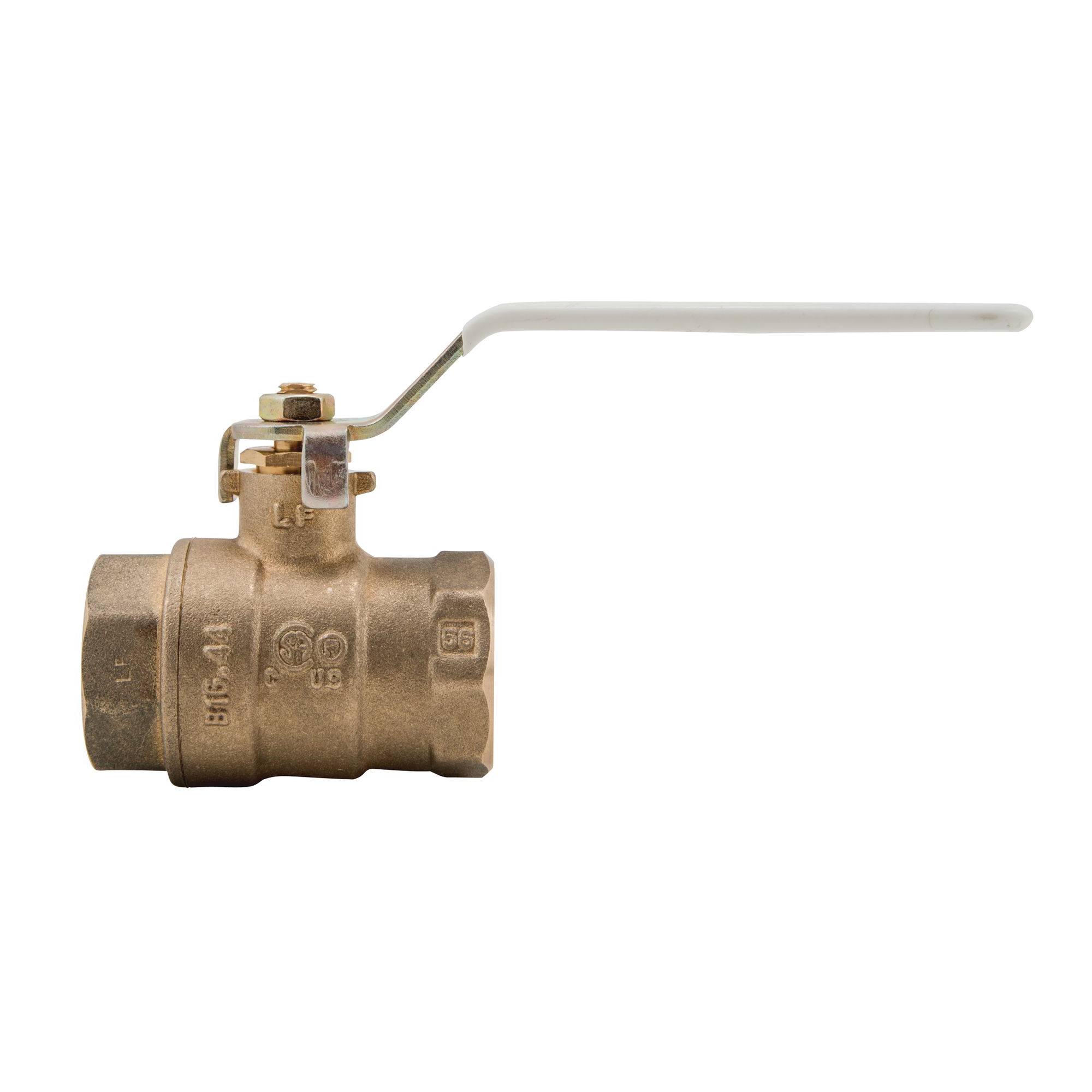

WATTS® 0555122 LFFBV-4 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Lead Free Brass Body, Full Port, PTFE Softgoods, Import
CBPN:210680
UPC:098268805482
MPN:0555122
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV-4, 1 in Nominal, FNPT End Style, 600 psi WOG Pressure, -40 to 400 deg F, Full Port, 15/16 in Orifice, Brass Ball, 2-13/16 in Inlet to Outlet Length, 2-7/16 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, PTFE Softgoods, Polished Chrome, Import
This 1 in 2-piece full port lead free ball valve is used in residential and commercial applications for a full range of liquids and gases. It features a lead free body with threaded end connections, bottom-loaded blow-out proof stem, virgin PTFE seat, thrust washer and adjustable stem packing seal, chrome plated lead free brass ball, lead free brass adapter and steel handle.
WATTS® 0555122 LFFBV-4 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Lead Free Brass Body, Full Port, PTFE Softgoods, Import
CBPN:210680
MPN:0555122
UPC:098268805482
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFFBV-4, 1 in Nominal, FNPT End Style, 600 psi WOG Pressure, -40 to 400 deg F, Full Port, 15/16 in Orifice, Brass Ball, 2-13/16 in Inlet to Outlet Length, 2-7/16 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, PTFE Softgoods, Polished Chrome, Import
This 1 in 2-piece full port lead free ball valve is used in residential and commercial applications for a full range of liquids and gases. It features a lead free body with threaded end connections, bottom-loaded blow-out proof stem, virgin PTFE seat, thrust washer and adjustable stem packing seal, chrome plated lead free brass ball, lead free brass adapter and steel handle.
Specifications
Item Features
- Metal-to-metal adapter body seal to eliminate adapter leaks after soldering
- Fluorocarbon elastomer stem O-Ring prevents stem leaks
- Adjustable stem packing gland provides longer service life
- Bottom loaded, blow-out proof stem
- 150 psi steam working pressure
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Chrome plated brass ball
- PTFE stem packing
