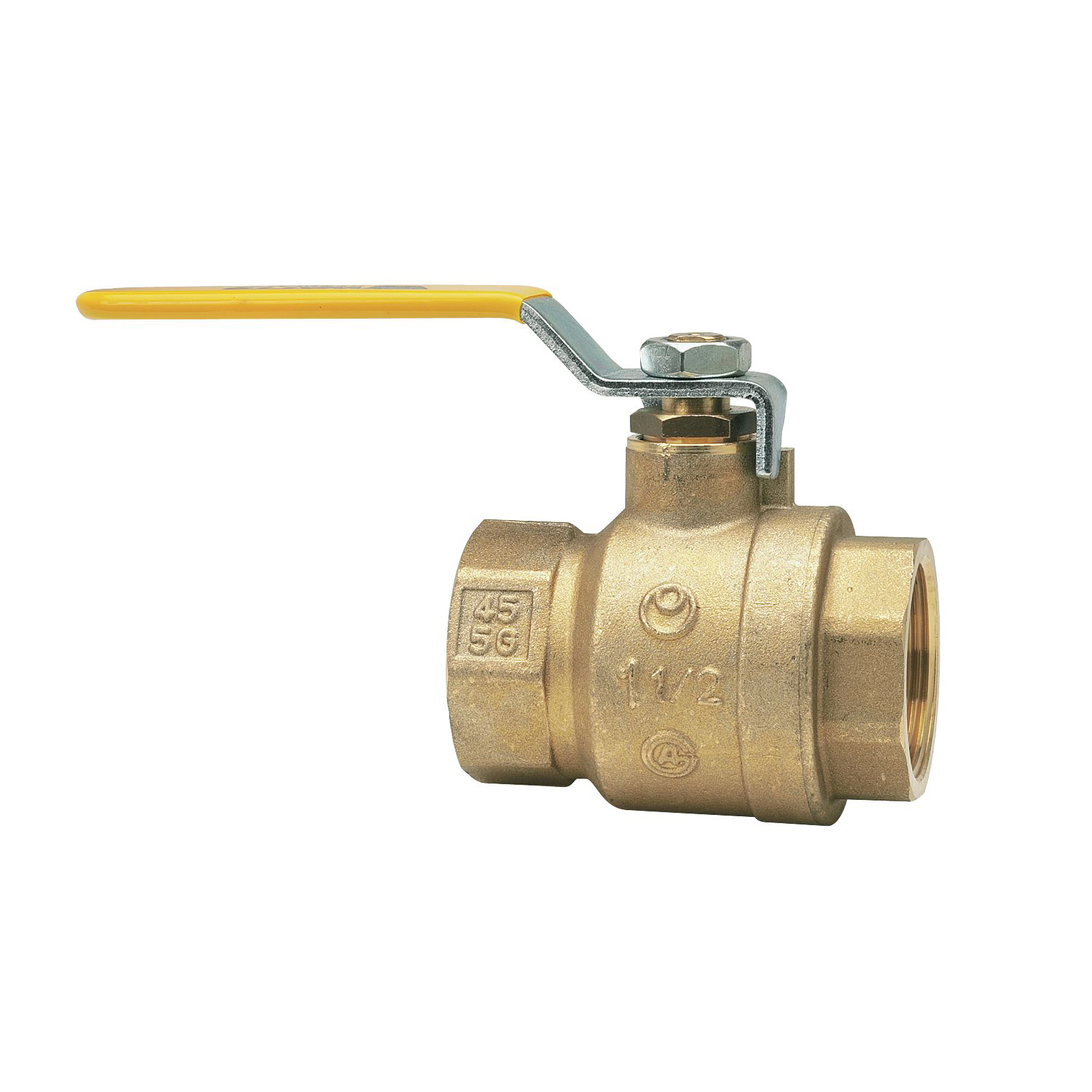

WATTS® 0547106 FBV-3C 2-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Forged Brass Body, Full Port, Fluorocarbon/Virgin PTFE Softgoods, Import
CBPN:197649
UPC:098268335880
MPN:0547106
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: FBV-3C, 1-1/2 in Nominal, FNPT End Style, 600 psi Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, Chrome Plated Brass Ball, 3-1/2 in Inlet to Outlet Length, 3-3/16 in Top to Inlet Center, Forged Brass Body, Brass Stem and PTFE Seat Trim, Fluorocarbon/Virgin PTFE Softgoods, Import
Series FBV-3C, FBVS-3C 2-Piece, Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blow-out proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter, and steel handle. Model FBV-3C has threaded end connections. Model FBV-3C-TH has tee handle with threaded connections. Model FBVS-3C has solder end connections. Model FBVS-3C-TH has tee handle with solder connections.
WATTS® 0547106 FBV-3C 2-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Forged Brass Body, Full Port, Fluorocarbon/Virgin PTFE Softgoods, Import
CBPN:197649
MPN:0547106
UPC:098268335880
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: FBV-3C, 1-1/2 in Nominal, FNPT End Style, 600 psi Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, Chrome Plated Brass Ball, 3-1/2 in Inlet to Outlet Length, 3-3/16 in Top to Inlet Center, Forged Brass Body, Brass Stem and PTFE Seat Trim, Fluorocarbon/Virgin PTFE Softgoods, Import
Series FBV-3C, FBVS-3C 2-Piece, Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blow-out proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter, and steel handle. Model FBV-3C has threaded end connections. Model FBV-3C-TH has tee handle with threaded connections. Model FBVS-3C has solder end connections. Model FBVS-3C-TH has tee handle with solder connections.
Specifications
Item Features
- Made of durable brass
- Fluorocarbon elastomer stem O-Ring prevents stem leaks
- Adjustable stem packing gland nut
- Bottom loaded, blow-out proof stem
- Machined chrome plated brass ball
- Recommended for open/close applications
- 150 psi steam working pressure
- Fluorocarbon elastomer O-ring and virgin PTFE stem packing seal/thrust washer
