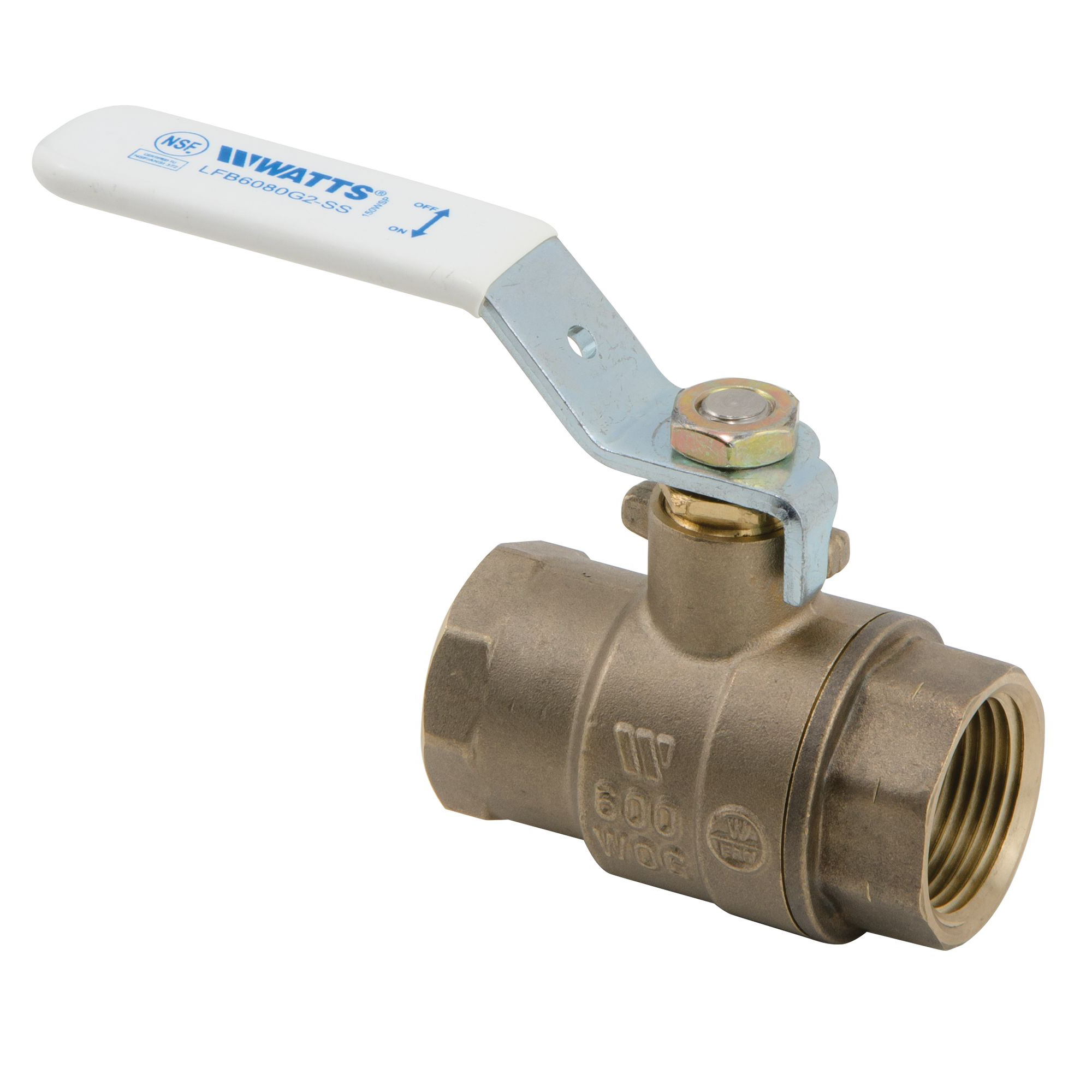

WATTS® 0450118 LFB6080G2 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Forged Bronze Body, Full Port, Virgin® PTFE/FKM Softgoods, Domestic
CBPN:195263
UPC:098268763706
MPN:0450118
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFB6080G2, 3/4 in Nominal, FNPT, 600 psi WOG/150 psi WSP, 0 to 400 deg F, Full Port, Media: Liquid/Gas/Water, 3/4 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 2-1/4 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Forged Bronze Body, 316 Stainless Steel/Virgin® PTFE Trim, Virgin® PTFE/FKM, Domestic
This 3/4 in lead free 2-piece full port ball valve with stainless steel ball and stem and NPT threaded end connections is used in commercial and industrial applications for a full range of liquids and gases. A full port orifice ensures minimal pressure drop, while the stainless steel ball and stem provide lasting service. It consists of Durafill® (carbon glass filled PTFE) seat, bottom loaded blowout proof stem, and adjustable stem packing. This ball valve is rated for 600 WOG/150 WSP.
WATTS® 0450118 LFB6080G2 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Forged Bronze Body, Full Port, Virgin® PTFE/FKM Softgoods, Domestic
CBPN:195263
MPN:0450118
UPC:098268763706
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFB6080G2, 3/4 in Nominal, FNPT, 600 psi WOG/150 psi WSP, 0 to 400 deg F, Full Port, Media: Liquid/Gas/Water, 3/4 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 2-1/4 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Forged Bronze Body, 316 Stainless Steel/Virgin® PTFE Trim, Virgin® PTFE/FKM, Domestic
This 3/4 in lead free 2-piece full port ball valve with stainless steel ball and stem and NPT threaded end connections is used in commercial and industrial applications for a full range of liquids and gases. A full port orifice ensures minimal pressure drop, while the stainless steel ball and stem provide lasting service. It consists of Durafill® (carbon glass filled PTFE) seat, bottom loaded blowout proof stem, and adjustable stem packing. This ball valve is rated for 600 WOG/150 WSP.
Specifications
Item Features
- White handles for easy lead free identification
- Minimal pressure drop due to large ports
- Blowout proof, pressure retaining stem
- 100% factory tested in USA
- Virgin® PTFE adjustable stem packing gland/thrust washer/FKM O-Ring
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 316 stainless steel stem shaft/Virgin® PTFE seat
