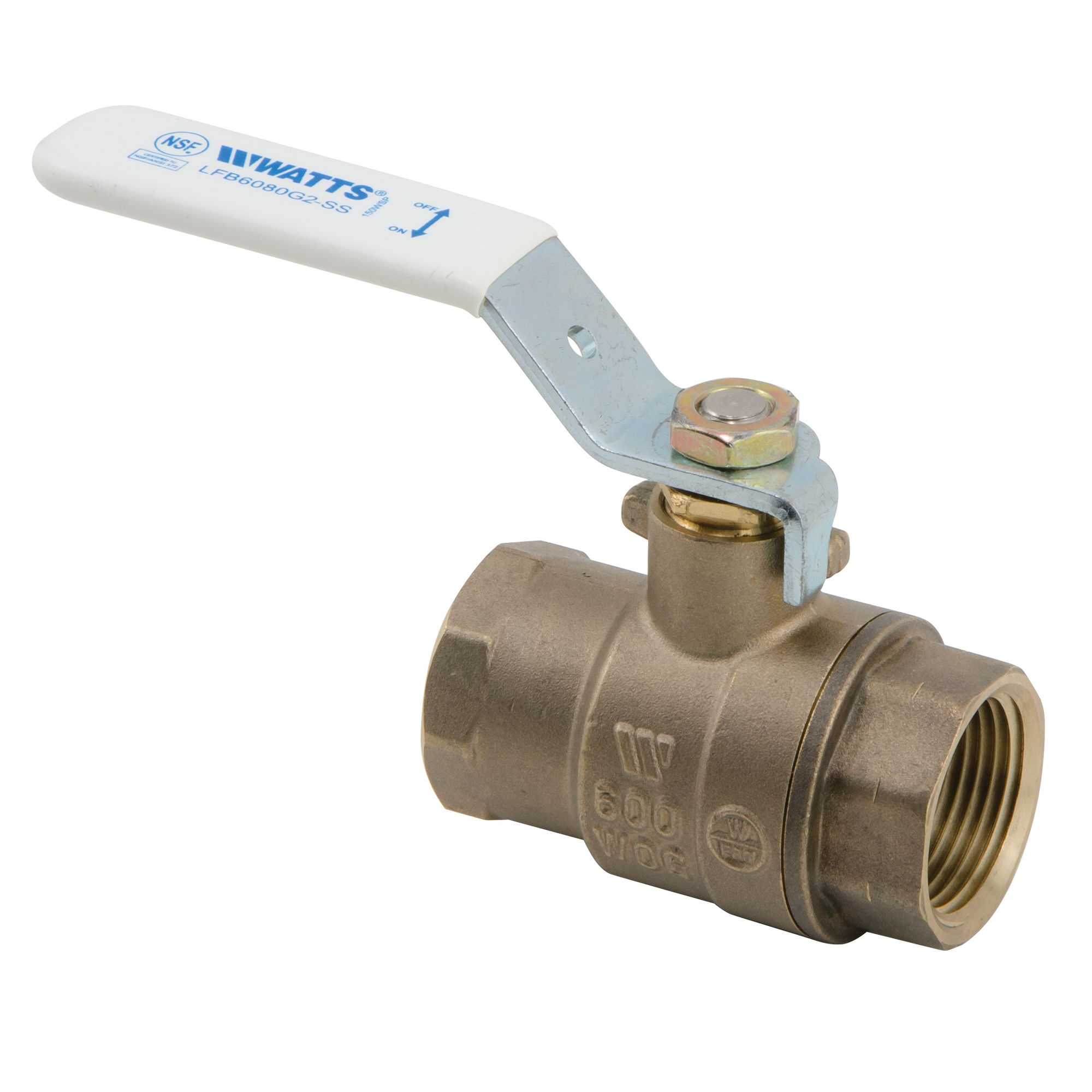

WATTS® 0450117 LFB6080G2-SS, 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Forged Bronze Body, Full Port, Virgin PTFE/Fluorocarbon Elastomer Softgoods, Domestic
CBPN:190975
UPC:098268763690
MPN:0450117
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFB6080G2-SS, 1/2 in Nominal, NPT End Style, 600 psi Pressure, 0 to 400 deg F, Full Port, Media: Gas/Liquids, Chrome Plated Brass Ball, 2 in Inlet to Outlet Length, 1-13/16 in Top to Inlet Center, Forged Bronze Body, Brass Stem Trim, Virgin PTFE/Fluorocarbon Elastomer Softgoods, Domestic
Series LFB6080G2, LFB6081G2 2-Piece, Full Port, Lead Free bronze Ball Valves are used in commercial and industrial applications for a full range of liquids and gasses. They feature a blow-out proof pressure full-port orifice which ensures minimal pressure drop. Model LFB6080G2 has threaded NPT end connections and Model LFB6081G2 has solder end connections. The Series FB6080G2 and LFB6081G2 features Lead Free construction to comply with Lead Free installation requirements.
WATTS® 0450117 LFB6080G2-SS, 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Forged Bronze Body, Full Port, Virgin PTFE/Fluorocarbon Elastomer Softgoods, Domestic
CBPN:190975
MPN:0450117
UPC:098268763690
DESCRIPTION
WATTS® Ball Valve, 2-Piece, Series: LFB6080G2-SS, 1/2 in Nominal, NPT End Style, 600 psi Pressure, 0 to 400 deg F, Full Port, Media: Gas/Liquids, Chrome Plated Brass Ball, 2 in Inlet to Outlet Length, 1-13/16 in Top to Inlet Center, Forged Bronze Body, Brass Stem Trim, Virgin PTFE/Fluorocarbon Elastomer Softgoods, Domestic
Series LFB6080G2, LFB6081G2 2-Piece, Full Port, Lead Free bronze Ball Valves are used in commercial and industrial applications for a full range of liquids and gasses. They feature a blow-out proof pressure full-port orifice which ensures minimal pressure drop. Model LFB6080G2 has threaded NPT end connections and Model LFB6081G2 has solder end connections. The Series FB6080G2 and LFB6081G2 features Lead Free construction to comply with Lead Free installation requirements.
Specifications
Standards
ASME B 1.20.1 Full-Pipe Thread|BAA Compliant|NSF 372 CertifiedItem Features
- Lead free forged bronze body and adapter
- Stainless steel ball and stem
- Minimal pressure drop due to large ports
- Blow-out proof, pressure retaining stem
- White handle for easy Lead free identification
- Dual stem seal
- Reversible handle that provides flexibility when installing multiple ball valves in a series, where space is tight
- Metal-to-metal adapter seal with high temperature thread sealant
- Excessive heat can harm the seats
- After soldering, the packing nut may have to be tightened
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Virgin PTFE stem packing seal and fluorocarbon elastomer O-ring
