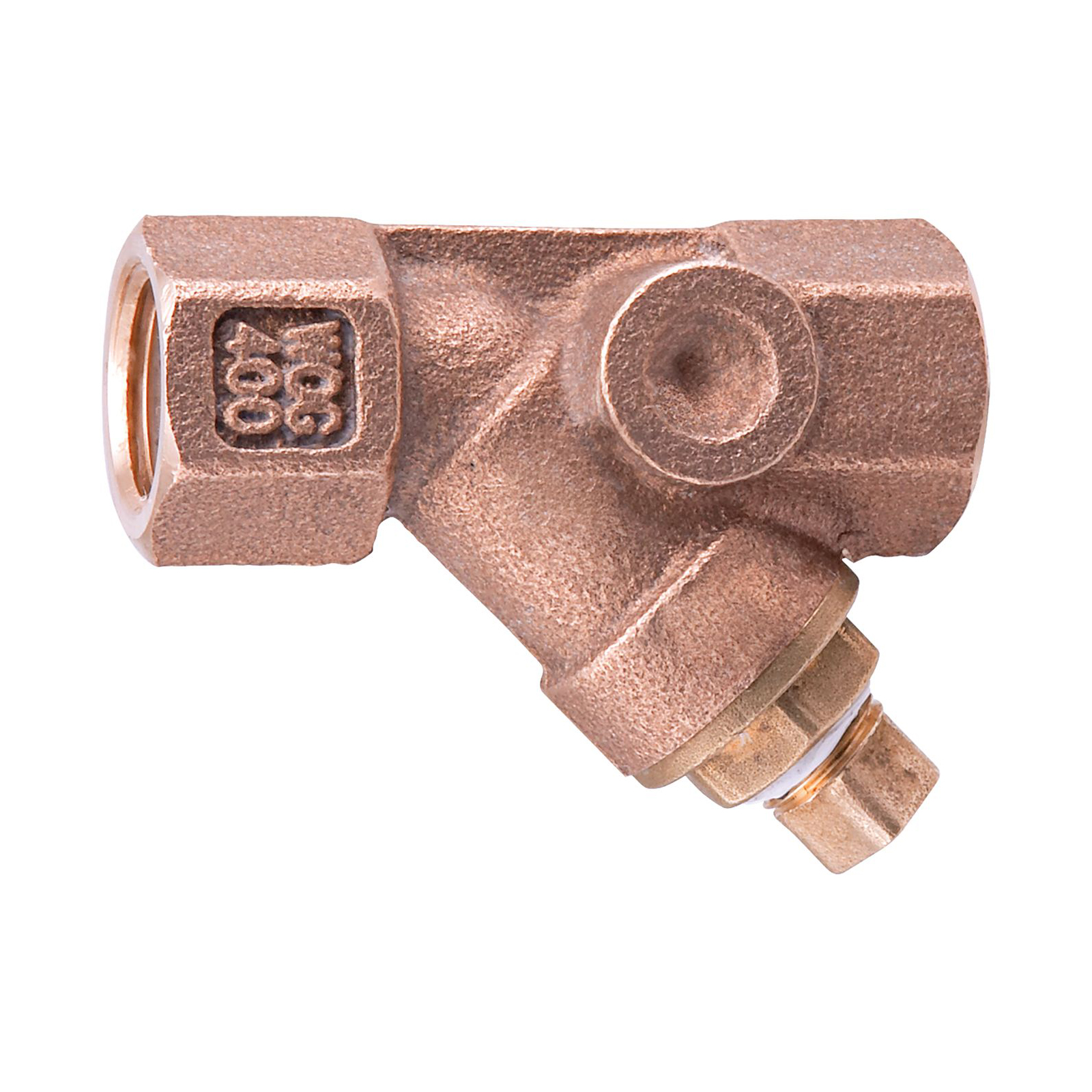

WATTS® 0379115 LF777SI Wye Strainer With #20 Mesh Screen, 1-1/2 in Nominal, 4-7/8 in OAL, FNPT Connection, EPDM Softgoods, Import
CBPN:190029
UPC:098268285635
MPN:0379115
DESCRIPTION
WATTS® Wye Strainer, Series: LF777SI, 1-1/2 in Nominal, 4-7/8 in Overall Length, FNPT, 3/4 in NPT Blow-Off, EPDM, Cast Copper Silicon Alloy Body, Import
Series LF777SI, LFS777SI Lead Free brass wye-pattern strainers feature a wye-pattern, lead Free brass body stainless steel screen and solid tapped retainer cap with NBR gasket. Model LF777SI comes with threaded connections and is available in sizes 3/8 to 3 in (10 to 80mm). Model LFS777SI comes with solder connections and is available in sizes 1/2 to 2 in. (15 to 50mm). Model LF777SI - maximum pressure (non shock): 400psi at 210 deg F WOG, 125 psi at 353 deg F WSP. Model LFS777SI - maximum pressure (non shock): 400 psi at 150 deg F 15 psi at 250 deg F WSP.
WATTS® 0379115 LF777SI Wye Strainer With #20 Mesh Screen, 1-1/2 in Nominal, 4-7/8 in OAL, FNPT Connection, EPDM Softgoods, Import
CBPN:190029
MPN:0379115
UPC:098268285635
DESCRIPTION
WATTS® Wye Strainer, Series: LF777SI, 1-1/2 in Nominal, 4-7/8 in Overall Length, FNPT, 3/4 in NPT Blow-Off, EPDM, Cast Copper Silicon Alloy Body, Import
Series LF777SI, LFS777SI Lead Free brass wye-pattern strainers feature a wye-pattern, lead Free brass body stainless steel screen and solid tapped retainer cap with NBR gasket. Model LF777SI comes with threaded connections and is available in sizes 3/8 to 3 in (10 to 80mm). Model LFS777SI comes with solder connections and is available in sizes 1/2 to 2 in. (15 to 50mm). Model LF777SI - maximum pressure (non shock): 400psi at 210 deg F WOG, 125 psi at 353 deg F WSP. Model LFS777SI - maximum pressure (non shock): 400 psi at 150 deg F 15 psi at 250 deg F WSP.
Specifications
Standards
NSF 61-G|US Green Building Council Member|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harmItem Features
- Retainer cap tapped for closure plug
- Lead Free brass 45 deg wye-pattern strainer for efficient flow and long life
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Cast copper silicon alloy retainer cap
- EPDM gasket
