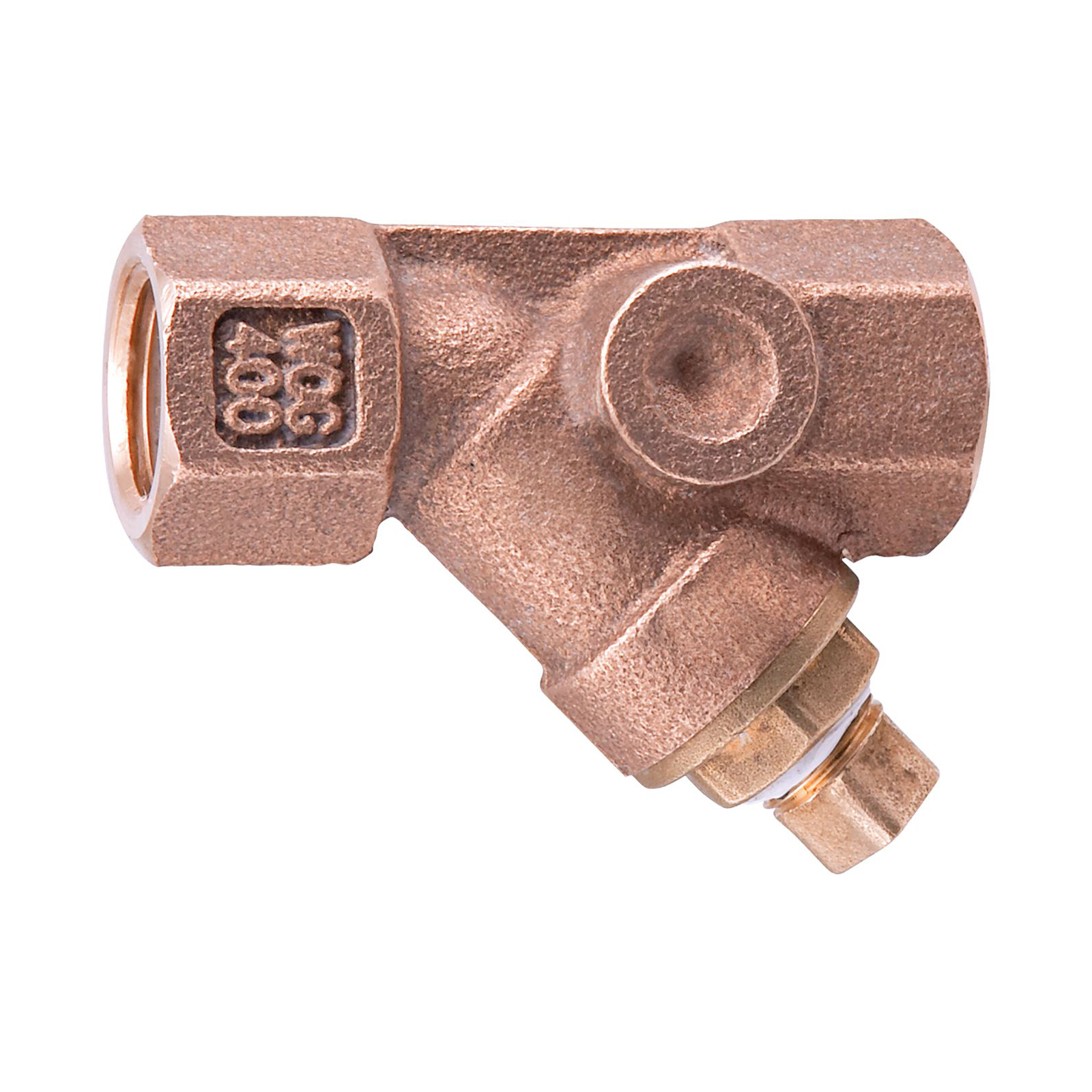

WATTS® 0379111 LF777SI Wye Strainer, 1/2 in Nominal, 2-3/4 in OAL, FNPT Connection, EPDM Softgoods, Import
CBPN:179157
UPC:098268285598
MPN:0379111
DESCRIPTION
WATTS® Wye Strainer, Series: LF777SI, 1/2 in Nominal, 2-3/4 in Overall Length, FNPT, 1/4 in FNPT Blow-Off, EPDM, Brass Body, Import
Series LF777SI, LFS777SI Lead Free Brass Wye-Pattern Strainers feature a wye-pattern, Lead Free brass body stainless steel screen and solid tapped retainer cap with NBR gasket. Model LF777SI comes with threaded connections and is available in sizes 3/8 to 3 in. (10 to 80mm). Model LFS777SI comes with solder connections and is available in sizes 1/2 to 2 in. (15 to 50mm). Model LF777SI - Maximum Pressure (non shock): 400psi (27.6 bar) at 210 deg F (99 deg C) WOG, 125 psi (8.6 bar) at 353 deg F (178.3 deg C) WSP. Model LFS777SI - Maximum Pressure (non shock): 400psi (27.6 bar) at 150 deg F (66 deg C) 15psi (103 kPa) at 250 deg F (121 deg C) WSP.
WATTS® 0379111 LF777SI Wye Strainer, 1/2 in Nominal, 2-3/4 in OAL, FNPT Connection, EPDM Softgoods, Import
CBPN:179157
MPN:0379111
UPC:098268285598
DESCRIPTION
WATTS® Wye Strainer, Series: LF777SI, 1/2 in Nominal, 2-3/4 in Overall Length, FNPT, 1/4 in FNPT Blow-Off, EPDM, Brass Body, Import
Series LF777SI, LFS777SI Lead Free Brass Wye-Pattern Strainers feature a wye-pattern, Lead Free brass body stainless steel screen and solid tapped retainer cap with NBR gasket. Model LF777SI comes with threaded connections and is available in sizes 3/8 to 3 in. (10 to 80mm). Model LFS777SI comes with solder connections and is available in sizes 1/2 to 2 in. (15 to 50mm). Model LF777SI - Maximum Pressure (non shock): 400psi (27.6 bar) at 210 deg F (99 deg C) WOG, 125 psi (8.6 bar) at 353 deg F (178.3 deg C) WSP. Model LFS777SI - Maximum Pressure (non shock): 400psi (27.6 bar) at 150 deg F (66 deg C) 15psi (103 kPa) at 250 deg F (121 deg C) WSP.
Specifications
Item Features
- Retainer cap tapped for closure plug
- Lead free cast copper silicon alloy body and cap
- EPDM gasket
