WATTS® 0123239

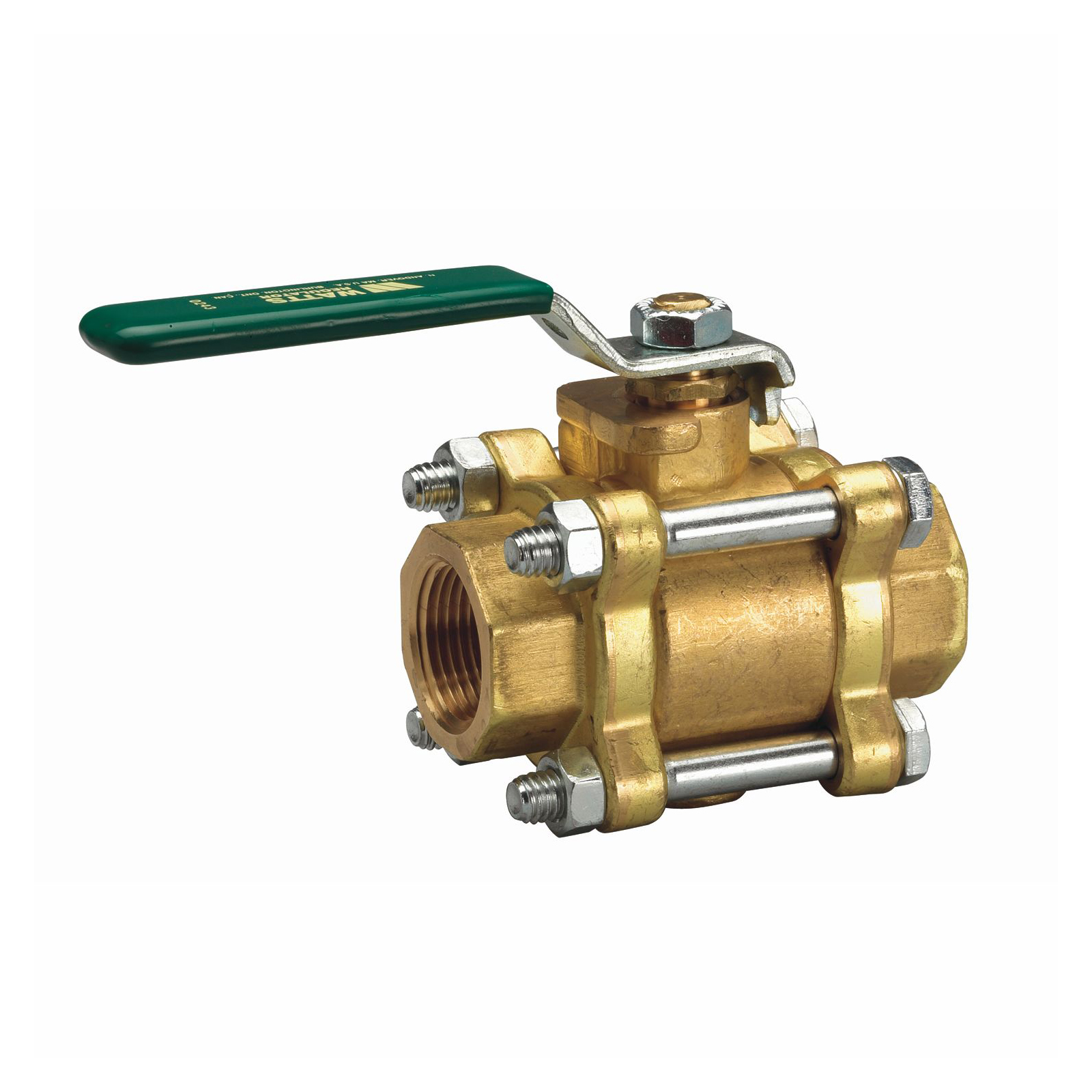

WATTS® 0123239 3-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Brass Body, Full Port, Domestic

CBPN:269465

UPC:098268689723

MPN:0123239

Price:
$790.31 / EA

DESCRIPTION

WATTS® Ball Valve, 3-Piece, 1-1/2 in Nominal, Thread End Style, 600 psi WOG Pressure, 0 to 450 deg F, Full Port, 1-1/2 in Orifice, 316 Stainless Steel Ball, 5 in Inlet to Outlet Length, 3-1/2 in Top to Inlet Center, Brass Body, 316 Stainless Steel Stem and PTFE Seat Trim, Domestic/Import: Domestic

This 1-1/2 in 3-piece full port lead free ball valve is used in commercial and industrial applications. It features an in-line maintenance design that offers serviceability of all operating parts without disturbing the piping system. The full port orifice ensures maximum flow capacity. This valve consists of a lead free body with threaded NPT end connections, reinforced PTFE Durafill® seat, chrome plated lead free brass ball and blow-out proof stem to provide safety and high operating pressure/temperature limits.

WATTS® 0123239 3-Piece Ball Valve, 1-1/2 in Nominal, FNPT End Style, Brass Body, Full Port, Domestic

CBPN:269465

MPN:0123239

UPC:098268689723

Price:
$790.31 / EA


DESCRIPTION

WATTS® Ball Valve, 3-Piece, 1-1/2 in Nominal, Thread End Style, 600 psi WOG Pressure, 0 to 450 deg F, Full Port, 1-1/2 in Orifice, 316 Stainless Steel Ball, 5 in Inlet to Outlet Length, 3-1/2 in Top to Inlet Center, Brass Body, 316 Stainless Steel Stem and PTFE Seat Trim, Domestic/Import: Domestic

This 1-1/2 in 3-piece full port lead free ball valve is used in commercial and industrial applications. It features an in-line maintenance design that offers serviceability of all operating parts without disturbing the piping system. The full port orifice ensures maximum flow capacity. This valve consists of a lead free body with threaded NPT end connections, reinforced PTFE Durafill® seat, chrome plated lead free brass ball and blow-out proof stem to provide safety and high operating pressure/temperature limits.

Specifications

Brand: WATTS®
Weight: 8.9 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Rating: 600 psi WOG
Body Material: Brass
Port Type: Full
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 5 in
Manufacturer Name: Watts Water Technologies
Orifice Size: 1-1/2 in
Series: LFB6800
Temperature Rating: 0 to 450 deg F
Top to Inlet Center: 3-1/2 in
Trim Material: 316 Stainless Steel Stem and PTFE Seat
Type: 3-Piece
Includes: Adjustable Packing Gland
Application: Commercial and Industrial Applications
Warranty: 1 year
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: BAA/ARRA Compliant

Item Features

  • Blowout proof pressure retaining stem
  • Lift-out design
  • Carbon/glass reinforced PTFE Durafill® valve seats
  • Blow-out proof, pressure retaining stem
  • Vinyl insulator on heavy duty, zinc plated carbon steel handles
  • Low operating torque
  • Each valve factory tested
  • 125 psi working steam pressure
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight

Standards

BAA/ARRA Compliant
