WATTS® 0067451

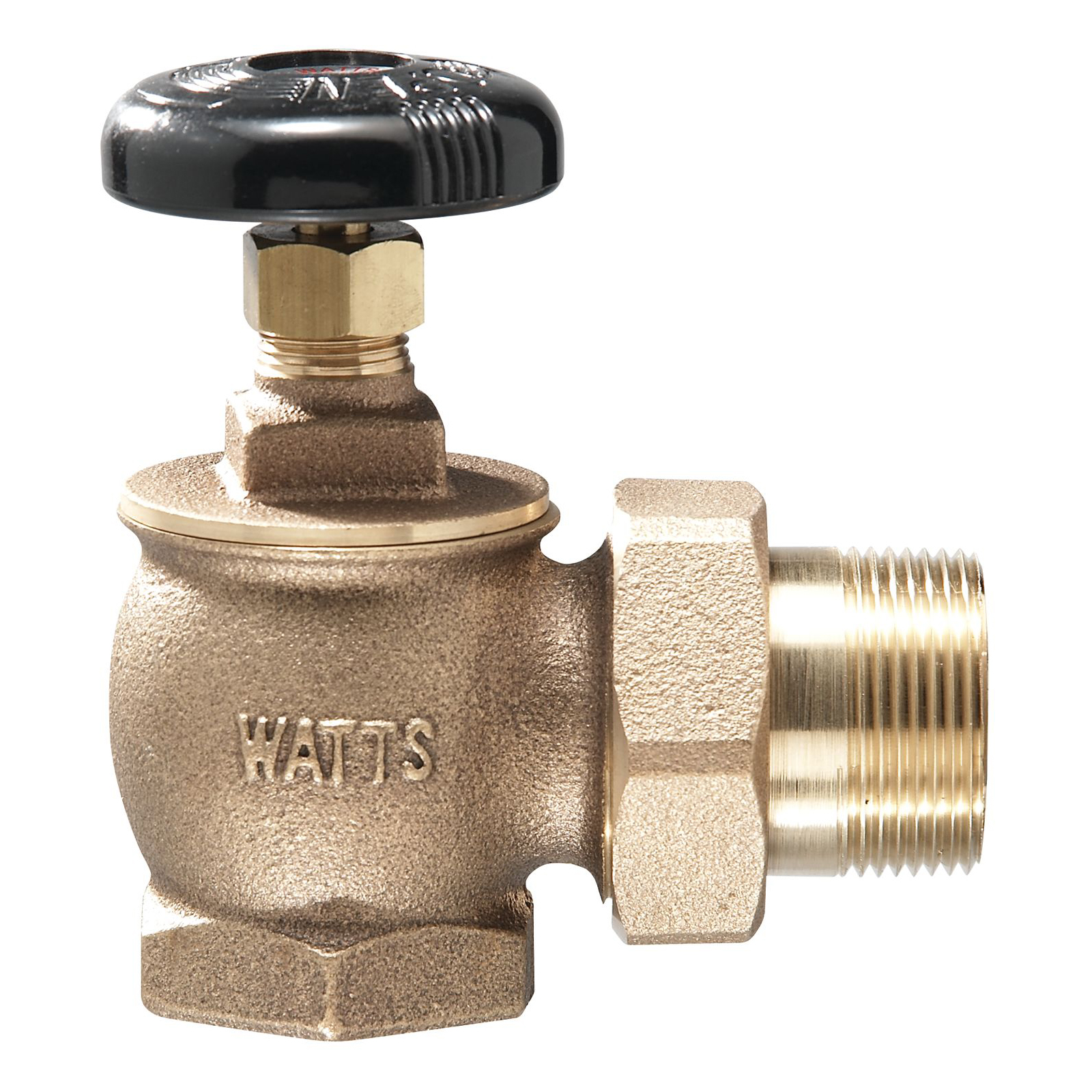

WATTS® 0067451 Radiator Angle Valve, 3/4 in Nominal, FNPT x Male Union End Style, 60 psi Pressure, Bronze Body, Import

CBPN:199113

UPC:098268394870

MPN:0067451

Price:
$53.40 / EA
Prop 65:

DESCRIPTION

WATTS® Radiator Angle Valve, 3/4 in Nominal, FNPT x Male Union End Style, 60 psi Pressure, Media: Steam, Handwheel Actuator, 2-9/16 in Inlet to Outlet Length, 3-3/16 in Top to Inlet Center, Bronze Body, Brass Trim, Rubber Disc Softgoods, Import

Series RA-1-AP Steam Radiator Valves are used as shutoff valves in steam or hydronic heating systems. They feature a bronze body and angle pattern with FIP x male union connections.. Maximum Working Pressure: 60psi (4.2 bar) non-shock water, 15psi (1 bar) non-shock saturated steam. Model RA-1-SW comes with straight pattern.

WATTS® 0067451 Radiator Angle Valve, 3/4 in Nominal, FNPT x Male Union End Style, 60 psi Pressure, Bronze Body, Import

CBPN:199113

MPN:0067451

UPC:098268394870

Price:
$53.40 / EA

Prop 65:
Watts logo

DESCRIPTION

WATTS® Radiator Angle Valve, 3/4 in Nominal, FNPT x Male Union End Style, 60 psi Pressure, Media: Steam, Handwheel Actuator, 2-9/16 in Inlet to Outlet Length, 3-3/16 in Top to Inlet Center, Bronze Body, Brass Trim, Rubber Disc Softgoods, Import

Series RA-1-AP Steam Radiator Valves are used as shutoff valves in steam or hydronic heating systems. They feature a bronze body and angle pattern with FIP x male union connections.. Maximum Working Pressure: 60psi (4.2 bar) non-shock water, 15psi (1 bar) non-shock saturated steam. Model RA-1-SW comes with straight pattern.

Specifications

BrandWATTS®
Nominal Size3/4 in
End StyleFNPT x Male Union
Pressure Rating60 psi
Body MaterialBronze
Actuator TypeHandwheel
Inlet to Outlet Length2-9/16 in
Manufacturer NameWatts Water Technologies
MediaSteam
SeriesRA-1-AP
Softgoods MaterialRubber Disc
Top to Inlet Center3-3/16 in
Trim MaterialBrass
ApplicationHeating Systems
WarrantyLimited
Domestic/ImportImport
Country of OriginTW
Standards and ApprovalsAISI 1020 | ASTM B584 C84400/B16/209-1100/B584 C85700 | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Standards

AISI 1020|ASTM B584 C84400/B16/209-1100/B584 C85700 | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Item Features

  • Constructed of heavy-duty bronze
  • Rising Stem
  • Renewable composition disc
  • Working pressure non-shock
  • 15 psi saturated steam
  • Plastic handwheel
  • Brass packing and disc nut
  • Aluminum name plate
  • Brass swivel and retainer
  • For hydronic heating systems
