WATTS® 0067450

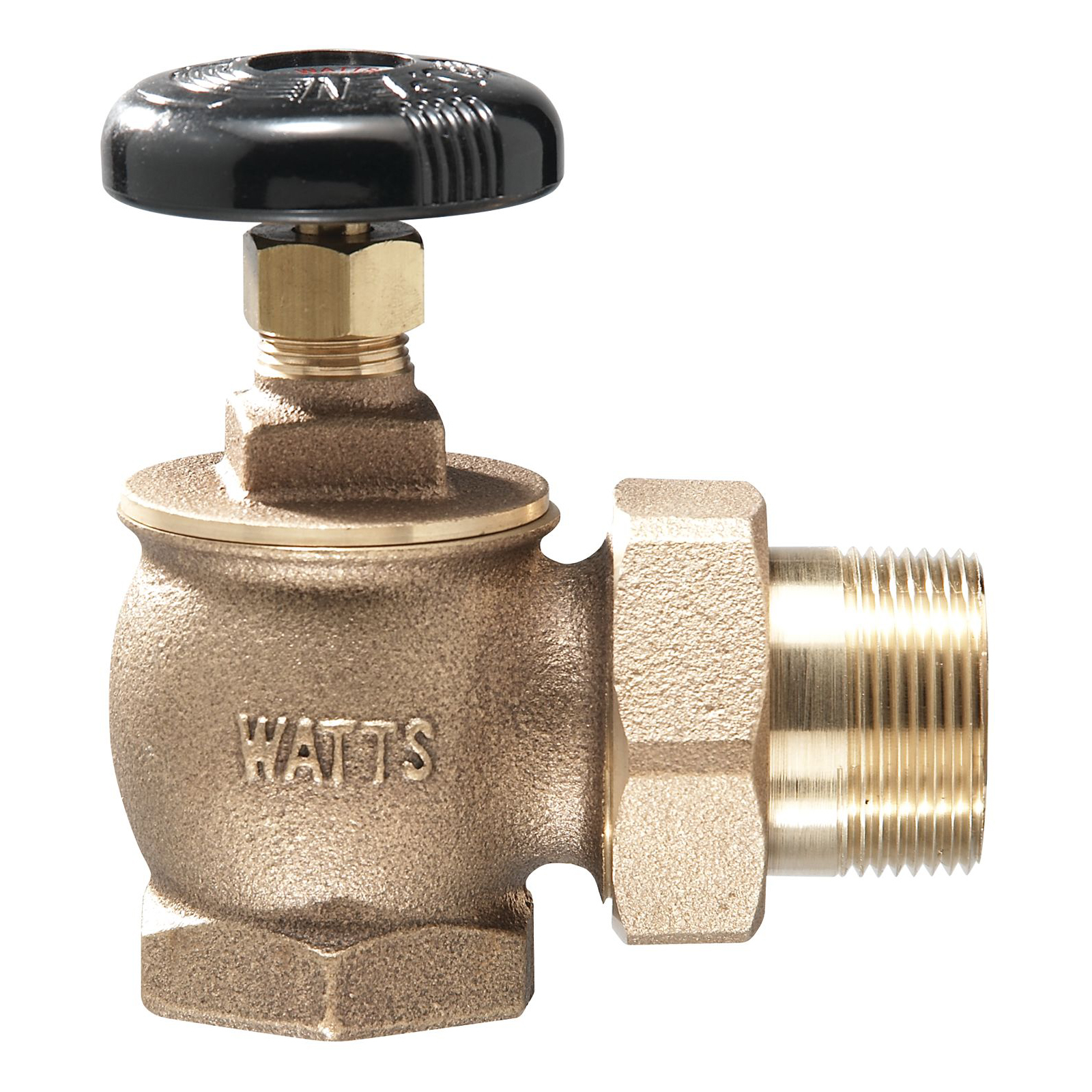

WATTS® 0067450 Radiator Angle Valve, 1/2 in Nominal, FNPT x Male Union End Style, 60 psi Pressure, Bronze Body, Import

CBPN:45907

UPC:098268394863

MPN:0067450

Price:
$42.38 / EA
Prop 65:

DESCRIPTION

WATTS® Radiator Angle Valve, 1/2 in Nominal, FNPT x Male Union End Style, 60 psi Pressure, Media: Water, Handwheel Actuator, 2-1/4 in Inlet to Outlet Length, 3 in Top to Inlet Center, Bronze Body, Brass Trim, Rubber Disc Softgoods, Import

Series RA-1-AP Steam Radiator Valves are used as shutoff valves in steam or hydronic heating systems. They feature a bronze body and angle pattern with FIP x male union connections.. Maximum Working Pressure: 60psi (4.2 bar) non-shock water, 15psi (1 bar) non-shock saturated steam. Model RA-1-SW comes with straight pattern.

WATTS® 0067450 Radiator Angle Valve, 1/2 in Nominal, FNPT x Male Union End Style, 60 psi Pressure, Bronze Body, Import

CBPN:45907

MPN:0067450

UPC:098268394863

Price:
$42.38 / EA

Prop 65:
Watts logo

DESCRIPTION

WATTS® Radiator Angle Valve, 1/2 in Nominal, FNPT x Male Union End Style, 60 psi Pressure, Media: Water, Handwheel Actuator, 2-1/4 in Inlet to Outlet Length, 3 in Top to Inlet Center, Bronze Body, Brass Trim, Rubber Disc Softgoods, Import

Series RA-1-AP Steam Radiator Valves are used as shutoff valves in steam or hydronic heating systems. They feature a bronze body and angle pattern with FIP x male union connections.. Maximum Working Pressure: 60psi (4.2 bar) non-shock water, 15psi (1 bar) non-shock saturated steam. Model RA-1-SW comes with straight pattern.

Specifications

BrandWATTS®
Weight0.87 lbs
Nominal Size1/2 in
End StyleFNPT x Male Union
Pressure Rating60 psi
Body MaterialBronze
Actuator TypeHandwheel
Inlet to Outlet Length2-1/4 in
Manufacturer NameWatts Water Technologies
MediaWater
SeriesRA-1-AP
Softgoods MaterialRubber Disc
Top to Inlet Center3 in
Trim MaterialBrass
ApplicationHeating Systems
WarrantyLimited
Domestic/ImportImport
Country of OriginTW
Standards and ApprovalsAISI 1020 | ASTM B584 C84400/B16/209-1100/B584 C85700 | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Item Features

  • Constructed of heavy-duty bronze
  • Rising Stem
  • Renewable composition disc
  • Steam radiator valves are used as shutoff valves in steam or hydronic heating systems
  • max working Pressure 60psi non-shock water
  • Model RA-1-SW comes with straight pattern
  • For hydronic heating systems

Standards

AISI 1020|ASTM B584 C84400/B16/209-1100/B584 C85700 | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
