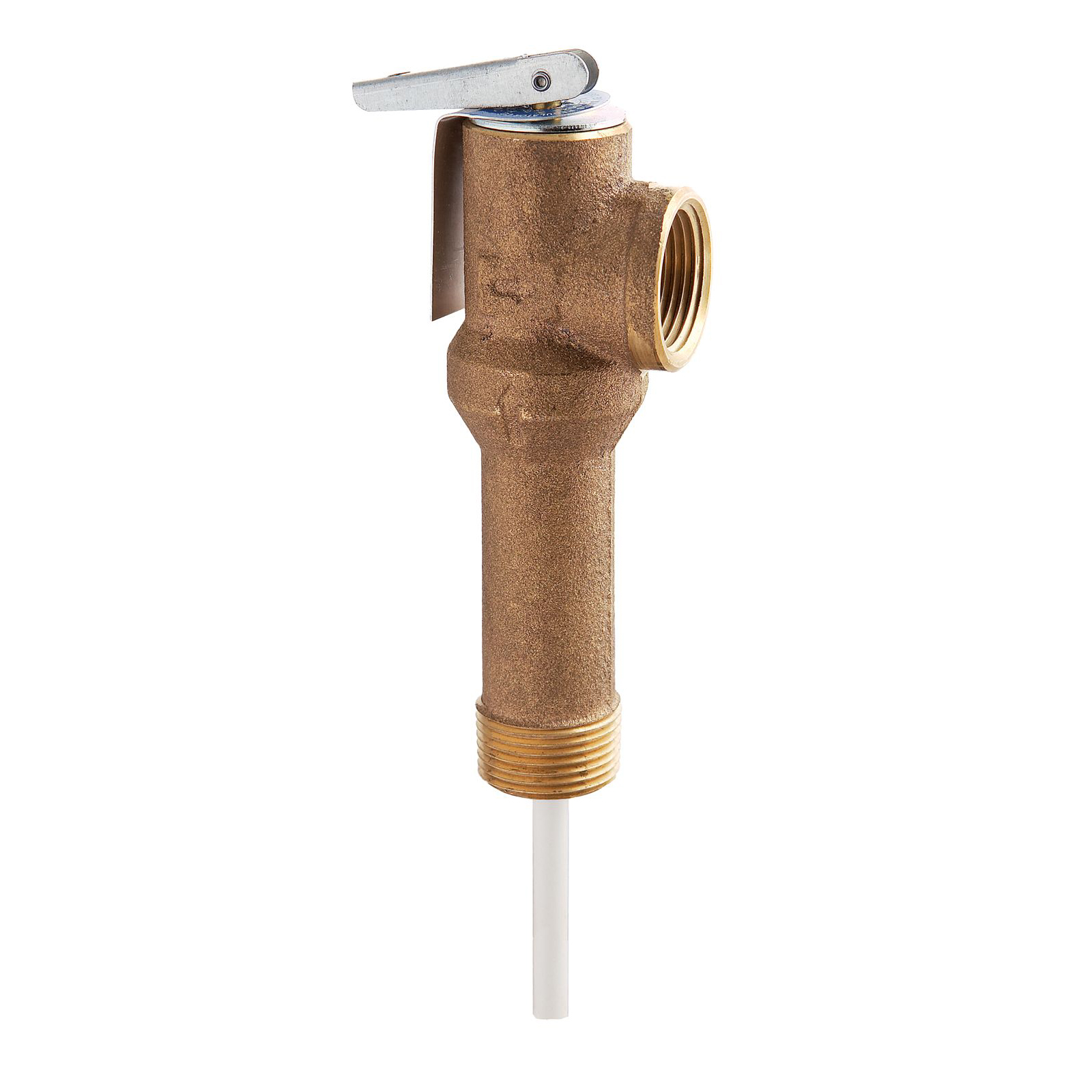

WATTS® 0066440 LF100XL Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, Bronze Body, Domestic
CBPN:268917
UPC:098268651126
MPN:0066440
DESCRIPTION
WATTS® Temperature/Pressure Relief Valve, Series: LF100XL, 3/4 in Nominal, MNPT x FNPT End Style, 210 deg F, Spring-Loaded Latch-Lock Handle Actuator, Bronze Body, Domestic
This 3/4 in temperature and pressure relief valve is used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 Btu/hr. It features a bronze body with MNPT inlet and FNPT outlet connections, unique thermostat with special thermo-bonded coating and a test lever. This valve has an extended inlet shank for water heaters with up to 3 in insulation. ASME rated and CSA listed. Temperature relief is 210 deg F.
WATTS® 0066440 LF100XL Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, Bronze Body, Domestic
CBPN:268917
MPN:0066440
UPC:098268651126
DESCRIPTION
WATTS® Temperature/Pressure Relief Valve, Series: LF100XL, 3/4 in Nominal, MNPT x FNPT End Style, 210 deg F, Spring-Loaded Latch-Lock Handle Actuator, Bronze Body, Domestic
This 3/4 in temperature and pressure relief valve is used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 Btu/hr. It features a bronze body with MNPT inlet and FNPT outlet connections, unique thermostat with special thermo-bonded coating and a test lever. This valve has an extended inlet shank for water heaters with up to 3 in insulation. ASME rated and CSA listed. Temperature relief is 210 deg F.
Specifications
Item Features
- Self closing safety valve for hot water heater
- Unique thermostat with special thermo-bonded coating
- Stainless steel spring
- 150 psi standard pressure settings
