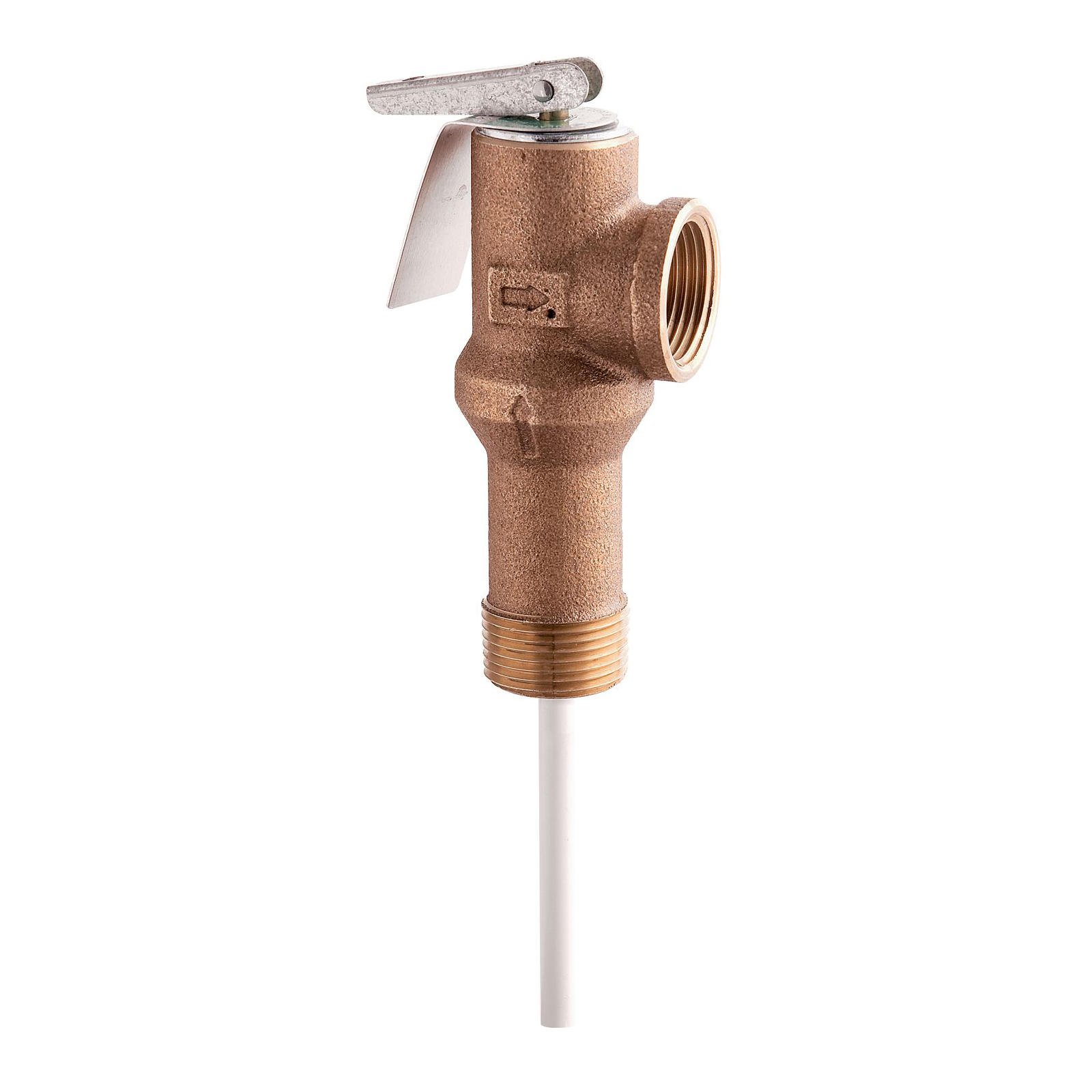

WATTS® 0066133 Extended Shank Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, Bronze Body, Domestic
CBPN:36396
UPC:098268214673
MPN:0066133
DESCRIPTION
WATTS® Temperature/Pressure Relief Valve, Extended Shank, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F, Media: Water, Bronze Body, Domestic
Series SL100XL, L100XL, LL100XL and LLL100XL Extended Shank Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. They feature an extended shank for installation on water heaters with extra thick insulation as well as a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model SL100XL is suitable for water heaters with up to 1-3/4 in. (45mm) of insulation. Model L100XL is suitable for water heaters with up to 2 in. (51mm) of insulation. Model LL100XL is suitable for water heaters with up to 2-1/2 in. (64mm) of insulation. Model LLL100XL is suitable for water heaters with up to 3 in. (76mm) of insulation. Series SL100XL, L100XL, LL100XL and LLL100XL are ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
WATTS® 0066133 Extended Shank Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, Bronze Body, Domestic
CBPN:36396
MPN:0066133
UPC:098268214673
DESCRIPTION
WATTS® Temperature/Pressure Relief Valve, Extended Shank, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F, Media: Water, Bronze Body, Domestic
Series SL100XL, L100XL, LL100XL and LLL100XL Extended Shank Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. They feature an extended shank for installation on water heaters with extra thick insulation as well as a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model SL100XL is suitable for water heaters with up to 1-3/4 in. (45mm) of insulation. Model L100XL is suitable for water heaters with up to 2 in. (51mm) of insulation. Model LL100XL is suitable for water heaters with up to 2-1/2 in. (64mm) of insulation. Model LLL100XL is suitable for water heaters with up to 3 in. (76mm) of insulation. Series SL100XL, L100XL, LL100XL and LLL100XL are ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
Specifications
Standards
ANSI Z21.22|ASME Section IV|CSA Certified|MIL-V-136-12D|SA® Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.Item Features
- Model SL100XL extended inlet model for installations with thick insulation suitable for water heaters with up to 1-3/4 in (445 mm) of insulation
- Model L100XL Extended inlet model for installations with thick insulation Suitable for water heaters with up to 2 in (508mm) of insulation
- Model LL100XL Extra extended inlet model Suitable for water heaters with up to 2-1 /2 in (635 mm) of insulation
- Model LLL100XL Extra extended inlet model Suitable for water heaters with up to 3 in (76mm) of insulation
- Thermostats with special protective coating
- Stainless steel spring
- Thermostat is accurate and proven exclusively designed and manufactured by WATTS®
- Inquire with governing authorities for local installation requirements
