WATTS® 0066110

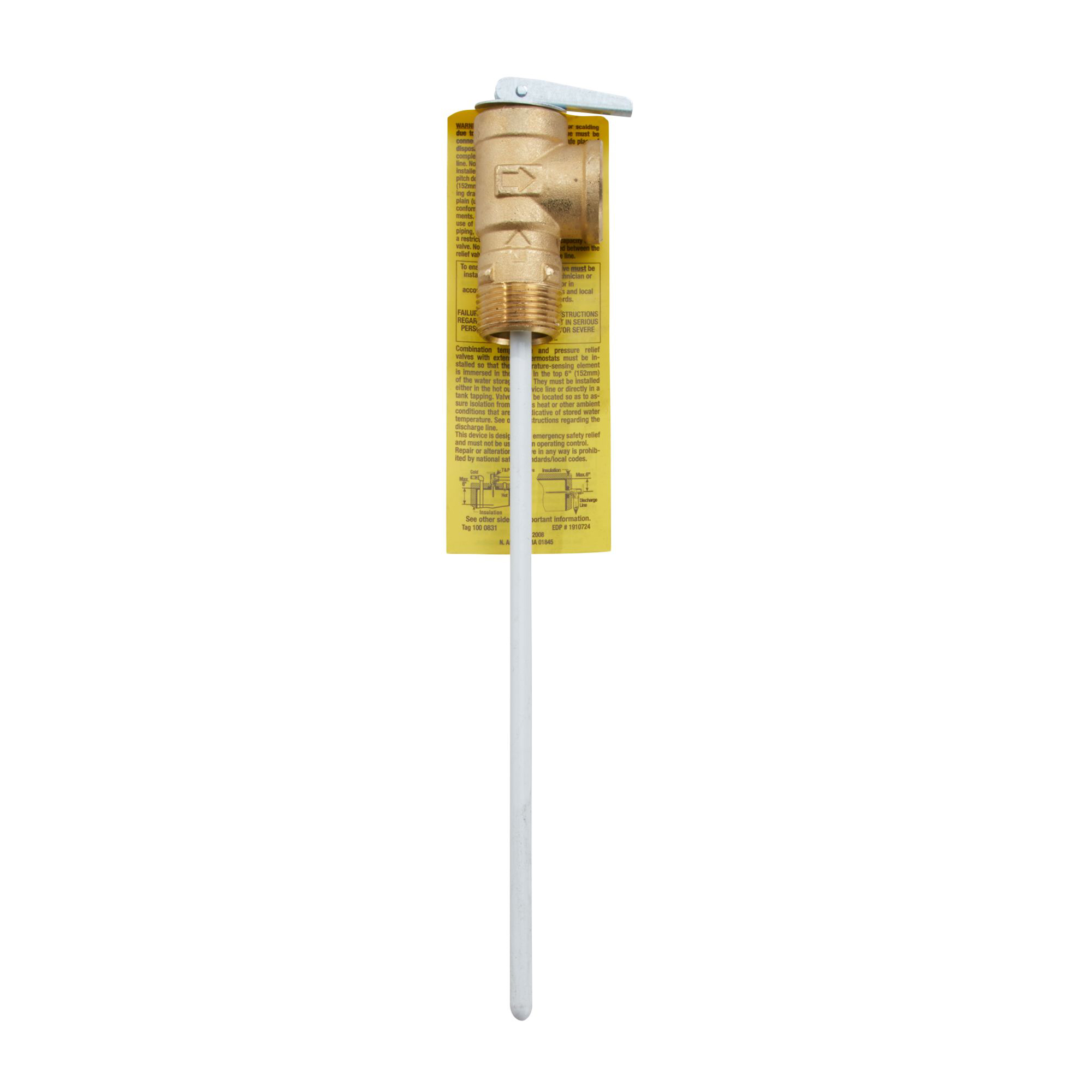

WATTS® 0066110 100XL Temperature/Pressure Relief Valve, 3/4 in Nominal, 150 psi Pressure, Brass Body

CBPN:52253

UPC:098268007237

MPN:0066110

Price:
$48.78 / EA
Prop 65:

DESCRIPTION

WATTS® Temperature/Pressure Relief Valve, Series: 100XL, 3/4 in Nominal, 150 psi, 210 deg F, Media: Water, Brass Body

Series 100XL Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model 100XL-8 is also available with 8 in. (200mm) extension thermostat. Series 100XL is ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).

WATTS® 0066110 100XL Temperature/Pressure Relief Valve, 3/4 in Nominal, 150 psi Pressure, Brass Body

CBPN:52253

MPN:0066110

UPC:098268007237

Price:
$48.78 / EA

Prop 65:
Watts logo

DESCRIPTION

WATTS® Temperature/Pressure Relief Valve, Series: 100XL, 3/4 in Nominal, 150 psi, 210 deg F, Media: Water, Brass Body

Series 100XL Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model 100XL-8 is also available with 8 in. (200mm) extension thermostat. Series 100XL is ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).

Specifications

BrandWATTS®
Weight0.8 lbs
Nominal Size3/4 in
Body MaterialBrass
Manufacturer NameWatts Water Technologies
MediaWater
Pressure Rating150 psi
Series100XL
Temperature Rating210 deg F
ApplicationWater Heater and Hot Water Storage Tank
WarrantyLimited
Standards and ApprovalsASME Specified | CSA Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Item Features

  • Unique thermostat with special thermo-bonded coating
  • Temperature and pressure relief valve to protect the heater from excessive pressure and temperature
  • Features a unique thermostat with special thermo-bonded coating
  • Stainless steel spring
  • Thermostat is accurate and proven exclusively designed and manufactured by WATTS®
  • This device is designed for emergency safety relief and shall not be used as an operating control
  • Inquire with governing authorities for local installation requirements
  • Maximum system operating pressure must not exceed 75% of valve set pressure
