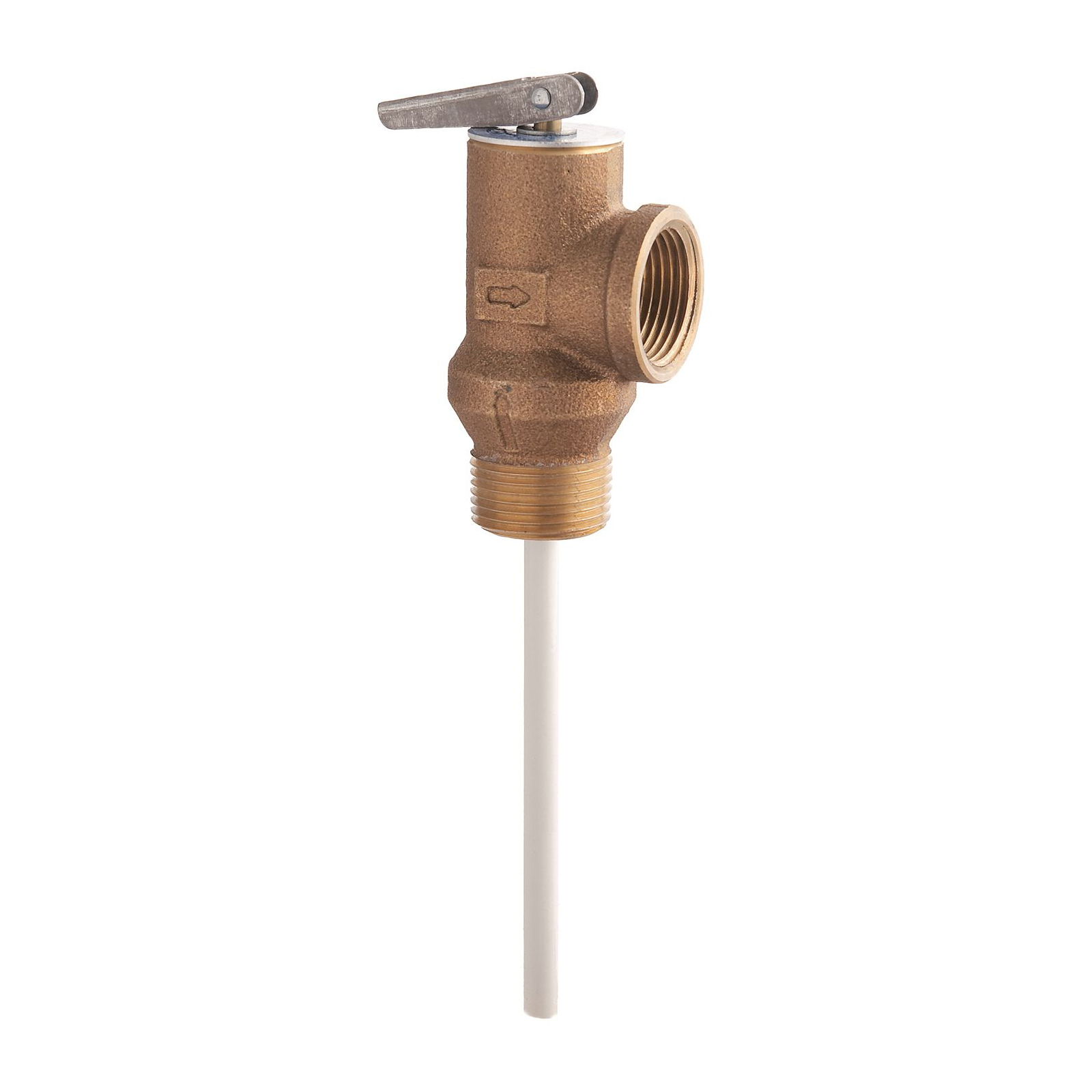

WATTS® 0066100 100XL Temperature/Pressure Relief Valve, 3/4 in Nominal, 150 psi Pressure, Brass Body, Domestic
CBPN:7976
UPC:098268000016
MPN:0066100
DESCRIPTION
WATTS® Temperature/Pressure Relief Valve, Series: 100XL, 3/4 in Nominal, 150 psi, 210 deg F, Media: Water, Brass Body, Domestic
Series 100XL Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model 100XL-8 is also available with 8 in. (200mm) extension thermostat. Series 100XL is ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
WATTS® 0066100 100XL Temperature/Pressure Relief Valve, 3/4 in Nominal, 150 psi Pressure, Brass Body, Domestic
CBPN:7976
MPN:0066100
UPC:098268000016
DESCRIPTION
WATTS® Temperature/Pressure Relief Valve, Series: 100XL, 3/4 in Nominal, 150 psi, 210 deg F, Media: Water, Brass Body, Domestic
Series 100XL Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model 100XL-8 is also available with 8 in. (200mm) extension thermostat. Series 100XL is ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
Specifications
Item Features
- Required safety device on all water heaters
- Prevents water heater from blowing up
- Features a unique thermostat with special thermo-bonded coating
- Stainless steel spring
- Thermostat is accurate and proven exclusively designed and manufactured by WATTS®
- This device is designed for emergency safety relief and shall not be used as an operating control
- Inquire with governing authorities for local installation requirements
- Maximum system operating pressure must not exceed 75% of valve set pressure
