WATTS® 0063235

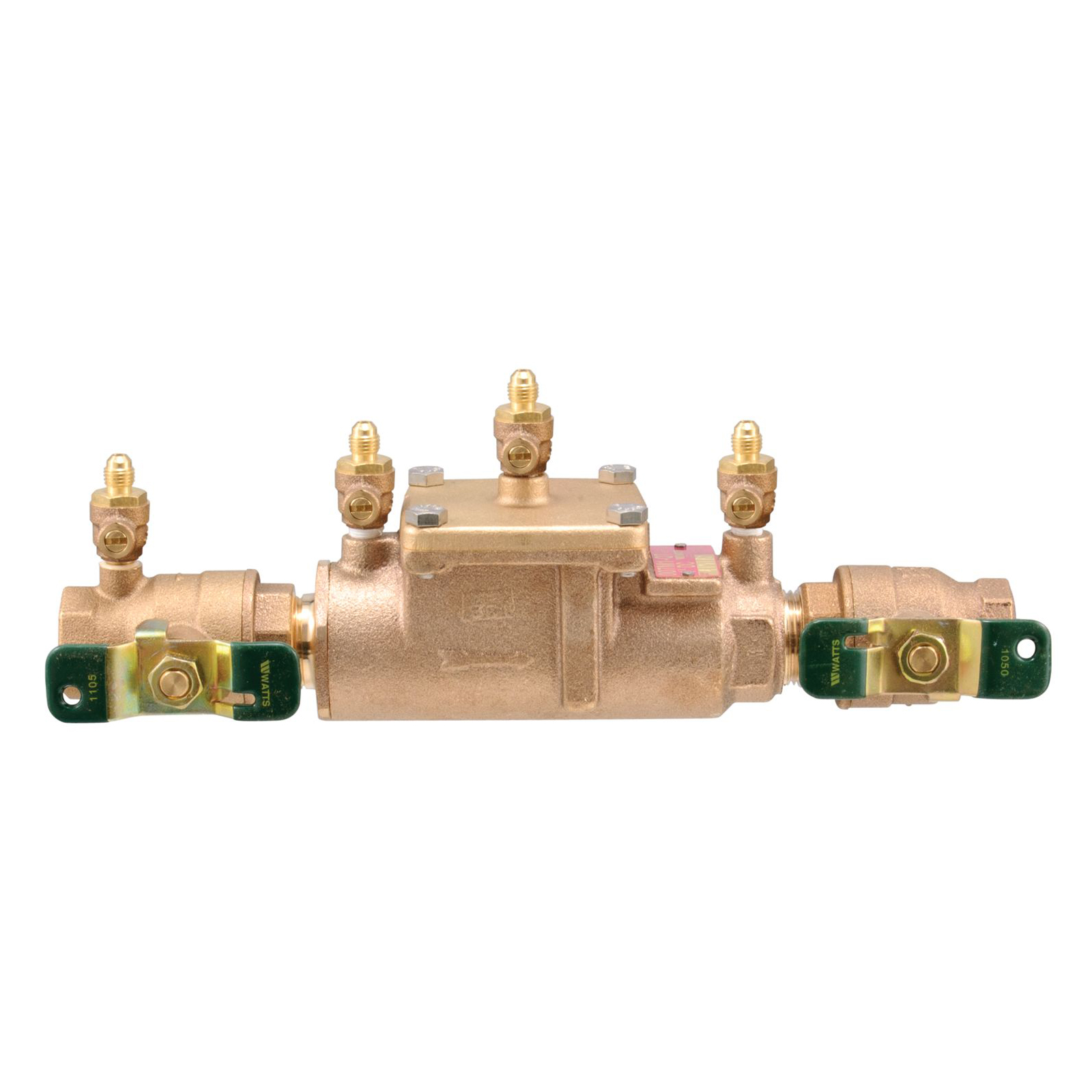

WATTS® 0063235 LF007M1-QT Double Check Valve Assembly, 2 in Nominal, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body, Domestic

CBPN:190264

UPC:098268209778

MPN:0063235

Price:
$904.32 / EA
Prop 65:

DESCRIPTION

WATTS® Double Check Valve Assembly, Series: LF007M1-QT, 2 in Nominal, 175 psi, 33 to 180 deg F, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body, Fused Epoxy Coated, 19-1/2 in L, Domestic

Series LF007 Double Check Valve Assemblies shall be installed at referenced cross-connections to prevent the backflow of polluted water into the potable water supply. Only those cross-connections identified by local inspection authorities as non-health hazard shall be allowed the use of an approved double check valve assembly. The LF007 features Lead Free construction to comply with Lead Free installation requirements. Check with local authority having jurisdiction regarding vertical orientation, frequency of testing or other installation requirements. The valve shall meet the requirements of ASSE Std. 1015 and AWWA Std. C510. Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California.

WATTS® 0063235 LF007M1-QT Double Check Valve Assembly, 2 in Nominal, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body, Domestic

CBPN:190264

MPN:0063235

UPC:098268209778

Price:
$904.32 / EA

Prop 65:
Watts logo

DESCRIPTION

WATTS® Double Check Valve Assembly, Series: LF007M1-QT, 2 in Nominal, 175 psi, 33 to 180 deg F, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body, Fused Epoxy Coated, 19-1/2 in L, Domestic

Series LF007 Double Check Valve Assemblies shall be installed at referenced cross-connections to prevent the backflow of polluted water into the potable water supply. Only those cross-connections identified by local inspection authorities as non-health hazard shall be allowed the use of an approved double check valve assembly. The LF007 features Lead Free construction to comply with Lead Free installation requirements. Check with local authority having jurisdiction regarding vertical orientation, frequency of testing or other installation requirements. The valve shall meet the requirements of ASSE Std. 1015 and AWWA Std. C510. Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California.

Specifications

BrandWATTS®
Nominal Size2 in
Ball Valve/Gate Valve TypeQuarter-Turn Ball Valve
Body MaterialCast Copper Silicon Alloy
Dimensions19-1/2 in L
FinishFused Epoxy Coated
Manufacturer NameWatts Water Technologies
Pressure Rating175 psi
SeriesLF007, LF007M1-QT
Temperature Rating33 to 180 deg F
Includes(4) Test Cocks
ApplicationNon-Health Hazard
Warranty1 year Limited
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASSE 1015 | AWWA C510 | CSA B64.5 | IAPMO PS31 | NSF Approved | UPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Item Features

  • Ease of maintenance only one cover
  • Replaceable seat and discs
  • Modular design
  • Low pressure drop
  • Top mounted resilient seated test cocks
