WATTS® 0062306

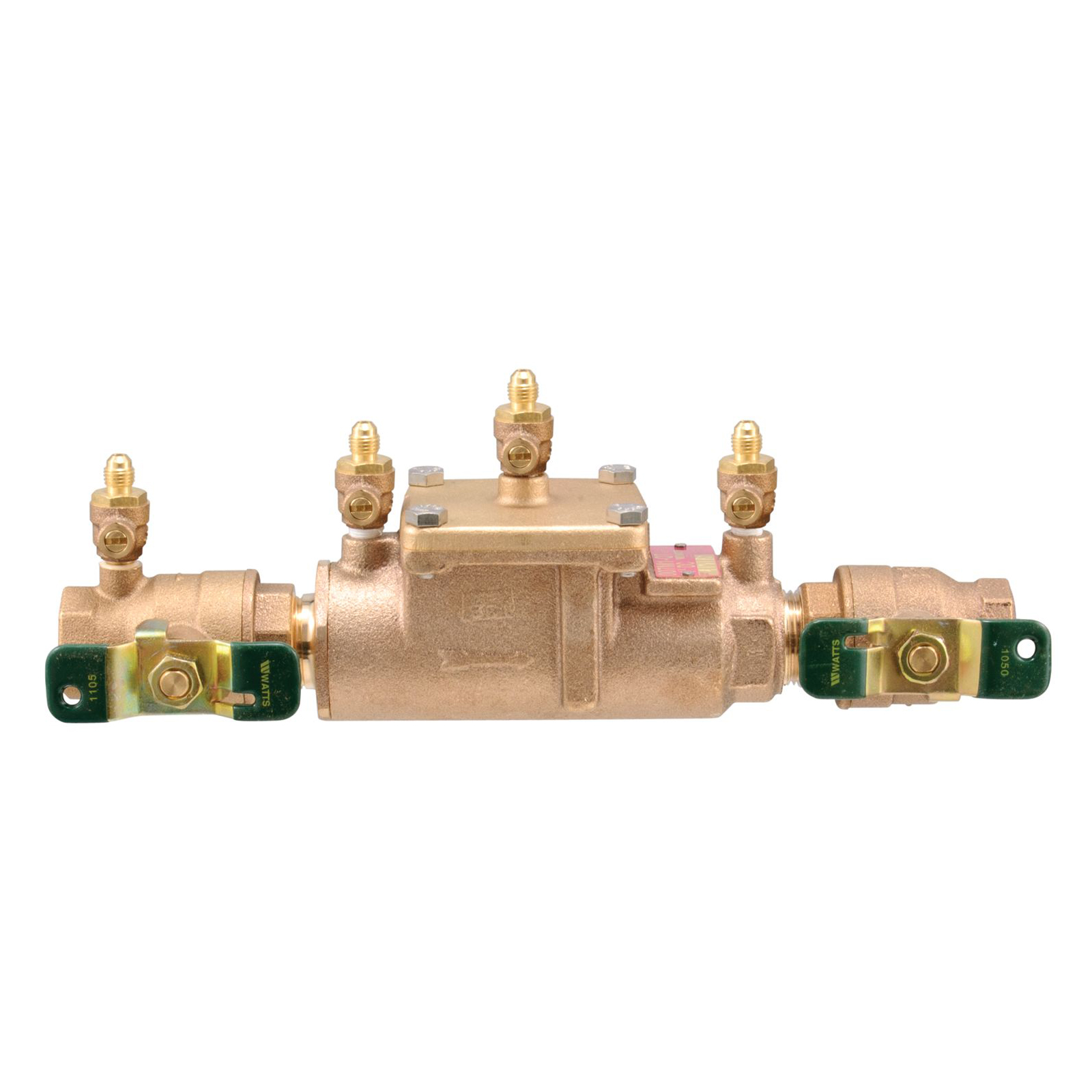

WATTS® 0062306 007M1-QT Double Check Valve Assembly, 1 in Nominal, Quarter-Turn Ball Valve, Bronze Body, Domestic

CBPN:75945

UPC:098268005080

MPN:0062306

Price:
$390.17 / EA
Prop 65:

DESCRIPTION

WATTS® Double Check Valve Assembly, Series: 007M1-QT, 1 in Nominal, 175 psi, 33 to 180 deg F, Quarter-Turn Ball Valve, Bronze Body, 13-1/4 in L x 5-1/8 in H, Domestic

Series 007 Double Check Valve Assemblies prevent the backflow of contaminated water into the potable water supply. It consists of a bronze body construction that is easy to maintain and service. Series 007 is ideal at referenced cross-connections identified as non-health hazard applications. Check with local inspection authorities for installation requirements.

WATTS® 0062306 007M1-QT Double Check Valve Assembly, 1 in Nominal, Quarter-Turn Ball Valve, Bronze Body, Domestic

CBPN:75945

MPN:0062306

UPC:098268005080

Price:
$390.17 / EA

Prop 65:
Watts logo

DESCRIPTION

WATTS® Double Check Valve Assembly, Series: 007M1-QT, 1 in Nominal, 175 psi, 33 to 180 deg F, Quarter-Turn Ball Valve, Bronze Body, 13-1/4 in L x 5-1/8 in H, Domestic

Series 007 Double Check Valve Assemblies prevent the backflow of contaminated water into the potable water supply. It consists of a bronze body construction that is easy to maintain and service. Series 007 is ideal at referenced cross-connections identified as non-health hazard applications. Check with local inspection authorities for installation requirements.

Specifications

BrandWATTS®
Weight12 lbs
Nominal Size1 in
Ball Valve/Gate Valve TypeQuarter-Turn Ball Valve
Body MaterialBronze
Dimensions13-1/4 in L x 5-1/8 in H
Manufacturer NameWatts Water Technologies
Pressure Rating175 psi
Series007, 007M1-QT
Temperature Rating33 to 180 deg F
Includes(4) Test Cocks, Tee Handle, (2) Positive Seating Check Modules With Captured Springs and Rubber Seat Discs
ApplicationNon-Health Hazard
Warranty1 year Limited
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsApproved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California | ASSE 1015 | AWWA C510 | CSA B64.5 | IAPMO PS31 | UPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Item Features

  • Bronze body for durability
  • Modular compact design
  • Ease of maintenance only one cover
  • Top entry
  • Low pressure drop
  • Top mounted resilient seated test cocks
  • Cast bronze construction
  • Replaceable seats and seat discs
