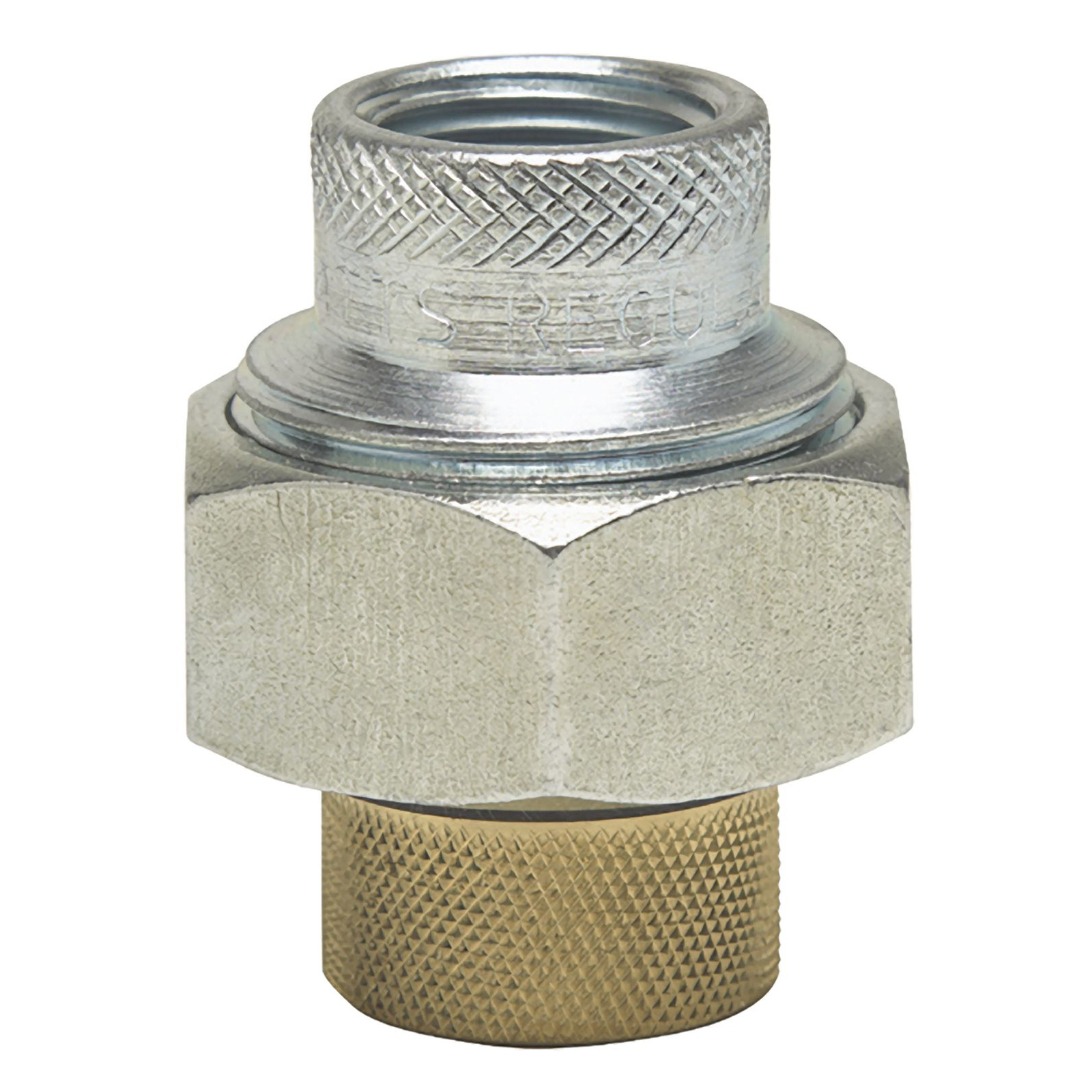

WATTS® 0009877 Dielectric Union, 1-1/4 in Nominal, FNPT x FBP End Style, Brass, Domestic
CBPN:231030
UPC:098268430325
MPN:0009877
DESCRIPTION
WATTS® Dielectric Union, 1-1/4 in Nominal, FNPT x FBP, 2-3/4 in Length, 250 psi, Brass, 180 deg F, 2-3/4 in W, Domestic
Series LF3003 Lead Free Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female iron pipe thread to female brass pipe thread connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3003 is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping.
WATTS® 0009877 Dielectric Union, 1-1/4 in Nominal, FNPT x FBP End Style, Brass, Domestic
CBPN:231030
MPN:0009877
UPC:098268430325
DESCRIPTION
WATTS® Dielectric Union, 1-1/4 in Nominal, FNPT x FBP, 2-3/4 in Length, 250 psi, Brass, 180 deg F, 2-3/4 in W, Domestic
Series LF3003 Lead Free Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female iron pipe thread to female brass pipe thread connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3003 is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping.
Specifications
Item Features
- Meets federal specifications for tensile strength and thread end connections
- Female iron pipe thread to female brass pipe threaded connections
- Designed and manufactured to the highest quality standards
- Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover
- Steel adapter and malleable iron nut
- Polysulfone insulator
- Buna-N gasket
