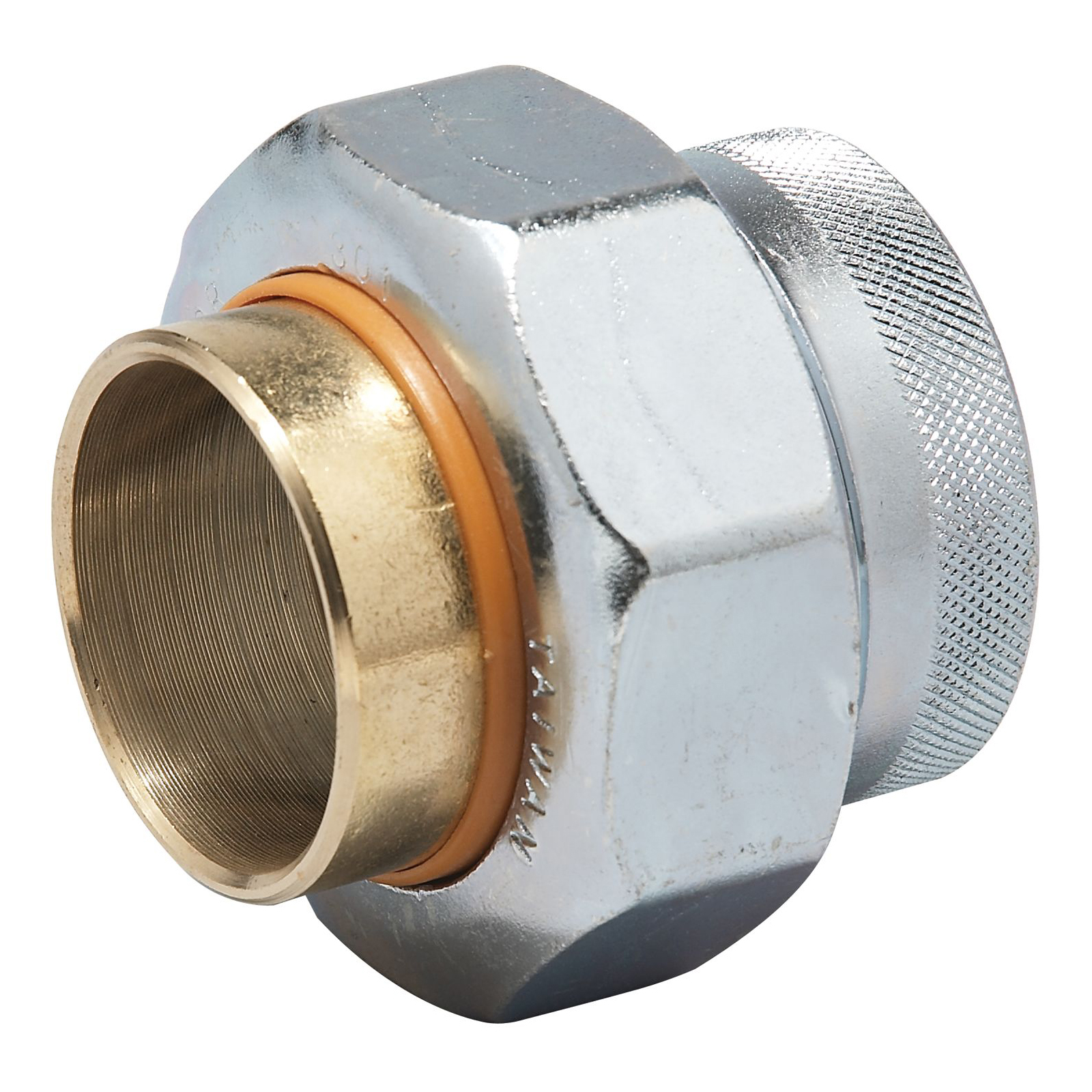

WATTS® 0009864 Dielectric Union, 1/2 in Nominal, FNPT x Solder End Style, Brass, Domestic
CBPN:25567
UPC:098268430196
MPN:0009864
DESCRIPTION
WATTS® Dielectric Union, 1/2 in Nominal, FNPT x Solder, 1-1/2 in Hex, 1-7/8 in Length, 250 psi, Brass, 180 deg F, Domestic
Series LF3001A Lead Free Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female iron pipe thread to solder connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3001A is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping.
WATTS® 0009864 Dielectric Union, 1/2 in Nominal, FNPT x Solder End Style, Brass, Domestic
CBPN:25567
MPN:0009864
UPC:098268430196
DESCRIPTION
WATTS® Dielectric Union, 1/2 in Nominal, FNPT x Solder, 1-1/2 in Hex, 1-7/8 in Length, 250 psi, Brass, 180 deg F, Domestic
Series LF3001A Lead Free Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female iron pipe thread to solder connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3001A is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping.
Specifications
Item Features
- Meets federal specifications for tensile strength and thread end connections
- Female iron pipe thread to solder connection
- Designed and manufactured to the highest quality standards
- Factory certified to withstand a minimum of 600 V on a dry line with no flashover
- Steel adapter and nut
- Polysulfone insulator
- Buna-N gasket
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
