WATTS® 0009309

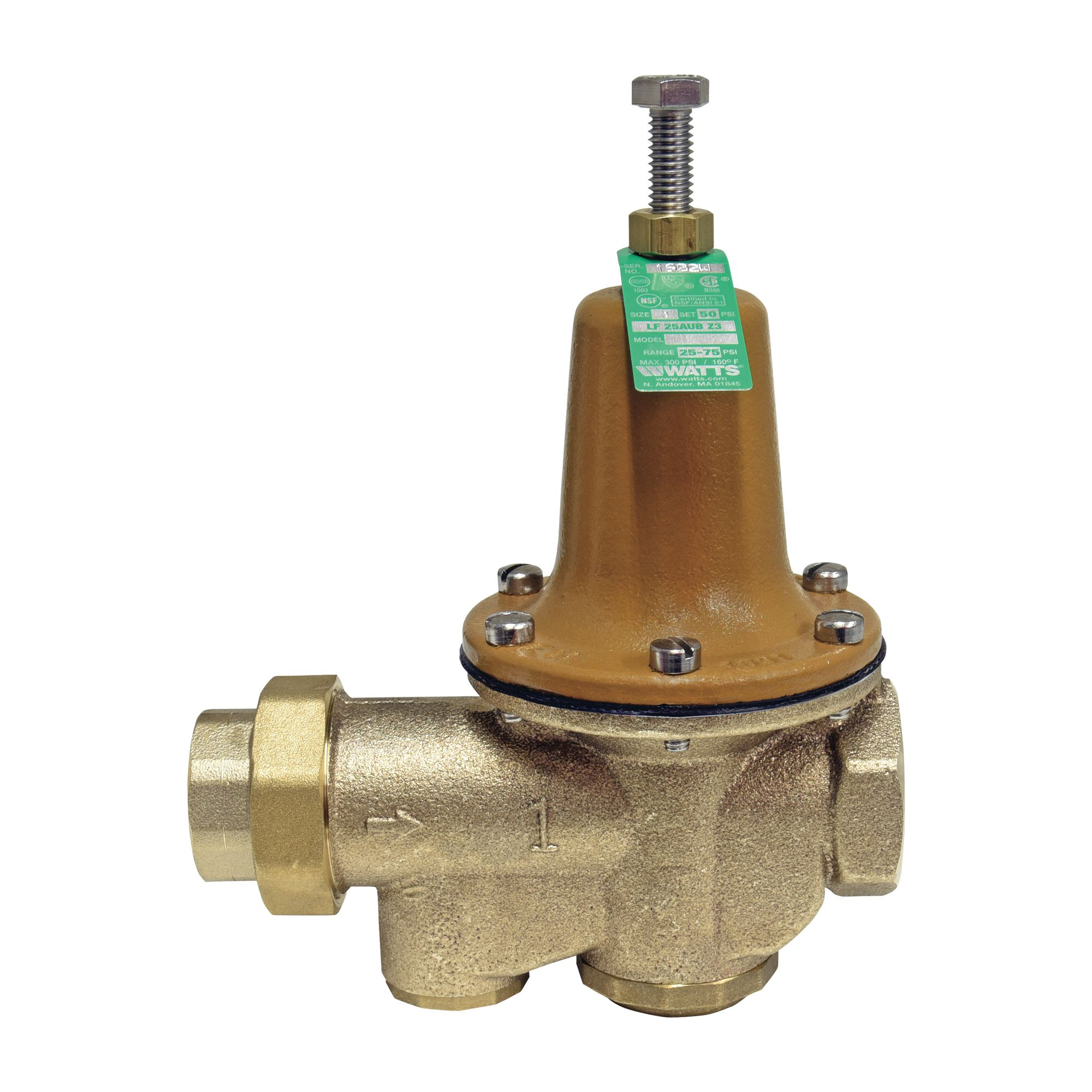

WATTS® 0009309 LF25AUB-Z3 Pressure Reducing Valve, 1 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Domestic

CBPN:179922

UPC:098268330427

MPN:0009309

Price:
$802.50 / EA
Prop 65:

DESCRIPTION

WATTS® Pressure Reducing Valve, Series: LF25AUB-Z3, 1 in Nominal, FNPT Union x FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 8-3/4 in Inlet to Outlet Length, 9 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm/Polymer Seat, Domestic

Series LF25AUB-Z3 Lead Free Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free copper silicon alloy body construction, union inlet connection, integral stainless steel strainer and high temperature resistant reinforced diaphragm for hot water. The Series LF25AUB-Z3 is available with a variety of end connections including: threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Series LF25AUB-Z3 has an adjustable pressure range and is serviceable in-line.

WATTS® 0009309 LF25AUB-Z3 Pressure Reducing Valve, 1 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Domestic

CBPN:179922

MPN:0009309

UPC:098268330427

Price:
$802.50 / EA

Prop 65:

Watts logo

DESCRIPTION

WATTS® Pressure Reducing Valve, Series: LF25AUB-Z3, 1 in Nominal, FNPT Union x FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 8-3/4 in Inlet to Outlet Length, 9 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm/Polymer Seat, Domestic

Series LF25AUB-Z3 Lead Free Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free copper silicon alloy body construction, union inlet connection, integral stainless steel strainer and high temperature resistant reinforced diaphragm for hot water. The Series LF25AUB-Z3 is available with a variety of end connections including: threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Series LF25AUB-Z3 has an adjustable pressure range and is serviceable in-line.

Specifications

Brand: WATTS®
Weight: 6.5 lbs
Nominal Size: 1 in
End Style: FNPT Union x FNPT
Pressure Range: 25 to 75 psi
Body Material: Cast Copper Silicon Alloy
Inlet to Outlet Length: 8-3/4 in
Manufacturer Name: Watts Water Technologies
Media: Water
Series: LF25AUB-Z3
Softgoods Material: Reinforced EPDM Diaphragm/Polymer Seat
Temperature Rating: 33 to 160 deg F
Top to Inlet Center: 9 in
Application: Commercial and Residential
Warranty: 1 year Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI A112.26.2 | ASSE Standard 1003 | CSA Standard B356 | IAPMO Listed | MIL-V-18146B Type I | NSF Approved | Southern Standard Plumbing Code | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Item Features

  • Suitable for up to 300 psi
  • Designed to reduce incoming water pressure to protect plumbing systems
  • Designed to reduce water consumption for commercial, industrial and residential applications
  • Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting and cage screws for accessible outdoor or pit installations
  • Union inlet connection
  • Integral stainless steel strainer
  • Replaceable seat module
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • High temperature resistant reinforced diaphragm for hot water
  • 50 psi (345 kPa) standard pressure setting
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
