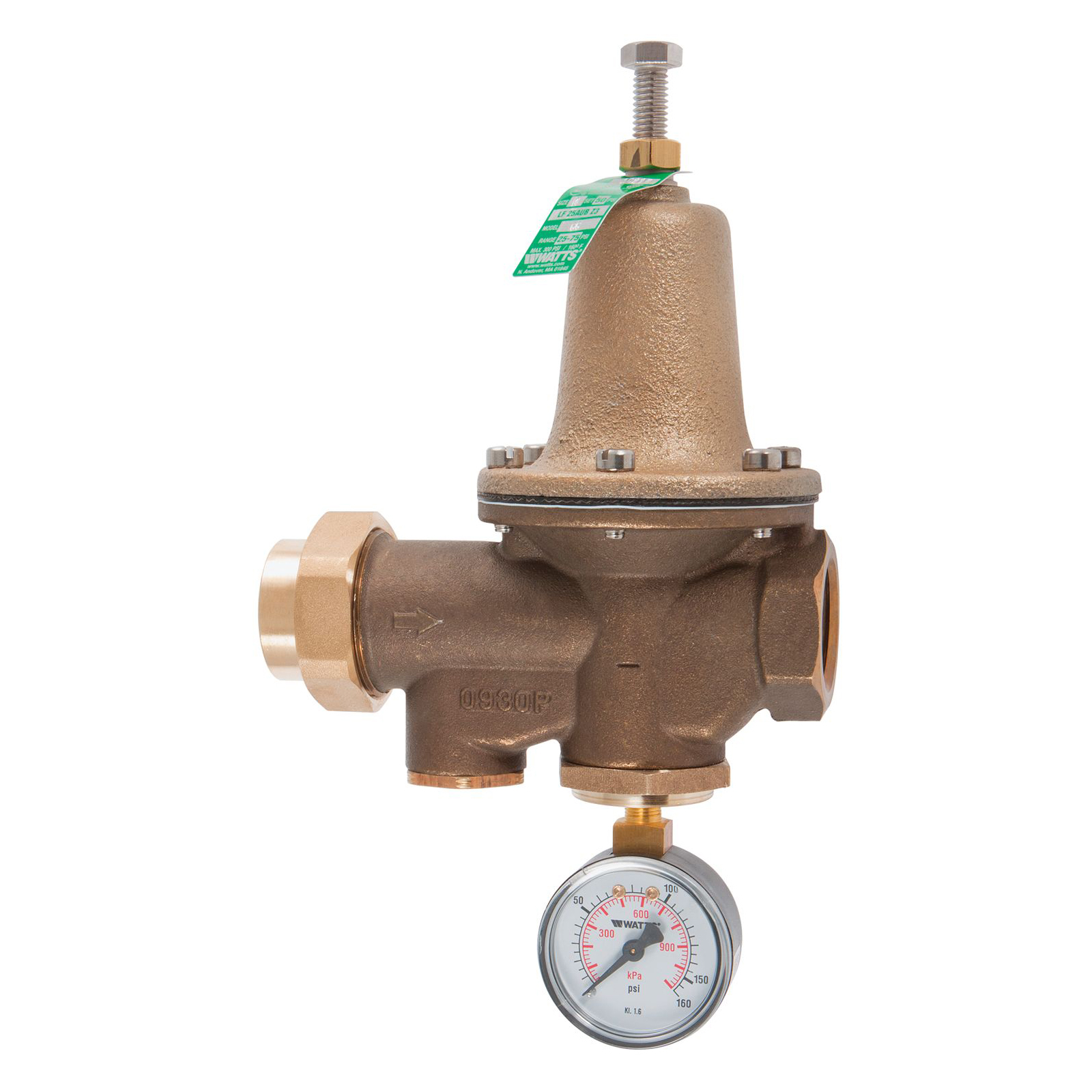

WATTS® 0009231 LF25AUB-GG-Z3 Standard Capacity Pressure Reducing Valve, 1/2 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Copper Silicon Alloy Body, Domestic
CBPN:256663
UPC:098268329353
MPN:0009231
DESCRIPTION
WATTS® Pressure Reducing Valve, Standard Capacity, Series: LF25AUB-GG-Z3, 1/2 in Nominal, FNPT Union x FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, Copper Silicon Alloy Body, EPDM Trim, EPDM Diaphragm, 7 in H, Domestic
This 1/2 in lead free cast copper silicon water pressure reducing valve is equipped with gauge tapping and a 160 psi gauge. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, FNPT union inlet by FNPT outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 deg F. Suitable for up to 300 psi, the pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi.
WATTS® 0009231 LF25AUB-GG-Z3 Standard Capacity Pressure Reducing Valve, 1/2 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Copper Silicon Alloy Body, Domestic
CBPN:256663
MPN:0009231
UPC:098268329353
DESCRIPTION
WATTS® Pressure Reducing Valve, Standard Capacity, Series: LF25AUB-GG-Z3, 1/2 in Nominal, FNPT Union x FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, Copper Silicon Alloy Body, EPDM Trim, EPDM Diaphragm, 7 in H, Domestic
This 1/2 in lead free cast copper silicon water pressure reducing valve is equipped with gauge tapping and a 160 psi gauge. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, FNPT union inlet by FNPT outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 deg F. Suitable for up to 300 psi, the pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi.
Specifications
Item Features
- Serviceable in line
- A water saving test program concluded that reducing the supply pressure from 80 to 50 psi resulted in a water savings of 30%
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
- Industry-trusted design with proven track record for longevity, reliability and flow performance
- The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi
- GG: Gauge tapping and 160 psi gauge
- Sealed spring cage with stainless steel cage screws
- 50 psi standard reduced pressure
