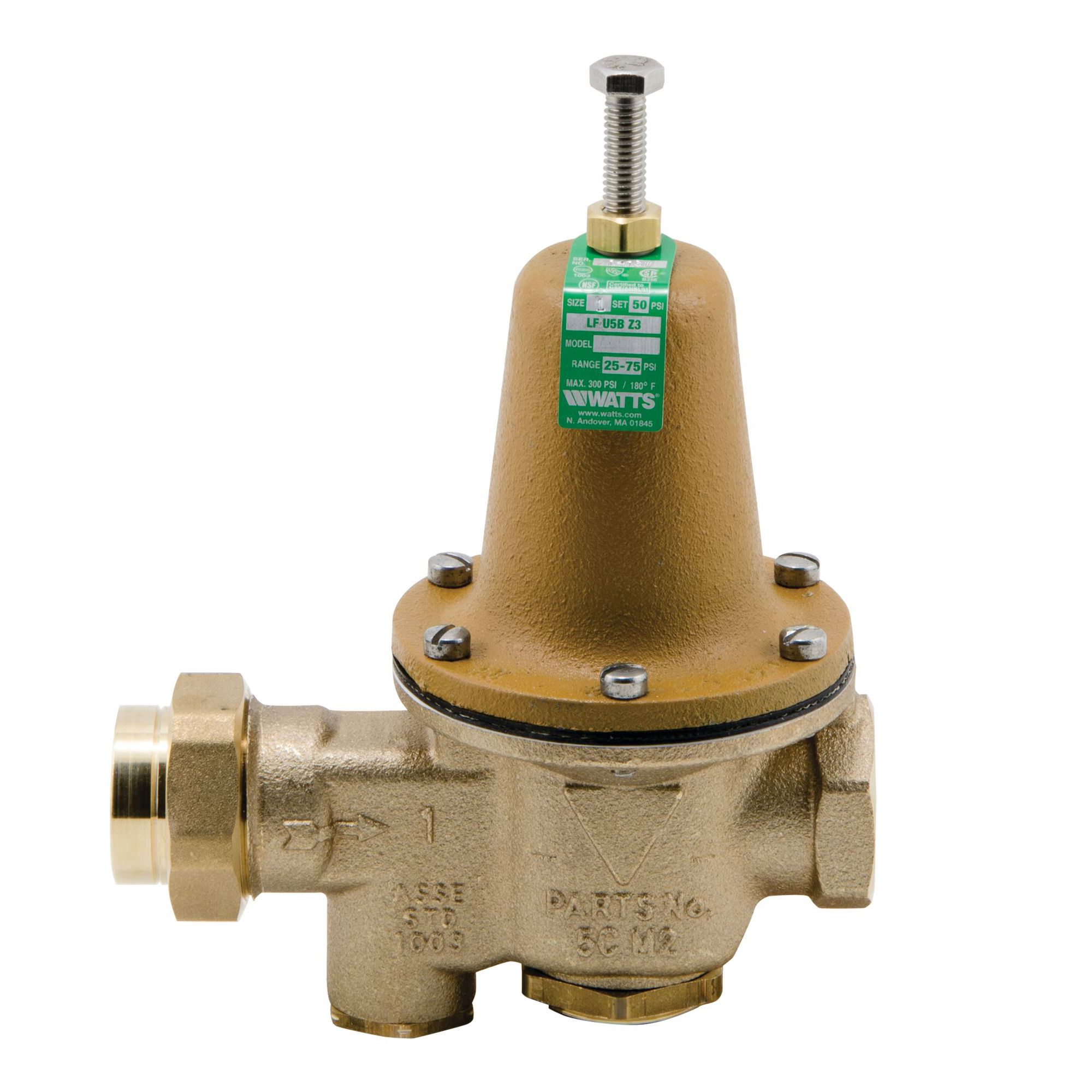

WATTS® 0009118 LFU5B-Z3 High Performance Pressure Reducing Valve, 3/4 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Domestic
CBPN:176006
UPC:098268327533
MPN:0009118
DESCRIPTION
WATTS® Pressure Reducing Valve, High Performance, Series: LFU5B-Z3, 3/4 in Nominal, FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 6-3/16 in Inlet to Outlet Length, 6-7/8 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm, Domestic
Series LFU5B-Z3 Lead Free High Performance Water Pressure Reducing Valves are used in commercial, industrial, and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free cast copper silicon alloy body construction, integral stainless steel strainer replaceable seat module and optional thermal expansion bypass. Available with threaded, solder or quick-connect end connections.
WATTS® 0009118 LFU5B-Z3 High Performance Pressure Reducing Valve, 3/4 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Domestic
CBPN:176006
MPN:0009118
UPC:098268327533
DESCRIPTION
WATTS® Pressure Reducing Valve, High Performance, Series: LFU5B-Z3, 3/4 in Nominal, FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 6-3/16 in Inlet to Outlet Length, 6-7/8 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm, Domestic
Series LFU5B-Z3 Lead Free High Performance Water Pressure Reducing Valves are used in commercial, industrial, and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free cast copper silicon alloy body construction, integral stainless steel strainer replaceable seat module and optional thermal expansion bypass. Available with threaded, solder or quick-connect end connections.
Specifications
Item Features
- Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting and cage screws for accessible outdoor or pit installations
- Integral stainless steel strainer
- Replaceable seat module
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
- 25 to 75 psi adjustable reduced pressure range
- 50 psi (345 kPa) standard pressure setting
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
