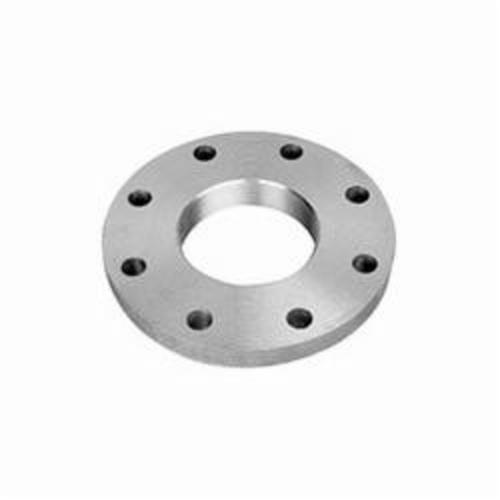

Ward Mfg 3X7D.BCF Companion Flange, 3 in Nominal, Cast Iron, FNPT Connection, 125 lb, Domestic
CBPN:2844
UPC:662467090309
MPN:3X7D.BCF
Price:
$77.06 / EA
DESCRIPTION
Ward Mfg Companion Flange, 3 in Nominal, 3/4 in Thickness, 6 in Bolt Circle, 4 Bolt Holes, 3/4 in, FNPT, 7-1/2 in Outside Dia, 175 psi, 125 lb, SCH 40/STD, -20 to 150 deg F, 4-1/4 in Hub Dia, Cast Iron, Black Oxide, 1.19 in L, Domestic
Ward Mfg 3X7D.BCF Companion Flange, 3 in Nominal, Cast Iron, FNPT Connection, 125 lb, Domestic
CBPN:2844
MPN:3X7D.BCF
UPC:662467090309
Price:
$77.06 / EA
DESCRIPTION
Ward Mfg Companion Flange, 3 in Nominal, 3/4 in Thickness, 6 in Bolt Circle, 4 Bolt Holes, 3/4 in, FNPT, 7-1/2 in Outside Dia, 175 psi, 125 lb, SCH 40/STD, -20 to 150 deg F, 4-1/4 in Hub Dia, Cast Iron, Black Oxide, 1.19 in L, Domestic
Specifications
Brand: Ward Mfg
Weight: 7.64 lbs
Nominal Size: 3 in
Material: Cast Iron
Connection Type: FNPT
Pressure Class: 125 lb
Bolt Circle Diameter: 6 in
Bolt Hole Size: 3/4 in
Dimensions: 1.19 in L
Finish: Black Oxide
Hub Diameter: 4-1/4 in
Manufacturer Name: Ward Manufacturing
Number of Bolt Holes: 4
Outside Diameter: 7-1/2 in
Pressure Rating: 175 psi
Schedule Rating: SCH 40/STD
Temperature Rating: -20 to 150 deg F
Thickness: 3/4 in
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI B16.1/B1.20.1 | ASTM A126/A153 | FM Approved | NSF 61-G | UL/ULC Listed | WW F521
Item Features
- Accurate form, length and straightness on threads for easy engagement
- Chamfered openings for fast, easy engagement and assembly
- Precision machining
- Rust-resistant coating
