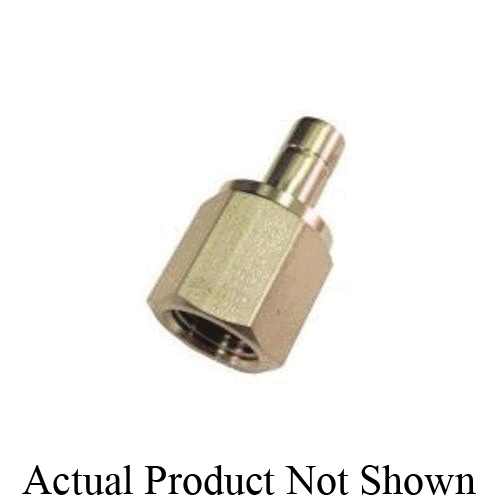

Tylok® CBC-Lok® SS-6-DATPF-4 DATPF Double Ferrule Adapter, 3/8 x 1/4 in, Tube x FNPT, 316 Stainless Steel, Domestic
CBPN:187047
UPC:811731023431
MPN:SS-6-DATPF-4
DESCRIPTION
Tylok® CBC-Lok® Adapter, Double Ferrule, Series: DATPF, Fitting/Connector Type: Adapter, 3/8 x 1/4 in Nominal Size, Tube x FNPT, 3/4 in Hex, 1.547 in Length, 316 Stainless Steel, Domestic
CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.
Tylok® CBC-Lok® SS-6-DATPF-4 DATPF Double Ferrule Adapter, 3/8 x 1/4 in, Tube x FNPT, 316 Stainless Steel, Domestic
CBPN:187047
MPN:SS-6-DATPF-4
UPC:811731023431
DESCRIPTION
Tylok® CBC-Lok® Adapter, Double Ferrule, Series: DATPF, Fitting/Connector Type: Adapter, 3/8 x 1/4 in Nominal Size, Tube x FNPT, 3/4 in Hex, 1.547 in Length, 316 Stainless Steel, Domestic
CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.
Specifications
Item Features
- Double ferrule swaging action
- Total component interchangeability
- Heat code traceable
- ASTM material construction
- 1/4-18 NPT pipe thread
- 90 Rb hardness
- Interchanges with 6-TA-7-4 and 6FA4N
