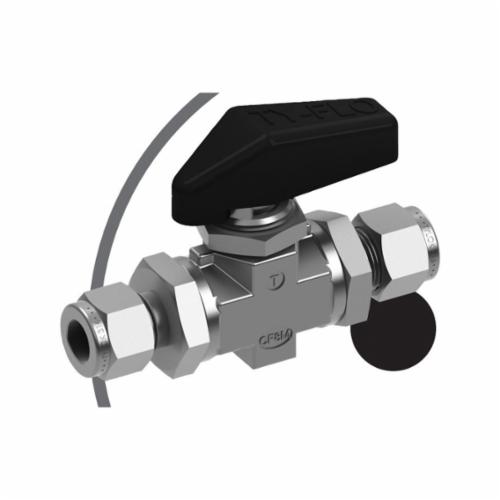

Tylok® Ty-Flo® SS-6-D-TT-6-6-K HP Series Ball Valve, 3/8 in Nominal, CBC-Lok® Tube End Style, 316 Stainless Steel Body, FKM Softgoods
CBPN:133856
UPC:811731025596
MPN:SS-6-D-TT-6-6-K
Price:
$115.16 / EA
DESCRIPTION
Tylok® Ty-Flo® Ball Valve, Series: HP Series, 3/8 in Nominal, CBC-Lok® Tube, 5000 psi, -15 to 300 deg F, 1/4 in Orifice, Handle Actuator, 1.69 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Stem/PCTFE Trim, FKM
Ty-Flo® HP series ball valves are ordered as listed in this catalog by inserting the material code before the part number. Ty-Flo® HP series ball valves can be identified through the part number as to material, valve series, style, valve configurations, port size, and seat material.
Tylok® Ty-Flo® SS-6-D-TT-6-6-K HP Series Ball Valve, 3/8 in Nominal, CBC-Lok® Tube End Style, 316 Stainless Steel Body, FKM Softgoods
CBPN:133856
MPN:SS-6-D-TT-6-6-K
UPC:811731025596
Price:
$115.16 / EA
DESCRIPTION
Tylok® Ty-Flo® Ball Valve, Series: HP Series, 3/8 in Nominal, CBC-Lok® Tube, 5000 psi, -15 to 300 deg F, 1/4 in Orifice, Handle Actuator, 1.69 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Stem/PCTFE Trim, FKM
Ty-Flo® HP series ball valves are ordered as listed in this catalog by inserting the material code before the part number. Ty-Flo® HP series ball valves can be identified through the part number as to material, valve series, style, valve configurations, port size, and seat material.
Specifications
Brand: Tylok®
Weight: 0.55 lbs
Nominal Size: 3/8 in
End Style: CBC-Lok® Tube
Body Material: Stainless Steel
Softgoods Material: FKM
Actuator Type: Handle
Manufacturer Name: Tylok International
Orifice Size: 1/4 in
Pressure Rating: 5000 psi
Series: HP Series
Temperature Rating: -15 to 300 deg F
Top to Inlet Center: 1.69 in
Trim Material: 316 Stainless Steel Stem/PCTFE
Warranty: 1 year Limited
Country of Origin: US
Standards and Approvals: ASME B16.34 Compliant
Item Features
- Reliable, simple operation for on-off service
- Fast acting, one quarter-turn fully opens or closes the valve
- Maximum performance, straight through flow for minimum turbulence and pressure drop
- Positive leak tight shut-off, even with fluctuating pressures
- Panel mounting capabilities standard
- Bi-directional flow
- Micro finished ball provides positive seal
- Free floating ball design compensates for seat wear
- CBC-Lok® double ferrule tube ends are completely interchangeable with Swagelok® and Parker A-Lok® tube ends
- FKM stem O-ring
- 316 stainless steel stem/PCTFE seat
